Product Description

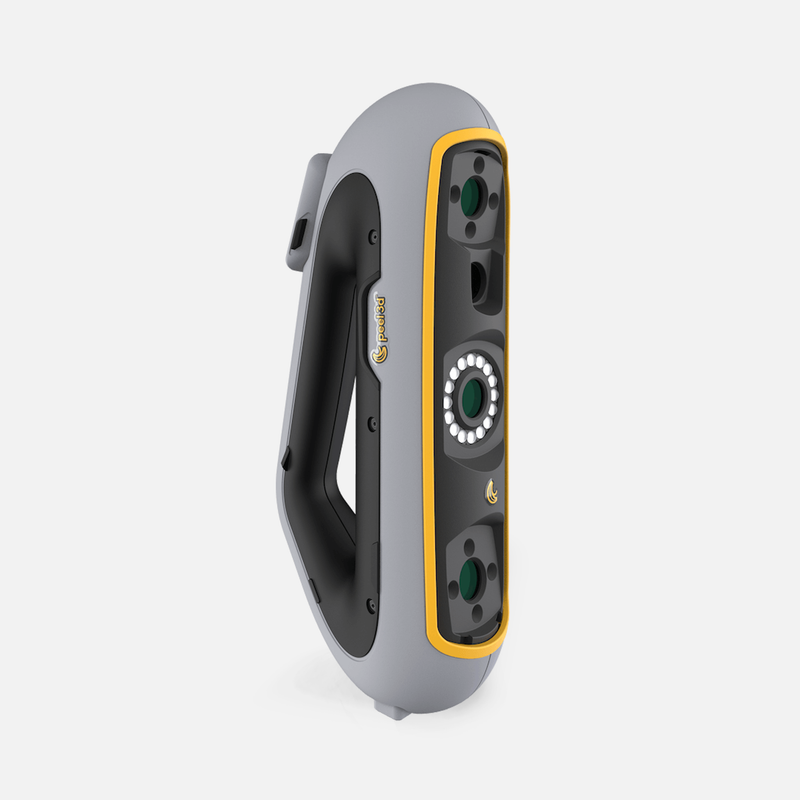

The Creaform Peel 3 is a portable, professional-grade 3D scanner that delivers up to 0.05 mm accuracy and a resolution of 0.250 mm. It produces highly-accurate, detailed scans and can be used for everything from industrial design to museum-quality artifact preservation.

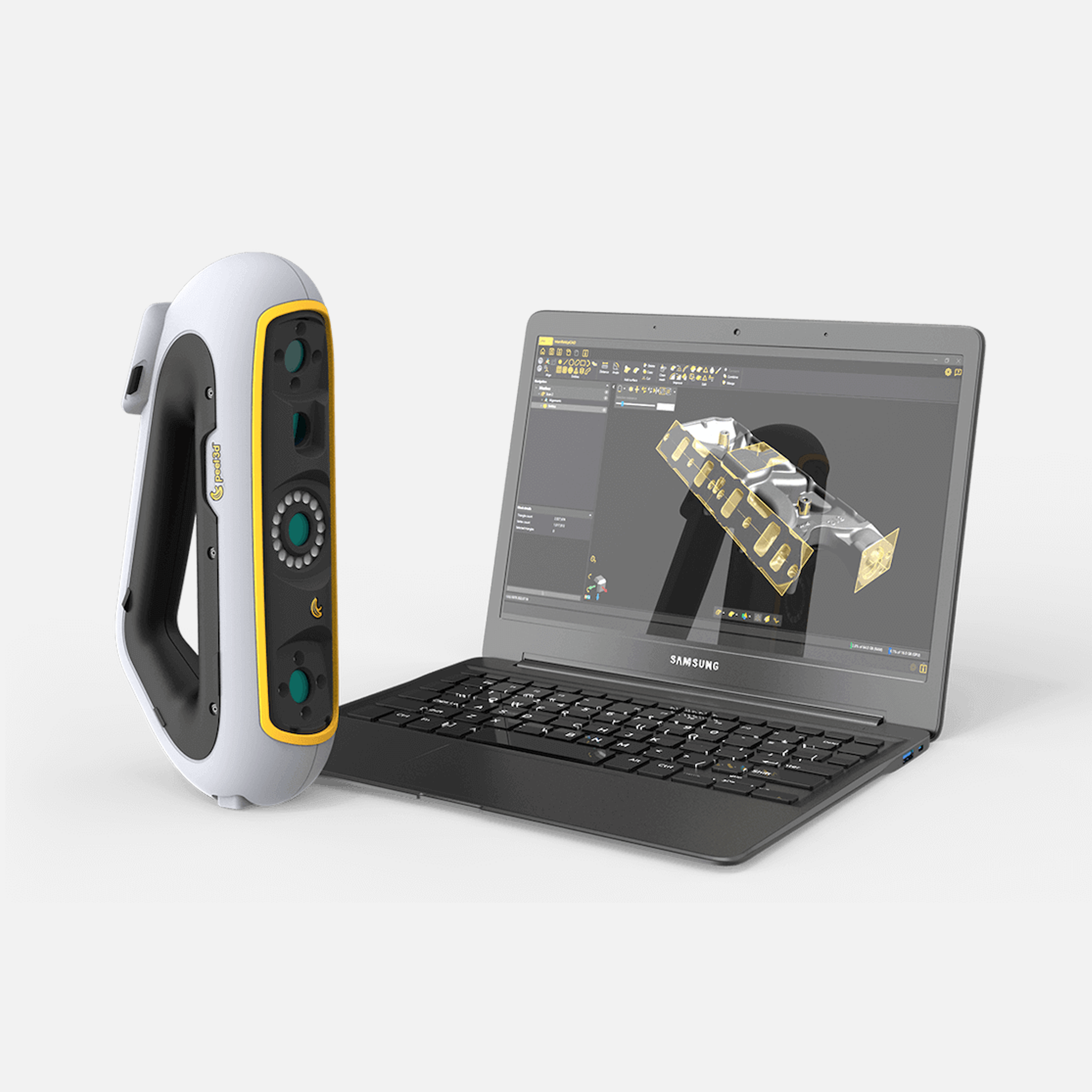

Each scanner comes with Creaform's easy-to-use Peel.OS software. Supporting a variety of file types, it's easy to transfer 3D data into your favorite CAD or modeling program. Every Peel 3 Scanner also includes a power supply, 4 m USB cable, starter package of positioning targets, and foam insert light-duty carrying case

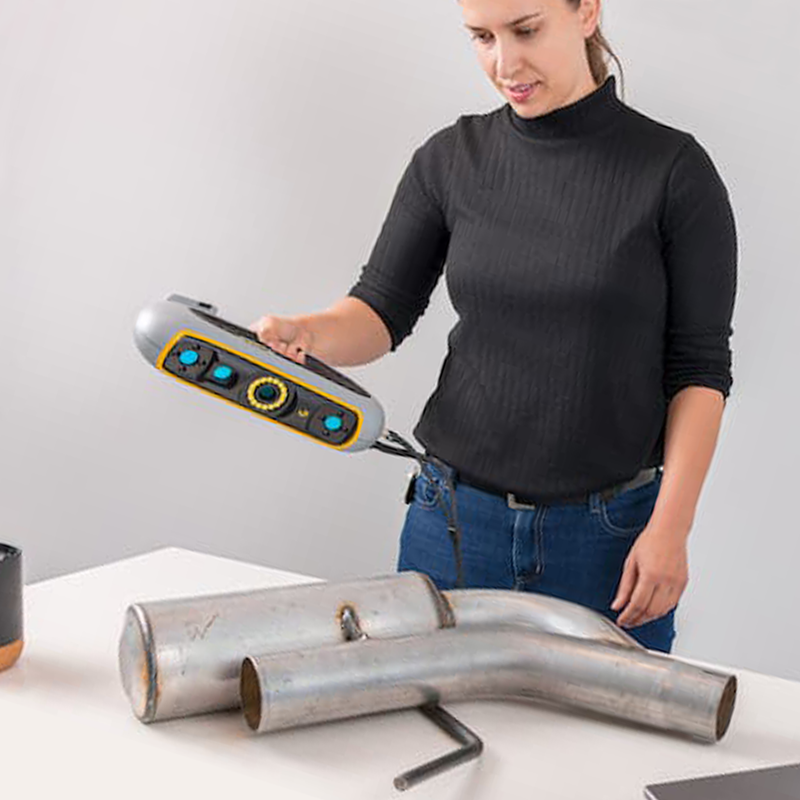

Lightweight (under 1 kg) and engineered with a comfortable grip and touchscreen, it’s perfect for scanning on the go or in tight spaces. The Peel 3's price point makes high-performance 3D scanning accessible to engineers, educators, and digital creators alike.

Which Package is Right for You?

• Peel 3 Package
  For heritage preservation and art, AR/VR content creation, and healthcare applications
• Peel 3.CAD Package
  For reverse-engineering 3D scan files to CAD software
• Peel 3 Pro.CAD Package
  For quickly reverse-engineering CAD-ready models with integrated scan-to-CAD software

Features

• Triangulated multi-grip handle is designed for ergonomics and comfort

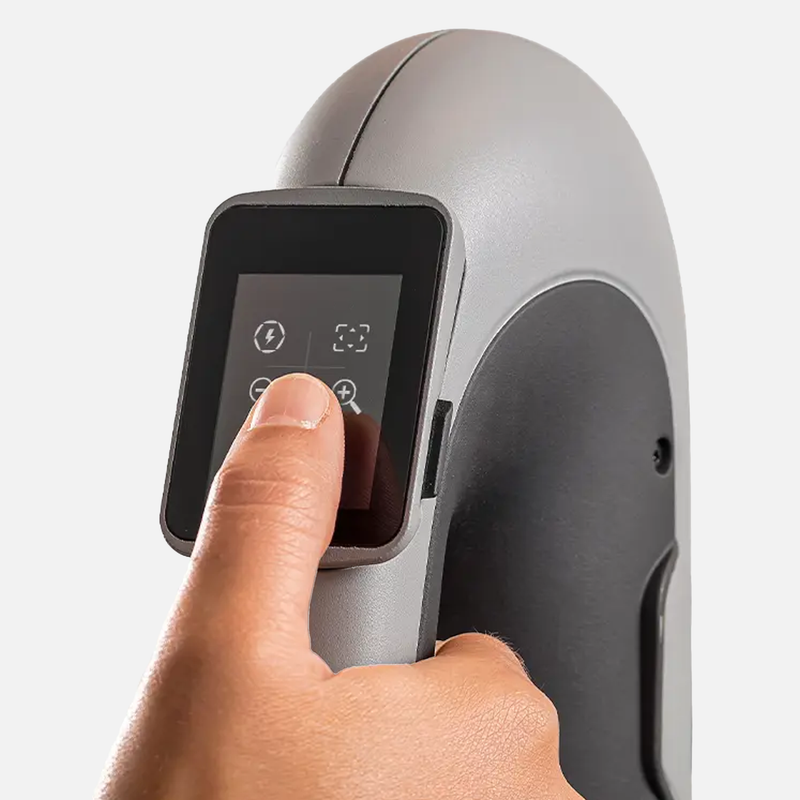

• LCD screen with multi-function touchscreen and distance meter
• Haptic feedback with distinctive vibration patterns guides you while scanning tight or hard-to-see areas
• Backed by Creaform and AMETEK metrology technologies
• Designed and manufactured in North America

Details

• Accuracy: up to 0.050 mm (0.0020 in)
• Volumetric Accuracy: 0.050 mm + 0.100 mm/m (0.0020 in + 0.0012 in/ft)
• Mesh Resolution: 0.250 mm (0.01 in)
• Scanning Area: 340 x 475 mm (13.39 x 18.7 in)
• Measurement Rate: 1,250,000 measurements/s
• Depth of Field: 300 mm (11.8 in)

Specifications

Compatibility and Software

• Compatible with Windows 10 and up
• Output Formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf, .3mf, .iges, .step
• Peel.OS 3D scanning software and free updates are included with all Peel 3 packages.

Minimum Requirements

• Processor: Intel Core i7 (6+ cores) – 2.3 GHz or more
• Operating System: Windows 10 (64-bits)(4) or Windows 11 (64-bit)
• Graphics Card: NVIDIA (6 GB VRAM), OpenGL 4.5 and higher, CUDA Compute Capability 6.1
• Memory: 16 GB
• Hard Drive: Solid-state drive with at least 200 GB of free space
• Display: 1920 x 1080
• Connecting Ports: 1x USB 3.0+

Recommended Specifications

• Processor: Intel Core i7 (8 cores) – 2.5 GHz or more
• Operating System: Windows 10 (64-bits)(4) or Windows 11 (64-bit)
• Graphics Card: NVIDIA RTX 3070 (8GB VRAM), OpenGL 4.5 and higher
• Memory: 32 GB
• Hard Drive: Solid-state drive with at least 512 GB of free space
• Display: 1920 x 1080
• Connecting Ports: 2x USB 3.0+

Warranty and Service

One-year warranty and free Peel.OS software updates included.
