Product Description

Print biocompatible polyamide parts with high-strength, high-impact Nylon 11 Powder. This robust and ductile material is an excellent choice for a wide range of high-performance prototypes and end-use parts. Nylon 11 has a smooth surface finish, and is tough and incredibly flexible compared to other nylons – able to bend without breaking. This material is perfect for parts that need to endure mechanical stress and wear, from clips and snaps to medical orthotics and prosthetics.

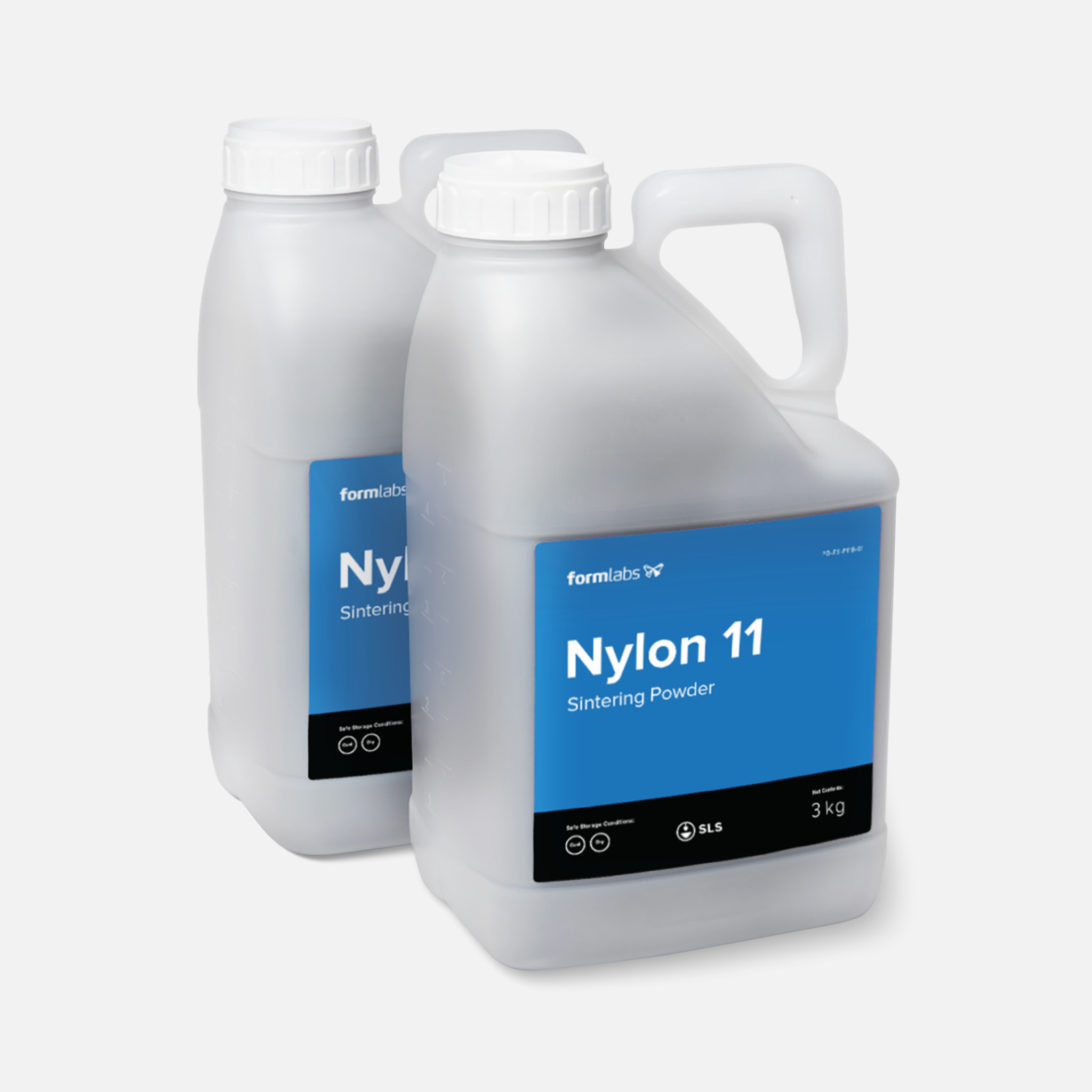

Powder Color: Dark Gray

Refresh Rate: Print with up to 70% recycled powder to get the most out of your material.

For Best Results: Print with the Fuse 1+ using inert atmospheric control.

Please Note: Parts printed with Nylon 11 require some post-processing, including cleaning off excess powder. Heat treatment is necessary if further strengthening is desired.

Compatibility

Atmosphere: Inert Nitrogen or Air*

Biocompatibility: Certified Biocompatible

Compatible 3D Printers:

• Formlabs Fuse 1
• Formlabs Fuse 1+**

* Printing in air is possible but will compromise material properties, resulting in a faster rate of powder degradation.
** Formlabs strongly recommends printing Nylon 11 Powder on a Fuse 1+ printer with an inert atmosphere.

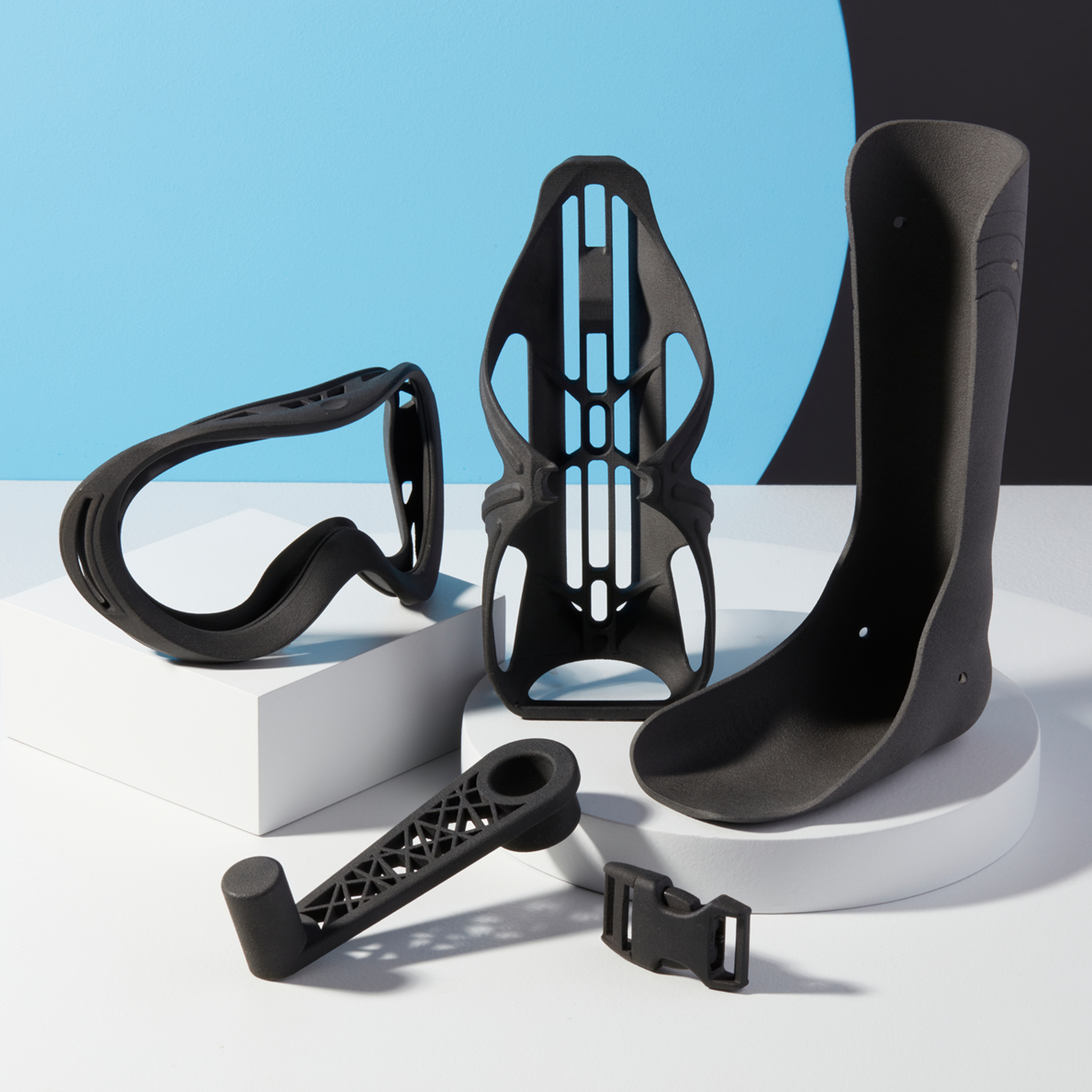

Possible Applications

Engineering, Medical

• Impact-resistant components
• Orthotics and prosthetics
• Pliable mechanical connectors
• Shock-absorbing bumpers
• Noise-dampening components

Mechanical Properties

• Ultimate Tensile Strength: 49.0 MPa (7106.8 psi)
• Tensile Modulus: 160.0 MPa (8702.2 psi)
• Elongation at Break: 40.0%
• Flexural Strength: 55.0 MPa (7977.0 psi)
• Flexural Modulus: 140.0 MPa (20305.3 psi)
• Notched Izod: 71 J/m (1.3 ft-lb/in)
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 182.0°C (359.6°F)
• Heat Deflection Temp. at 1.8 MPa (261.0 psi): 46.0°C (114.8°F)
• Vicat Softening Temperature: 189.0°C (372.2°F)
• Moisture Content (Powder): 0.37%
• Moisture Content (Printed Part): 0.07%

Technical Data Sheet:

Download Nylon 11 Powder Data Sheet
