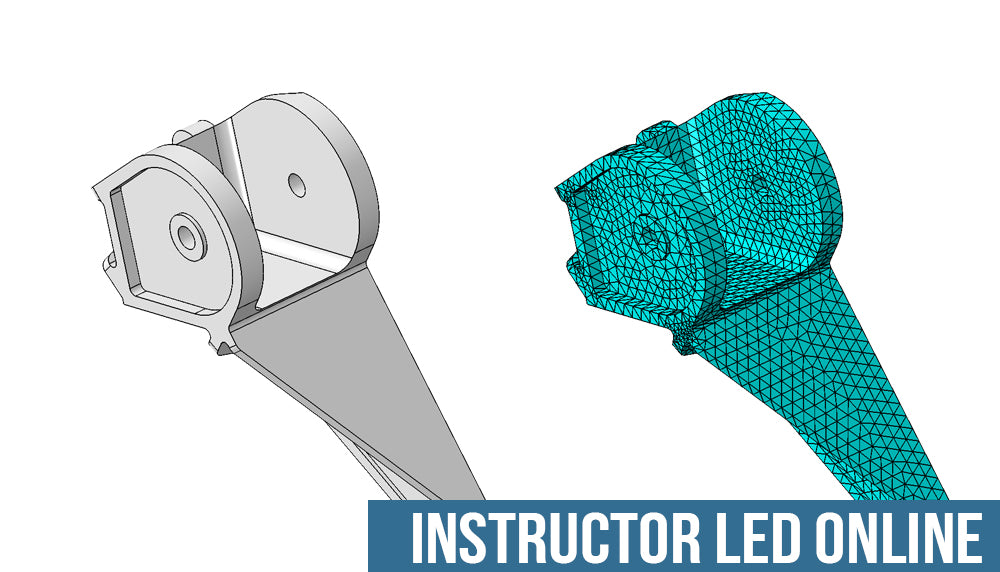

Abaqus: Geometry Import and Meshing - Instructor Led Online Training
299500
Abaqus: Geometry Import and Meshing - Instructor Led Online Training
299500
Length: 4 days
11am-3pm CST
Prerequisites: This course is recommended for users with a basic knowledge of Abaqus/CAE who wish to become more proficient with the product.
Description: Real-world engineering commonly involves the analysis and design of complicated geometry. These types of analysis depend critically on having a modeling tool with a robust geometry import capability in conjunction with advanced, easy-to-use mesh generation algorithms.
This course provides an in-depth look at several advanced Abaqus/CAE capabilities: CAD geometry import and repair, meshing and partitioning of complicated geometry. Both native and neutral geometry formats are discussed. An in-depth treatment of meshing techniques is also provided, including the use of virtual topology to ease the meshing of complicated geometry in the presence of small geometric features.
Topics covered in this course:
- Geometry Import and Repair
- Orphan and Native Meshes
- Meshing and Partitioning
- Bottom-Up Meshing
