Product Description

Length: 6 days
B BLOCK - 12pm-3pm CST
(A and C BLOCKS not available)

Prerequisites: Students attending this course are expected to have the following: CAMWorks® 2.5 axis training (SOLIDWORKS CAM Standard Training). CAMWorks® 3-axis Essentials. Experience with Surface Modelling inside of SOLIDWORKS Design Software. Experience with CNC Machining.

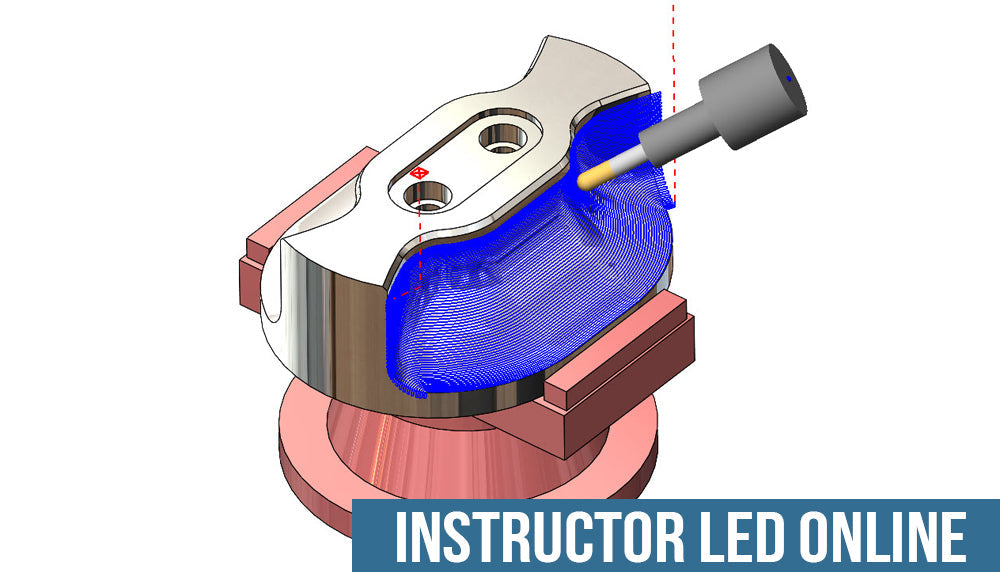

Description: This course is intended to teach individuals interactively how to create, review and edit Advanced 4- and 5-axis or simultaneous toolpaths using CAMWorks® for the machining of parts and assemblies as created in SOLIDWORKS (and CAMWorks® Solids).

Topics Covered in This Course:

• Introduction to CAMWorks® 4/5 Axis Programming
• 3+2 Axis Programming, 3 to 5 Axis Conversion, and Wrapped Features
• Multi surface
• Multi Axis Operation Parameters
• Multi-Axis Operations
• Multi-Axis Roughing
• Swarf Machining
• Axis Drilling
• 5-Axis Post-Processor Considerations
