Length: 3 days
11am-3pm CT

Prerequisites: Familiar with the Basics of Solids and Surfaces Creation and Knowledge

Description: This course will teach you how to create annotation planes in a CATPart and how to add and manage 3D annotation on these planes. You will also learn how to create 3D views in the CATPart and how to use them to create 2D views in a CATDrawing.

Topics Covered in This Course:

  • Introduction to FT&A
  • The Tolerancing Advisor
  • Exercises: Create and Manage 3D Annotations
  • Creating & Managing FTA Annotations
  • Exercises: Create Drawings and Manage Annotations
  • Exercises: Create Assembly Annotations
  • Geometry for 3D Annotations
  • Exercises: Modify Geometry and update Annotations
  • Exercises: Advanced FTA Functions
  • Advanced Functions
  • Exercises: Knowledge and 3D Annotations
  • The User Settings

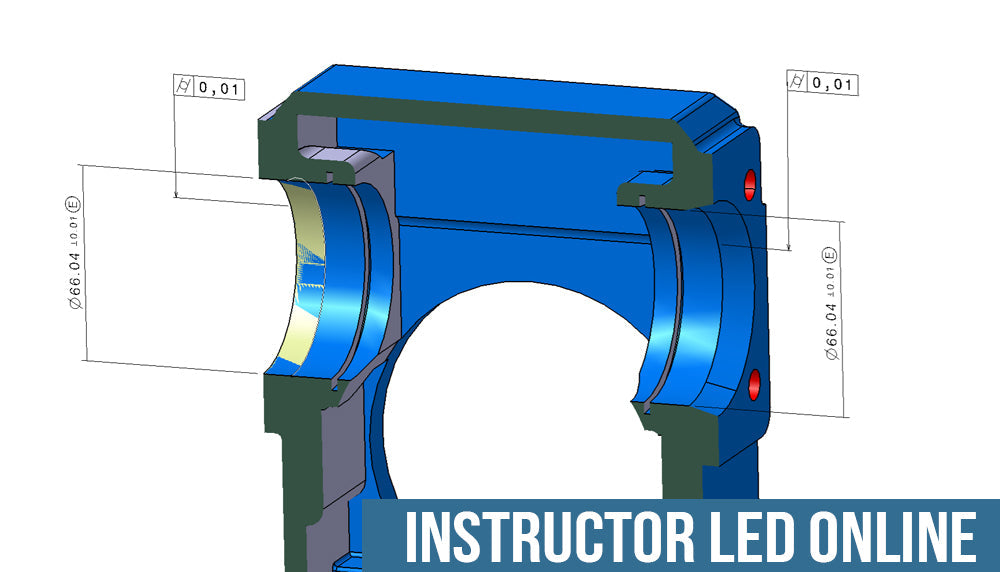

CATIA V5: 3D Functional Tolerancing & Annotation - Instructor-Led Online Training
