Product Description

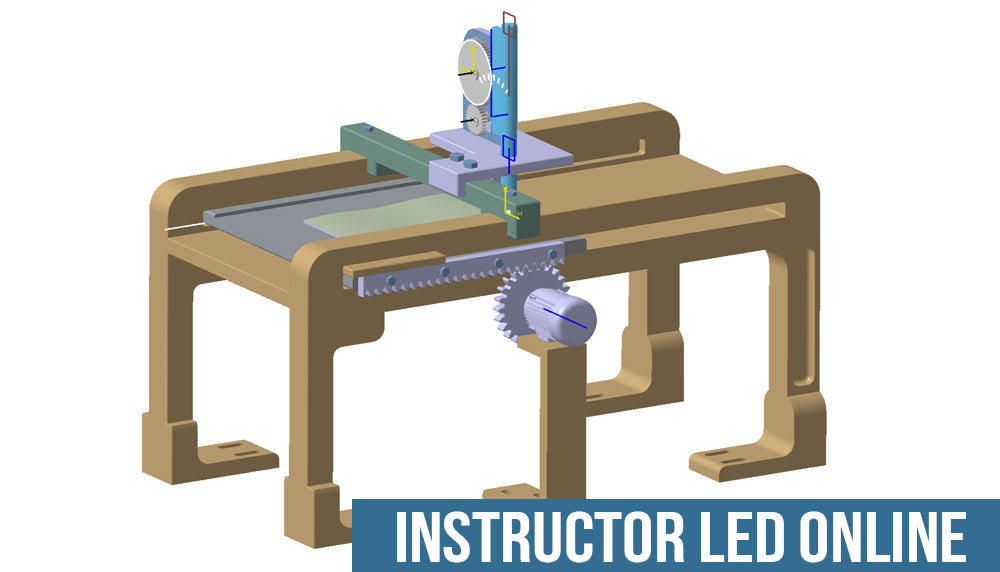

This course will teach you how to design mechanisms using an existing assembly. You will also learn how to simulate and analyze the mechanisms for clashes and perform kinematic analysis.

Course Length: 1 day
8am-5pm CT

Have questions? Click Here for Training FAQ

Prerequisites: Designers (CATIA® P2 users only)

Topics Covered in This Course:

• Course Requisites: DMU Kinematics Simulator
• Overview of DMU Kinematics
• Creating Joints
• Simulating Mechanisms
• Analyzing Movements
• Recording and Playing Simulations
• Miscellaneous Functionalities
• Master Exercise: Elliptical Trainer
