Length: 1 day
8am-5pm CST

Prerequisites: Knowledge of Catalog Editor, CATIA V5 Electrical Harness Installation and Assembly and Electrical Wire Routing.

Description: This course will teach you how to use the Electrical Harness Flattening workbench to extract, flatten and synchronize an electrical / geometrical harness. You will learn how to manipulate the flattened harness and how to define and generate a harness flattening report. You will also learn how to use text templates to create an annotated and dimensioned 2D drawing of a 3D harness.

    Topics covered in this course:

    1. Introduction to Electrical Harness Flattening
    2. Defining the Harness Flattening Parameters
    3. Extracting and Manipulating the Harness
    4. Synchronizing a Flattened Harness
    5. Generating Reports
    6. Mapping the Flattened Harness Views
    7. Creating Harness Drawings
    8. Creating Text Template Catalogs
    9. Replacing Graphic Representations
    10. Generating Annotations Automatically
    11. Exercises: Electrical Harness Flattening

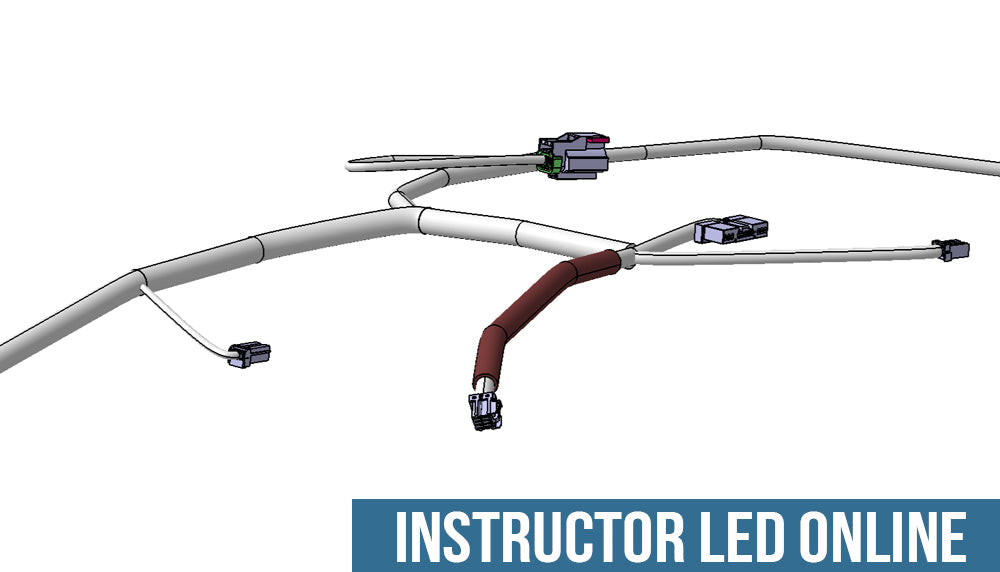

        CATIA V5: Electrical Harness Flattening - Instructor Led Online Training
