Product Description

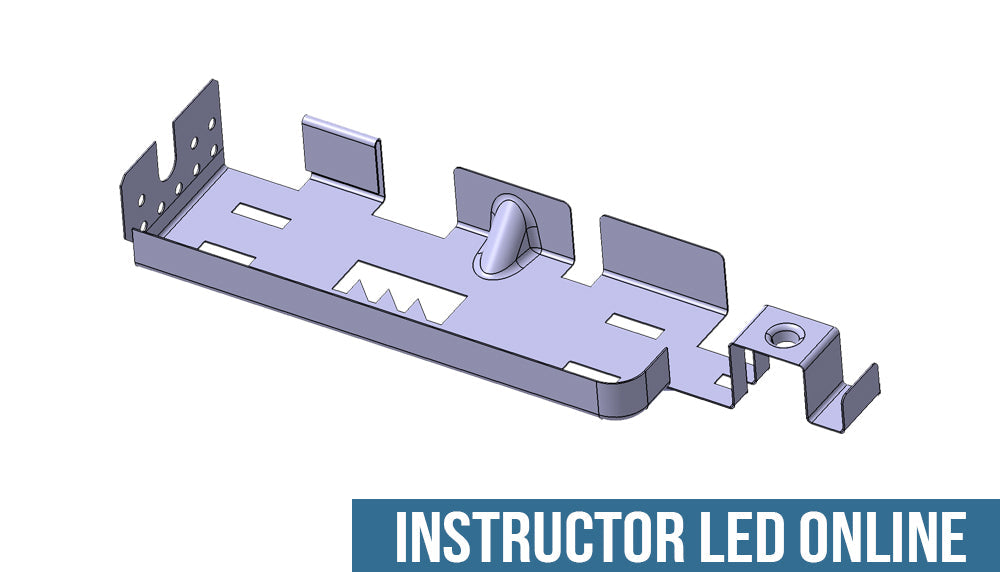

This course will teach you how to create a sheet metal part using the standard wall, bend and stamping features. You will view how user features can be incorporated into a design and how you can make use of both standard and user-defined materials. Finally, you will learn how to create a flat pattern and produce a detailed, annotated drawing.

Course Length: 4 days
11am-3pm CT

Have questions? Click Here for Training FAQ

Prerequisites: CATIA® V5 Fundamentals

Topics Covered in This Course:

• Getting Started
• Creating Sheetmetal Walls
• Creating Bends and Unfolded Mode
• Using Flanges
• Creating Sheet Metal Features
• Using Transformations and Duplication
• Mapping and Output
• Advanced Topics in Sheet Metal Design
• Convergence Problems: Materials
• Master Exercise: Create the Casing
