Please Note: This product is not available in Canada.

Product Description

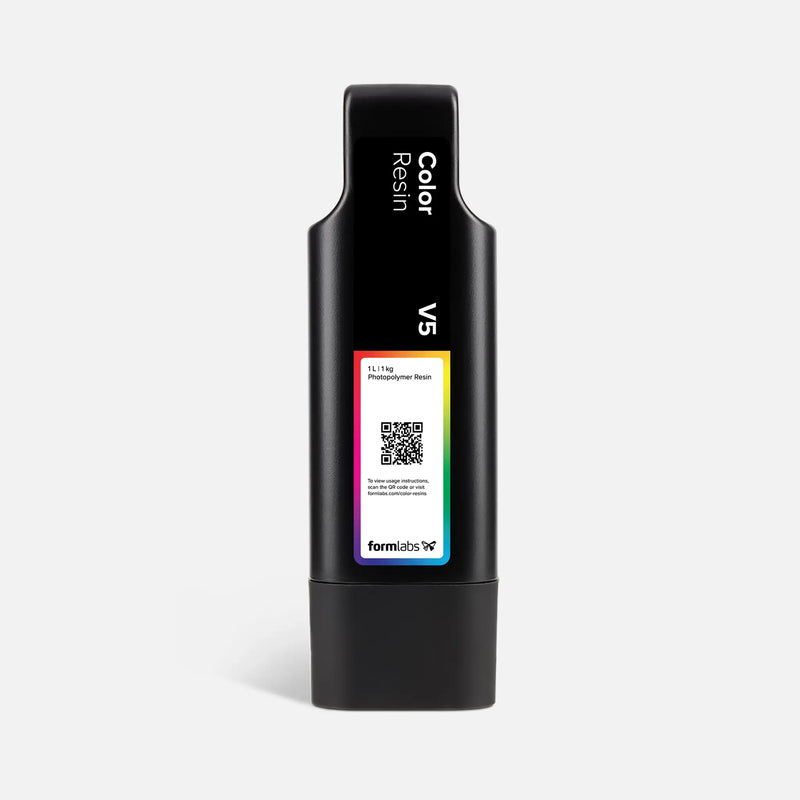

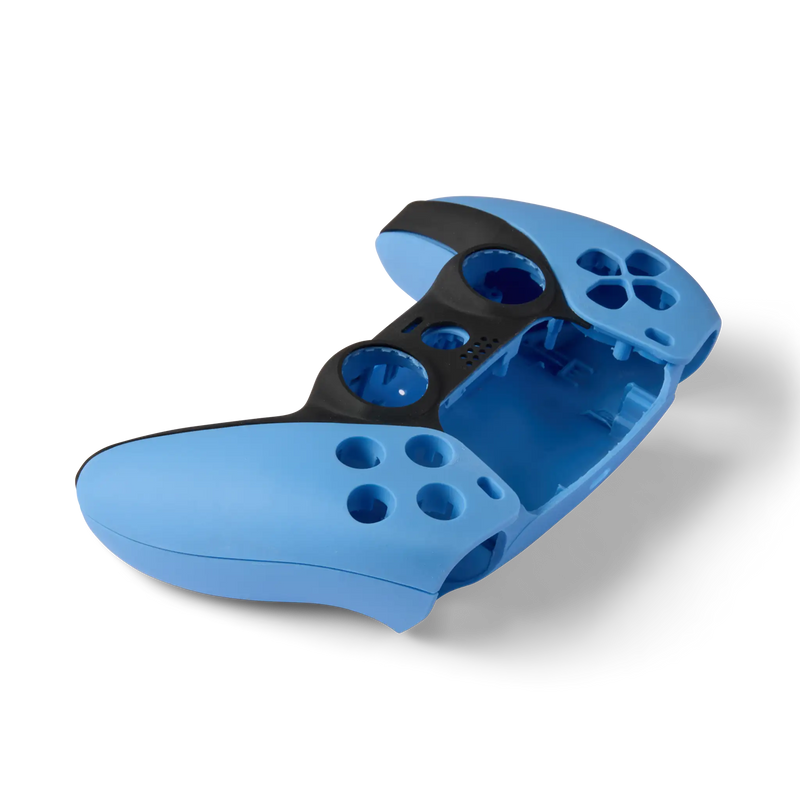

Formlabs Color Resin V5 is a general-purpose 3D printing material that gives you the power to create parts that look unmistakably yours. There’s no need for color mixing, painting, or coating. Each resin is formulated (and quality checked) to match the HEX or RGB color code of your choice. Try a few different colors across your assemblies to differentiate parts or match your branding. Whether you're making look-alike prototypes or end-use parts, the creative possibilities are almost endless.

Each custom color comes with optimized print settings to ensure consistent results from batch to batch. Formlabs Custom Resin V5 is available in a 1-liter volume and is compatible with the Form 4 Series of Formlabs SLA printers, including Form 4, Form 4B, Form 4L, and Form 4BL.

Resin Color: Customized Just for You!

Please Note: These colorways are approximate, and their on-screen appearance may vary depending on your device or monitor.

Key Features:

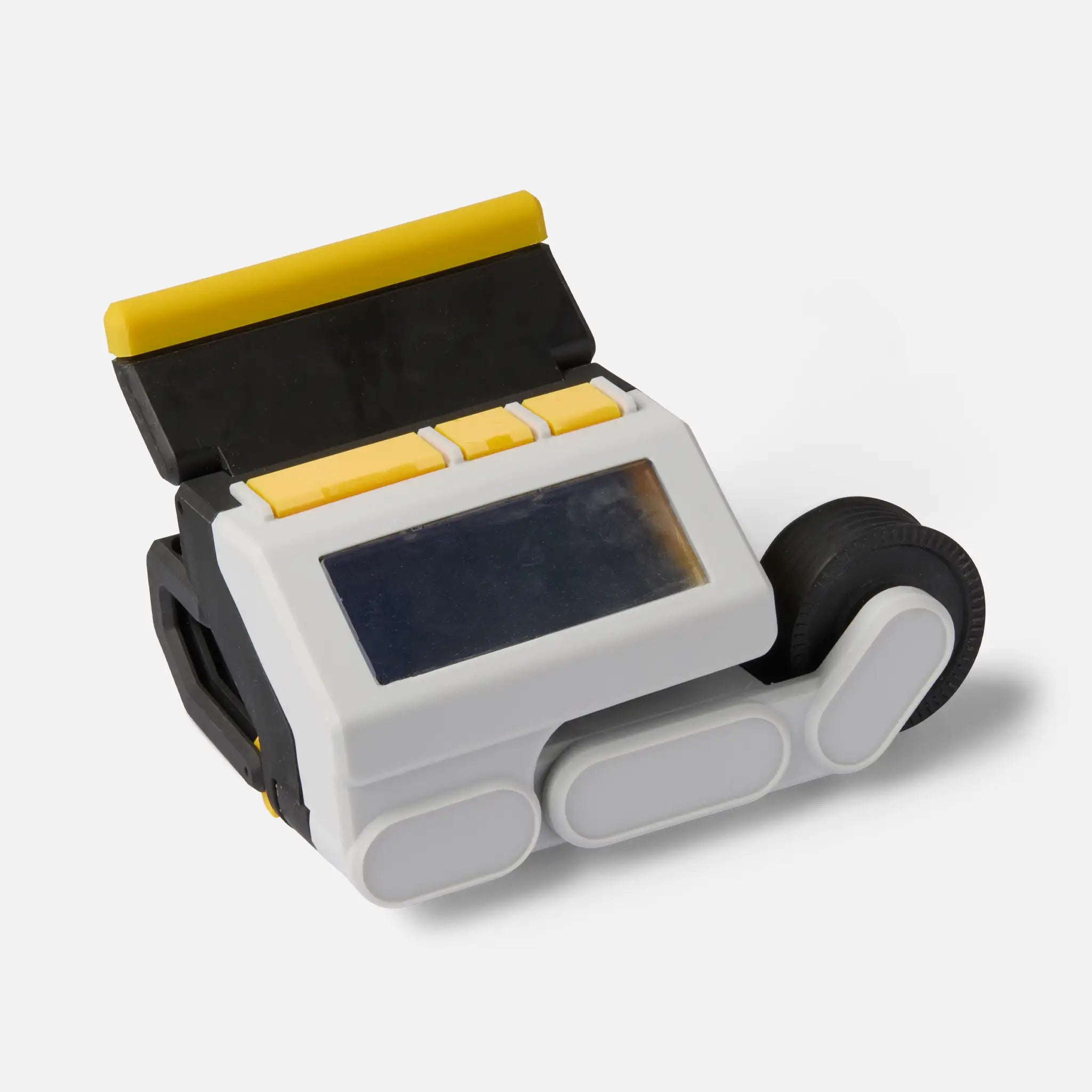

• 3D print parts in custom colors that represent your brand, product line, or creative vision
• Custom manufacturing ensures precise color
• Each order is custom-made and quality-checked
• Users can count on high-quality dimensional accuracy, aesthetics, and mechanical properties

Mechanical Properties:

• Ultimate Tensile Strength: 54 MPa (7,832 psi)
• Tensile Modulus: 2500 MPa (363 ksi)
• Elongation at Break: 15%
• Flexural Strength: 91 MPa (13.2 ksi)
• Flexural Modulus: 2450 MPa (355 ksi)
• Notched Izod: 34 J/m (0.637 ft-lbf/in)
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 62°C (144°F)
• Heat Deflection Temp. at 1.8 MPa (261.1 psi): 54°C (129°F)

Possible Applications:

General Purpose

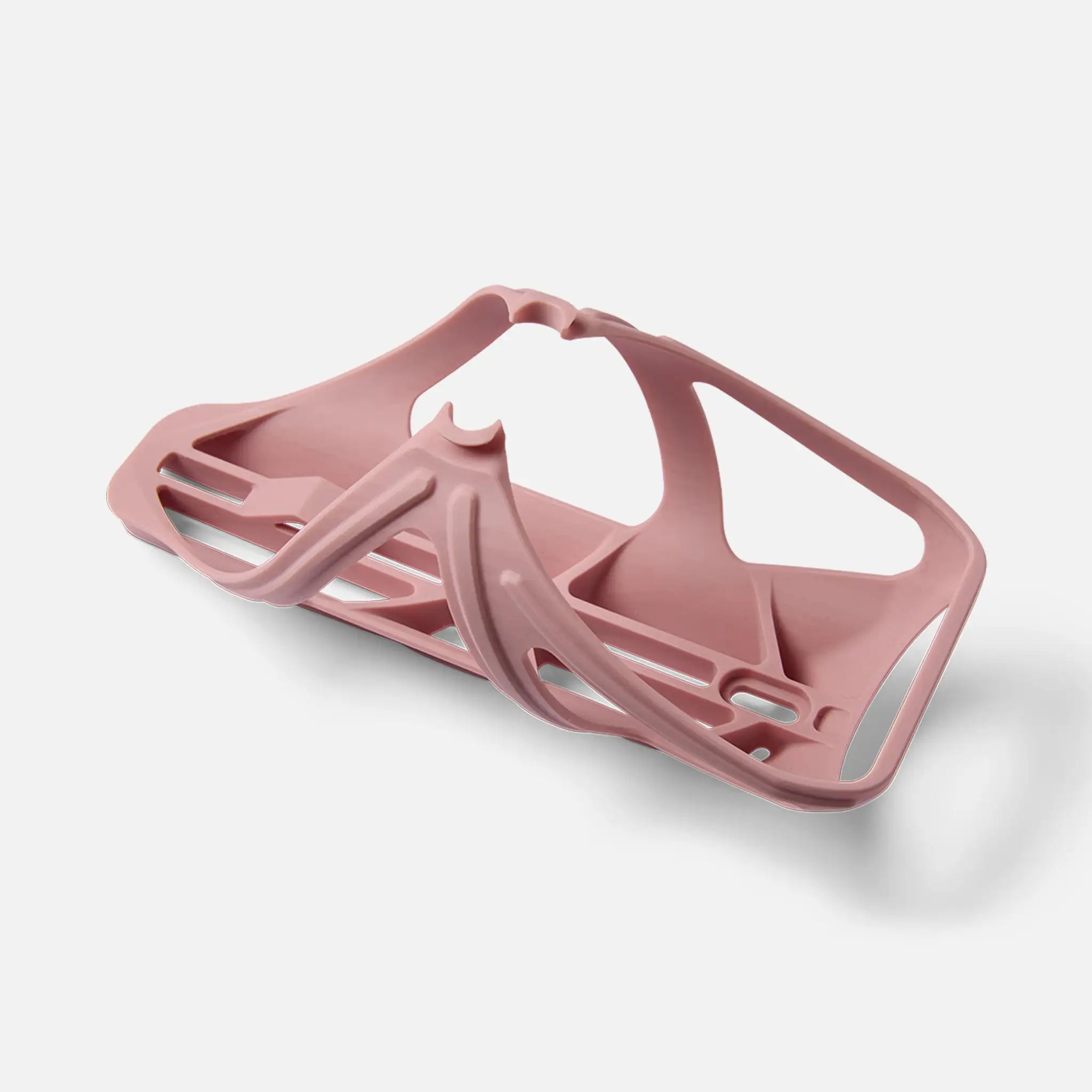

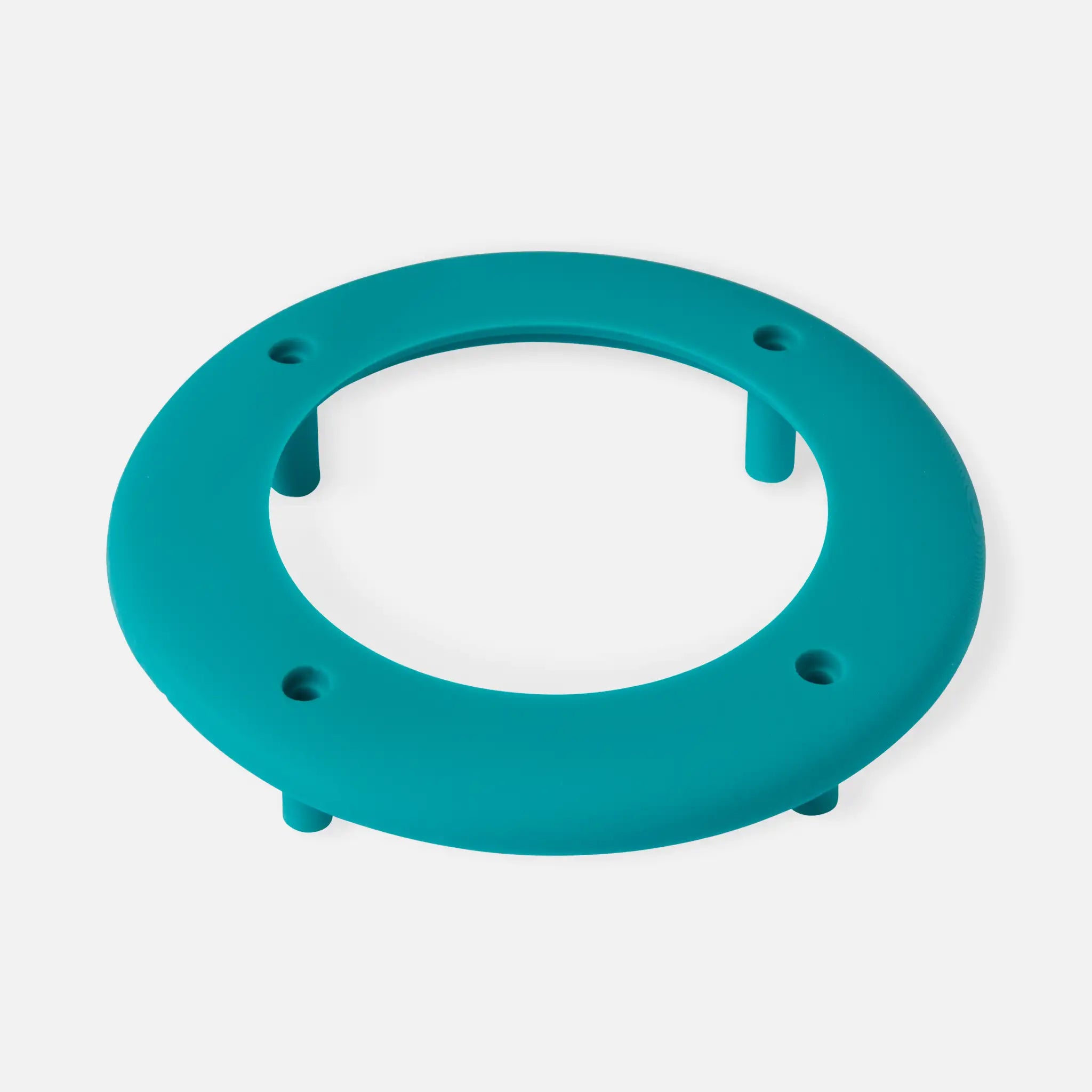

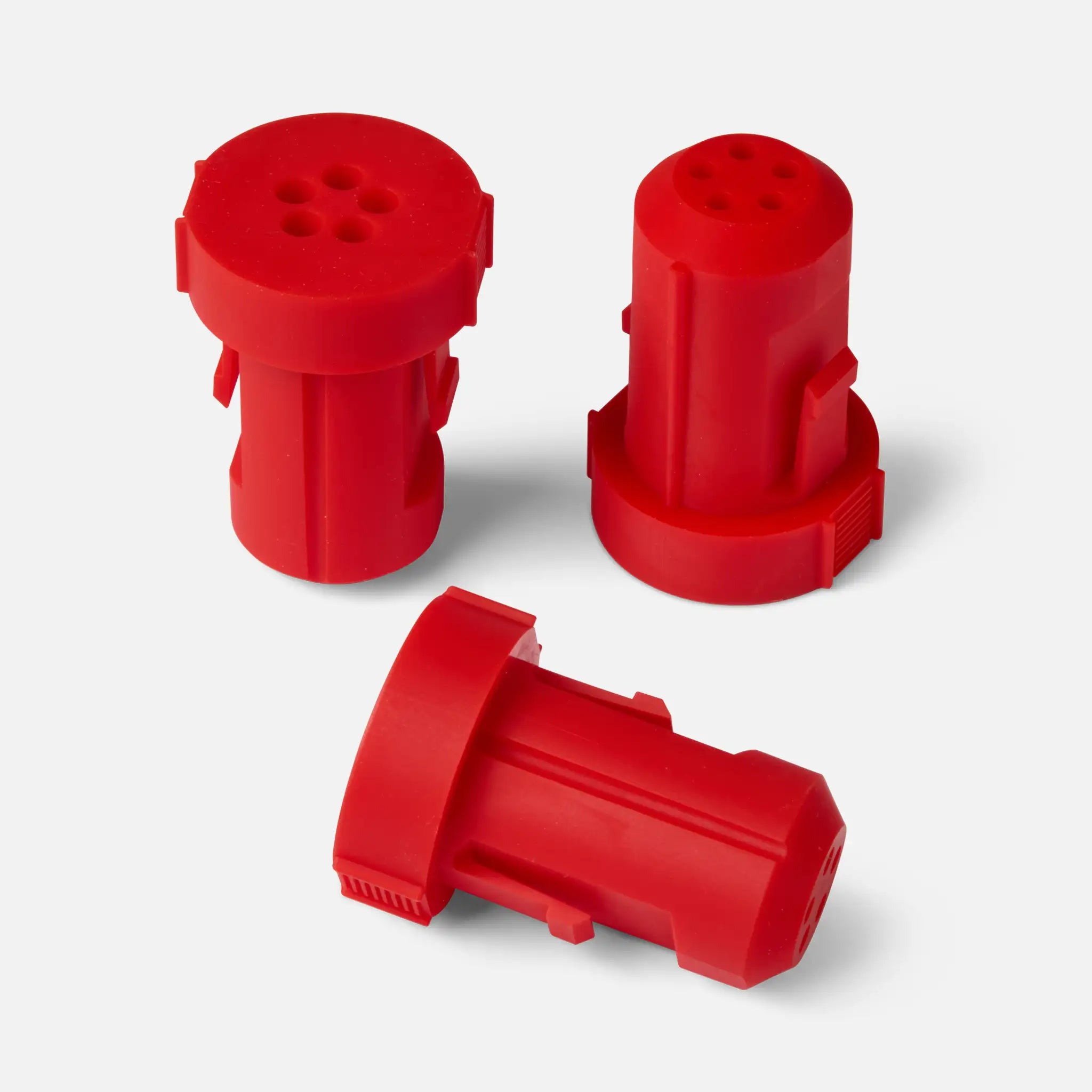

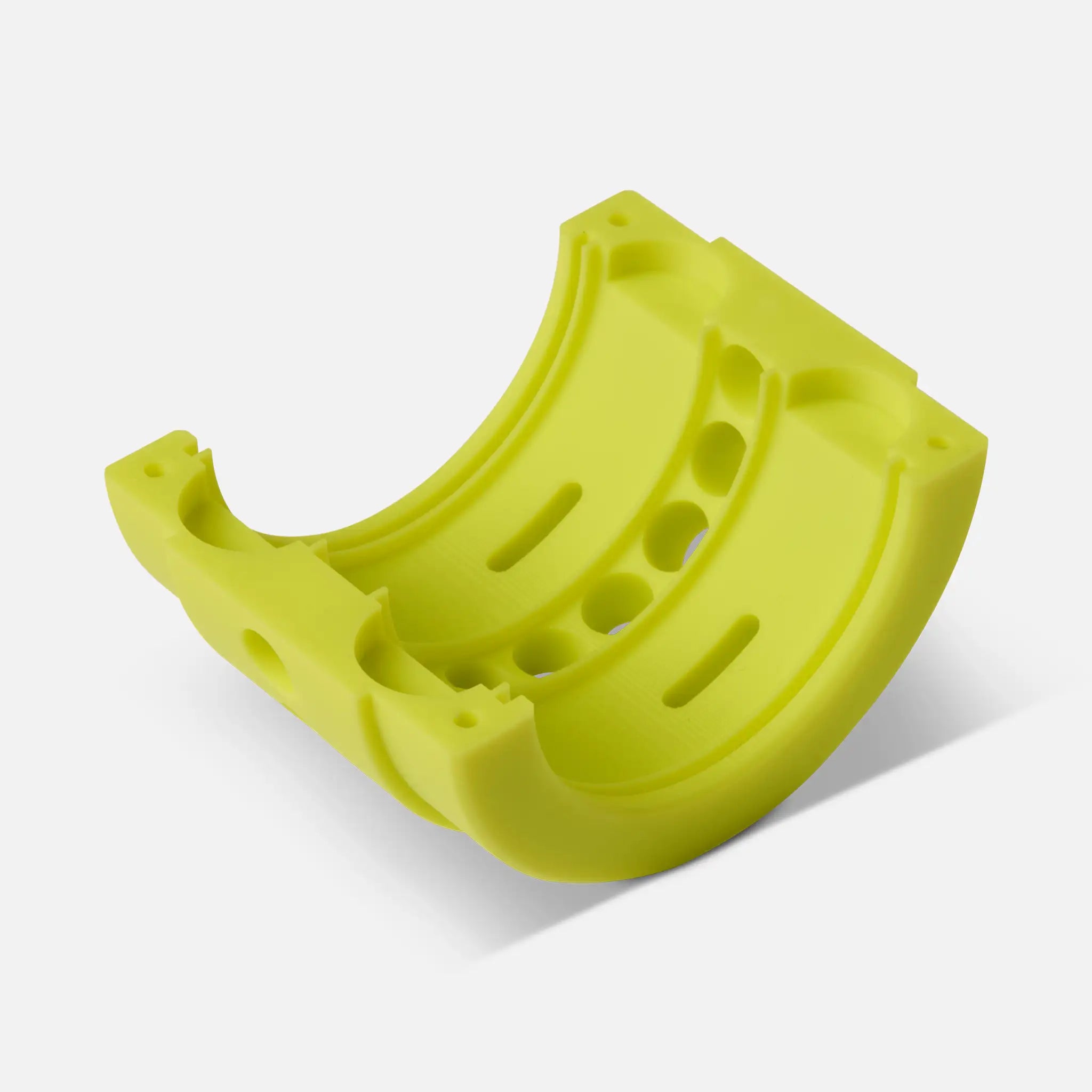

• Solid-colored parts
• Figurines and props
• Concept models

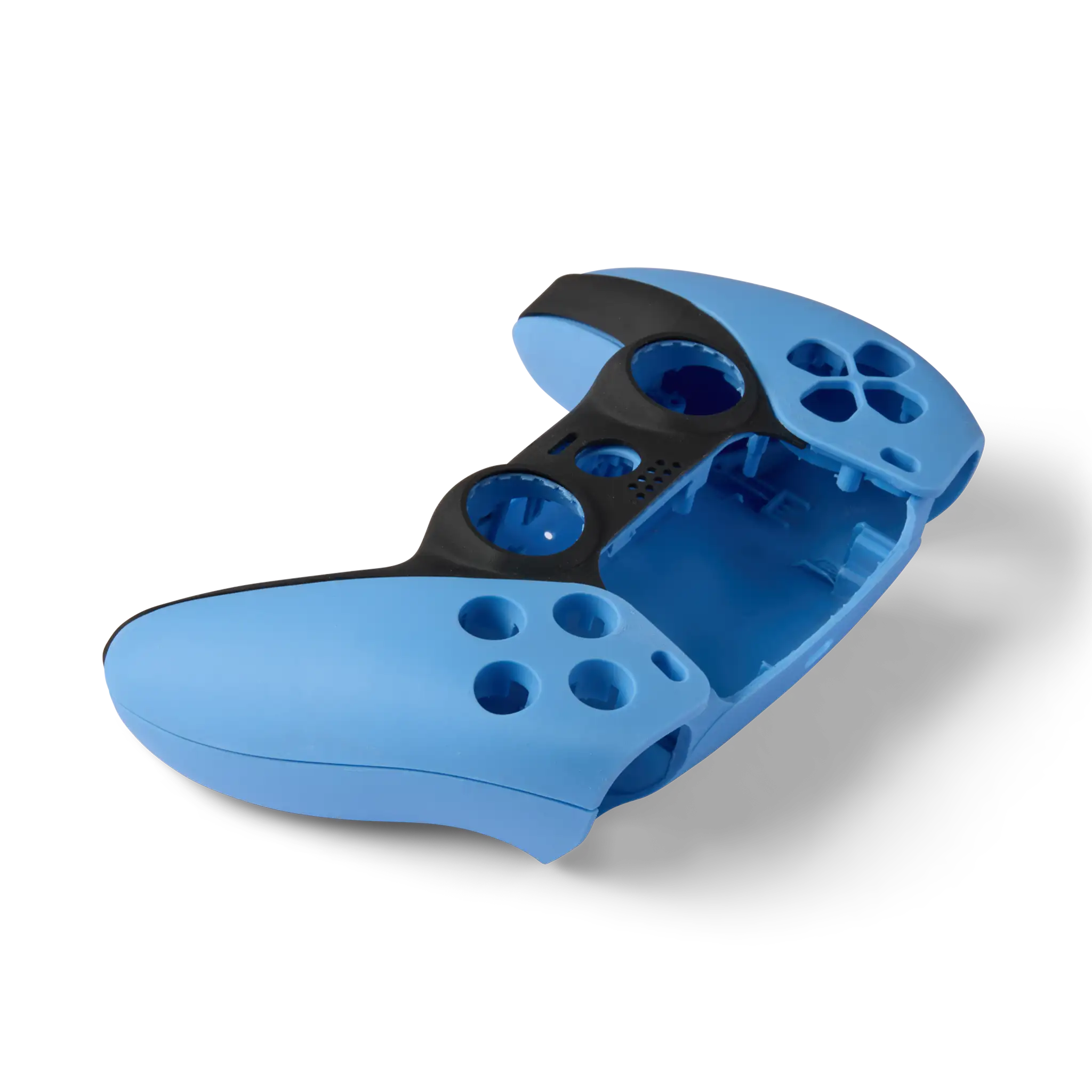

• Look-alike prototypes

Compatible 3D Printers:

• Form 4 3D Printer
• Form 4B 3D Printer
• Form 4L 3D Printer
• Form 4BL 3D Printer

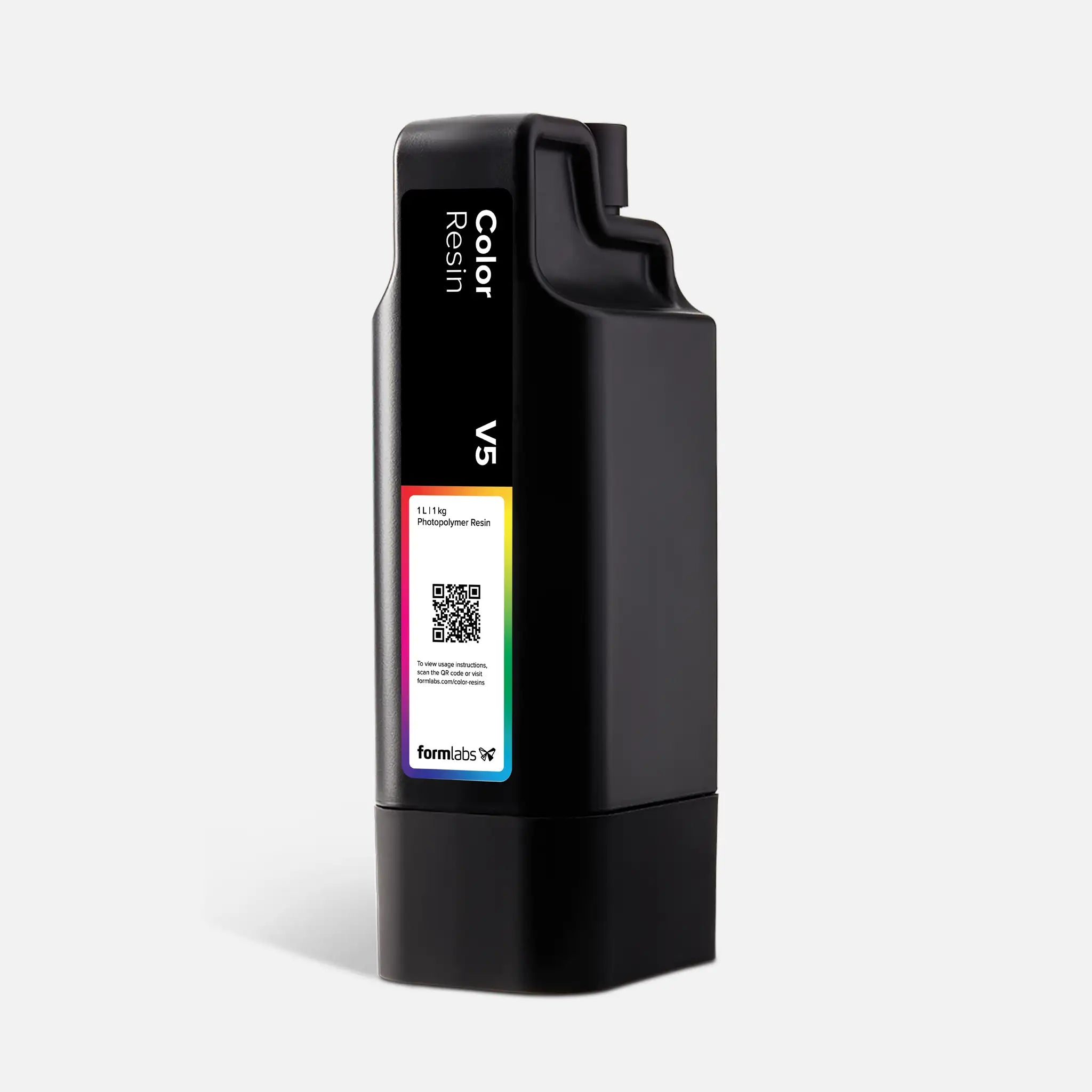

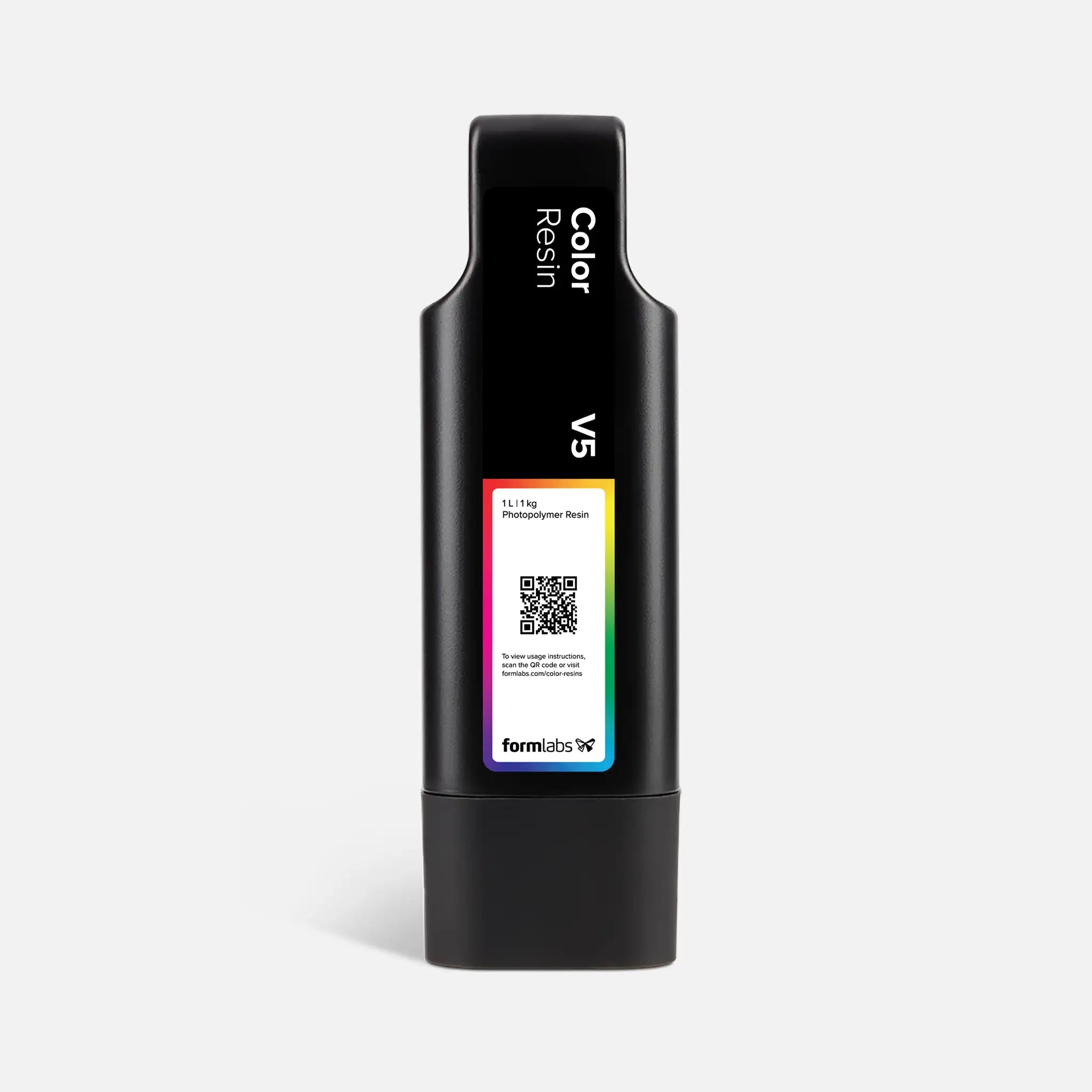

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download Color Resin V5 Data Sheet
