Product Description

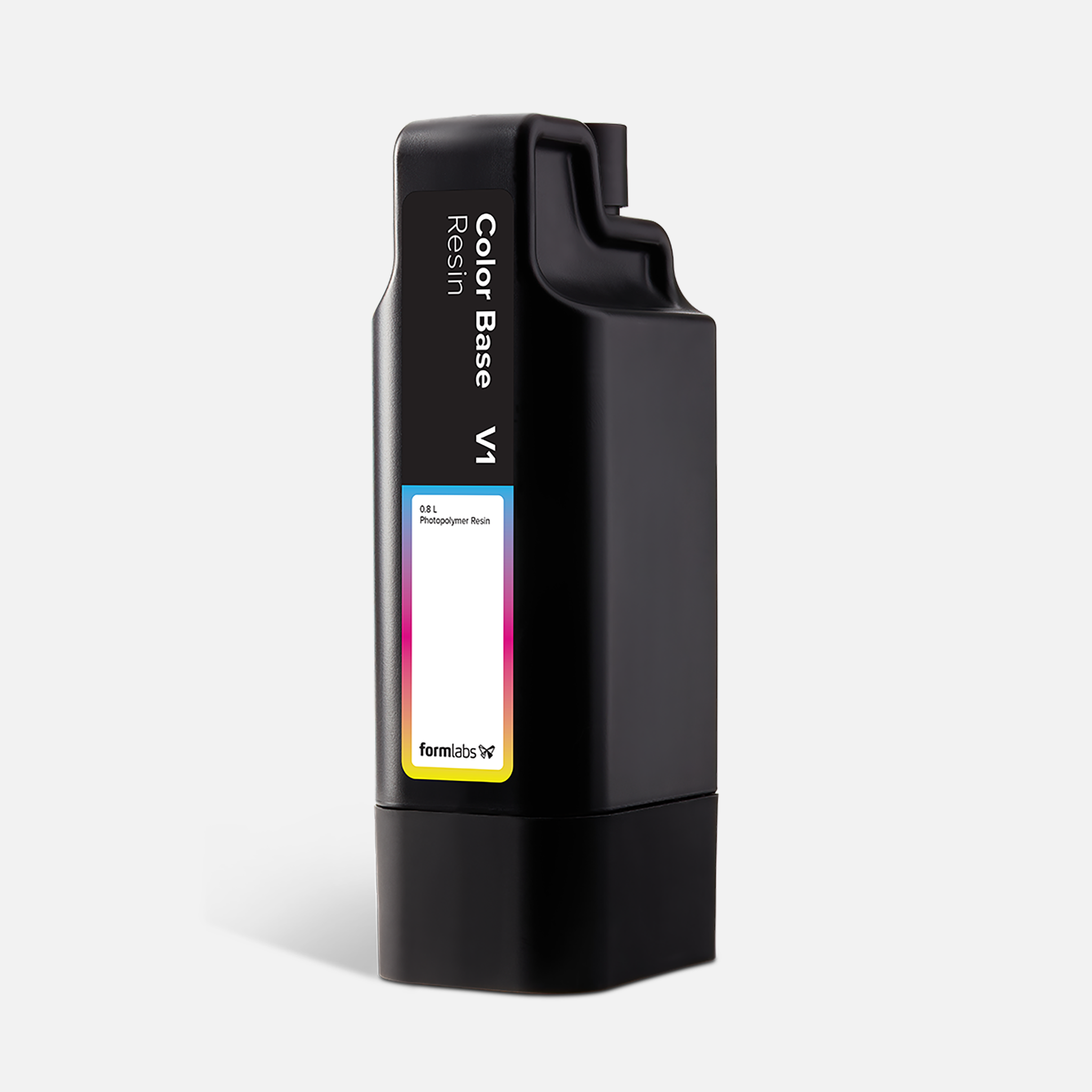

Color Base Resin V1 is designed for creating vibrant, detailed prints. Its strength and flexibility make it suitable for a variety of general-purpose applications. It is available in a 0.8 liter volume for Formlabs Form 4, Form 4B, Form 4L, and Form 4BL SLA printers, and a 1 liter volume for Form 2, Form 3, Form 3+, Form 3B, Form 3B+, Form 3L, and Form 3BL.

Resin Color: Pigment Required

Mechanical Properties:

• Ultimate Tensile Strength: 65.0 MPa (9427.4 psi)
• Tensile Modulus: 260.0 MPa (37709.8 psi)
• Elongation at Break: 6.0%
• Flexural Modulus: 220.0 MPa (31908.3 psi)
• Notched Izod: 25 J/m
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 73.0°C (163.4°F)

Possible Applications:

General Purpose

• Solid-colored parts
• Figurines and props
• Concept models
• Looks-like prototypes

Compatible 3D Printers:

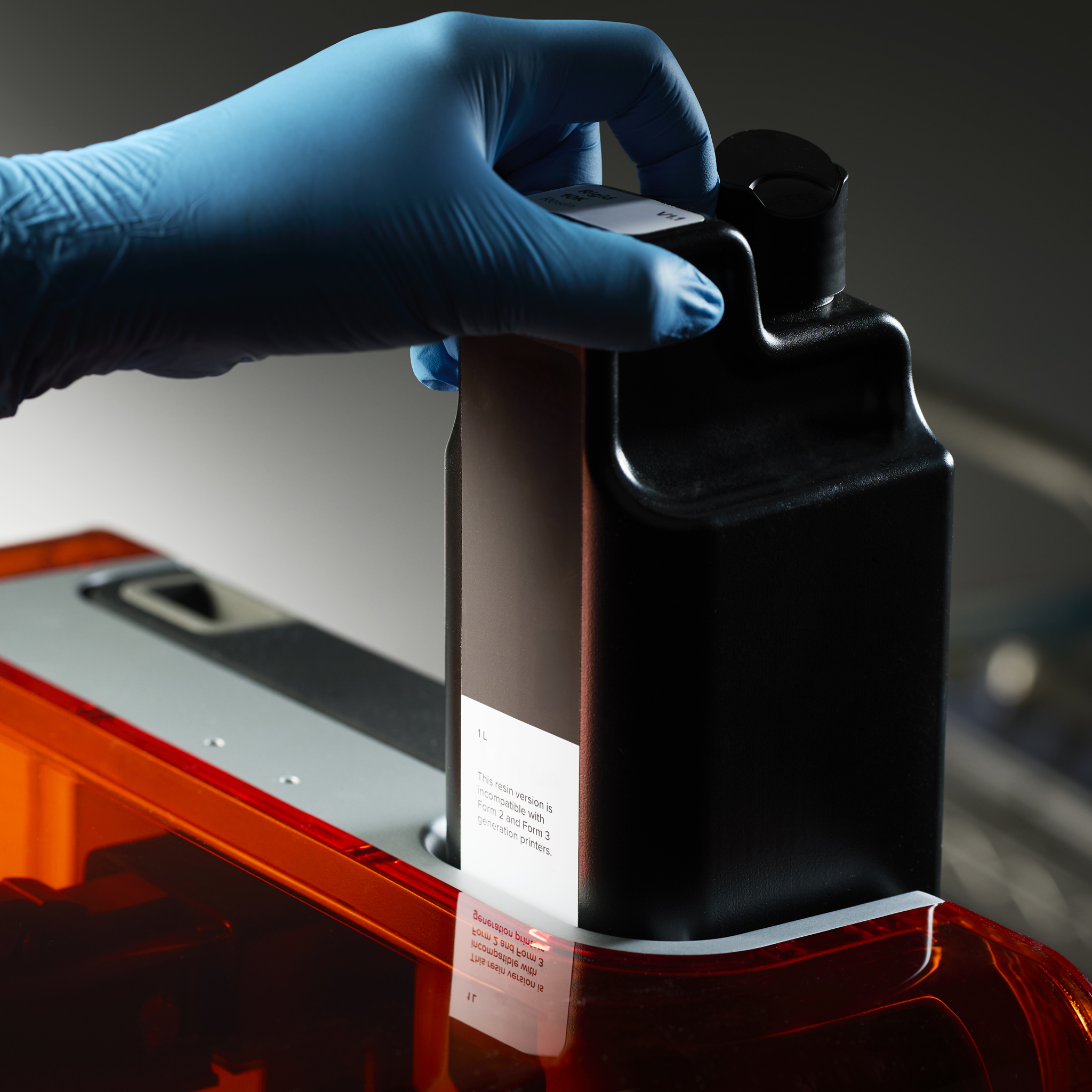

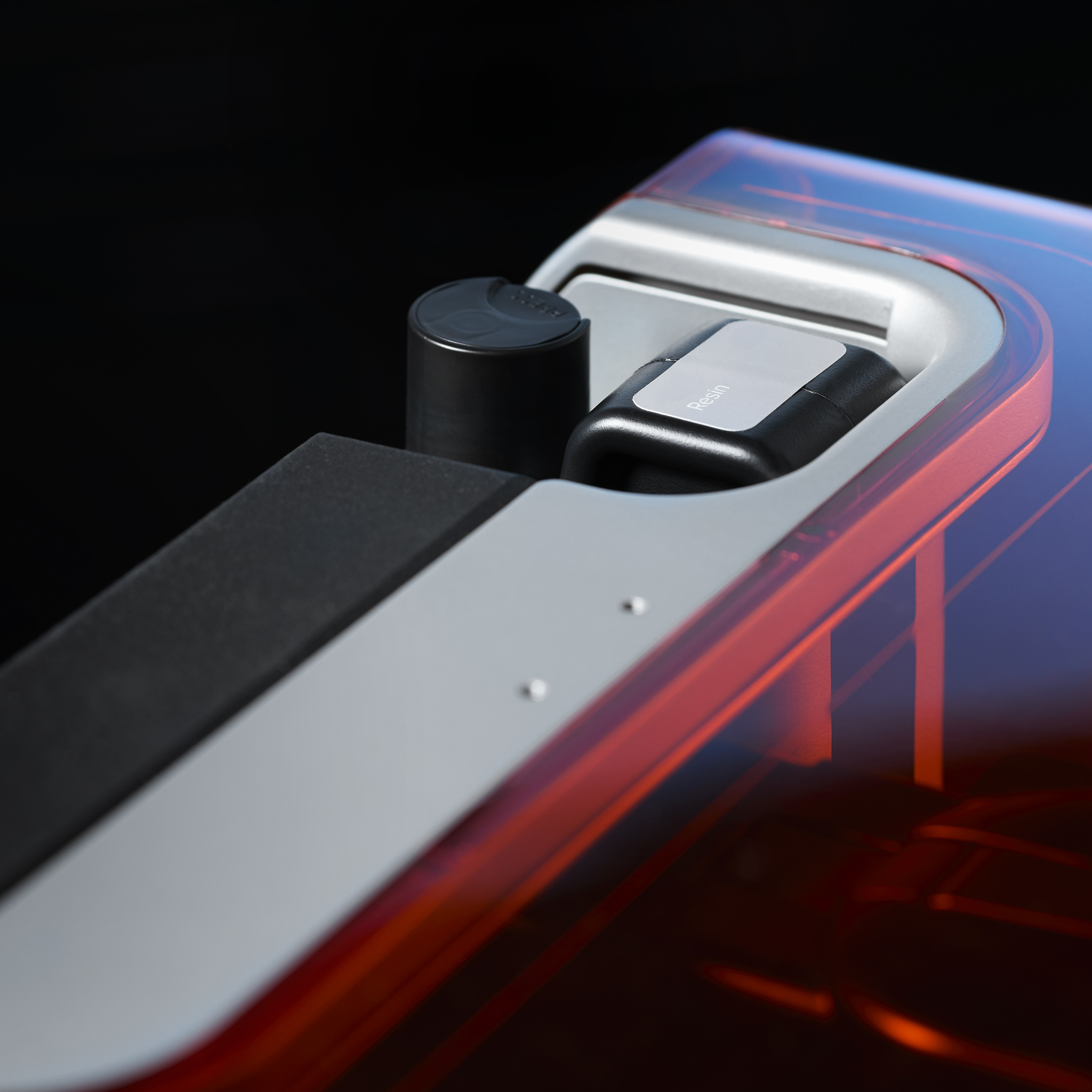

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download Color Base Resin V1 Data Sheet
