Product Description

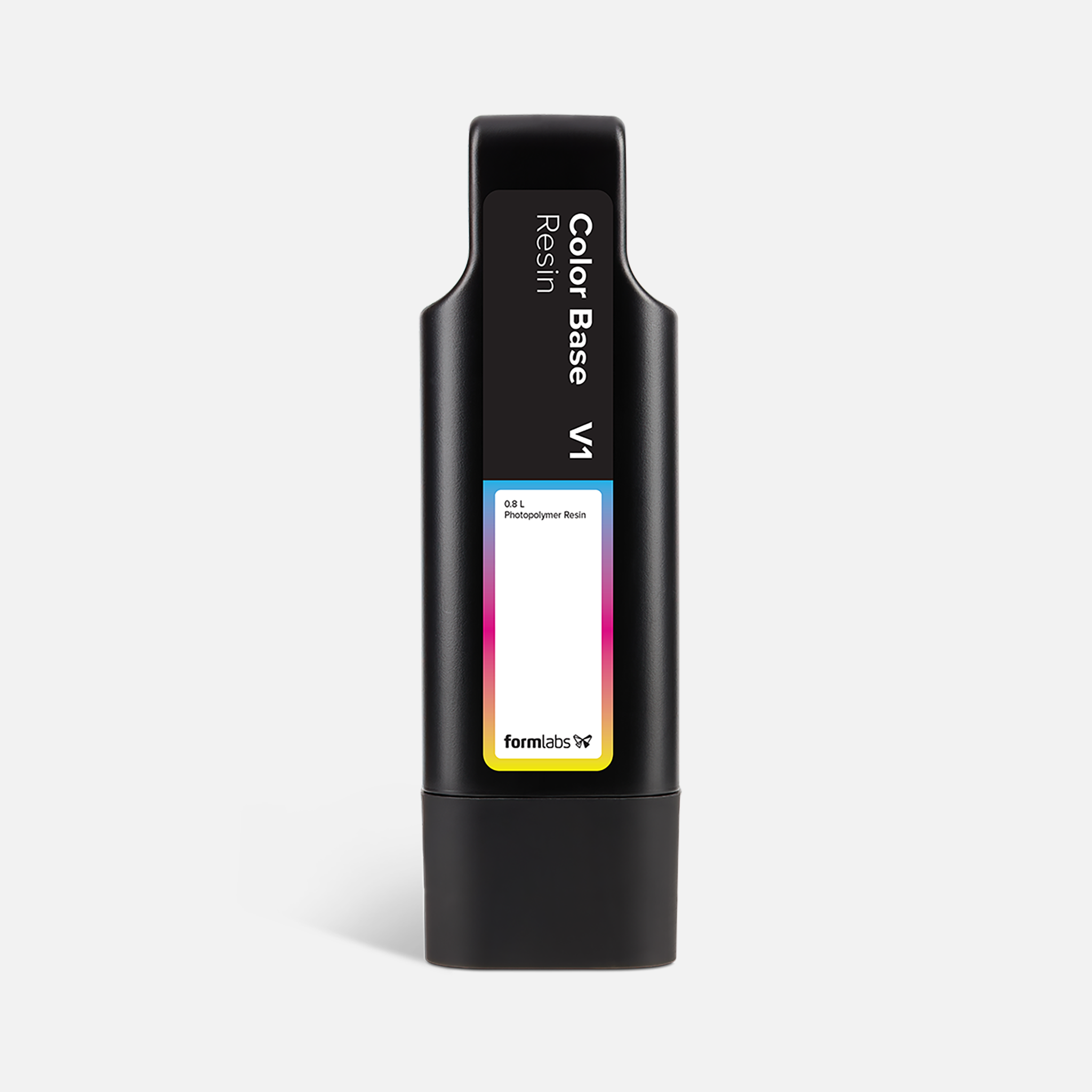

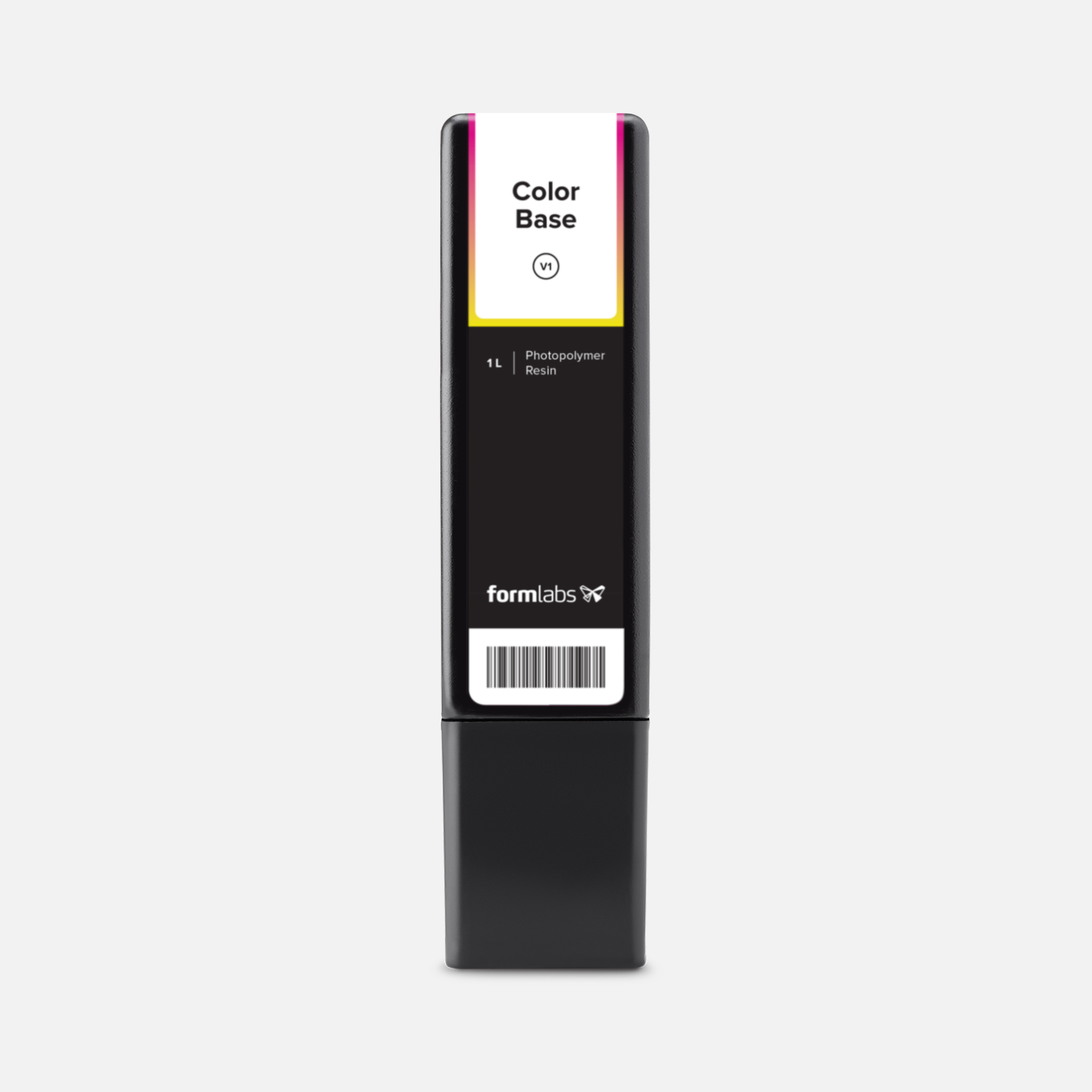

Color Base Resin V1 is designed for creating vibrant, detailed prints. Its strength and flexibility make it suitable for a variety of general-purpose applications. It is available in a 0.8-liter volume for Formlabs Form 4, Form 4B, Form 4L, and Form 4BL SLA printers, and a 1-liter volume for Form 2, Form 3, Form 3+, Form 3B, Form 3B+, Form 3L, and Form 3BL.
Resin Color: Pigment Required
Mechanical Properties:
- Ultimate Tensile Strength: 65.0 MPa (9427.4 psi)
- Tensile Modulus: 260.0 MPa (37709.8 psi)
- Elongation at Break: 6.0%
- Flexural Modulus: 220.0 MPa (31908.3 psi)
- Notched Izod: 25 J/m
- Heat Deflection Temp. at 0.45 MPa (65.2 psi): 73.0°C (163.4°F)
Possible Applications:
General Purpose
- Solid-colored parts
- Figurines and props
- Concept models
- Looks-like prototypes
Compatible 3D Printers:
| SKU: RS-F2-GPCB-01 | SKU: RS-C2-GPCB-01 |
| Form 2 Form 3 Form 3+ Form 3B Form 3B+ Form 3L Form 3BL |
Form 4 Form 4B Form 4L Form 4BL |

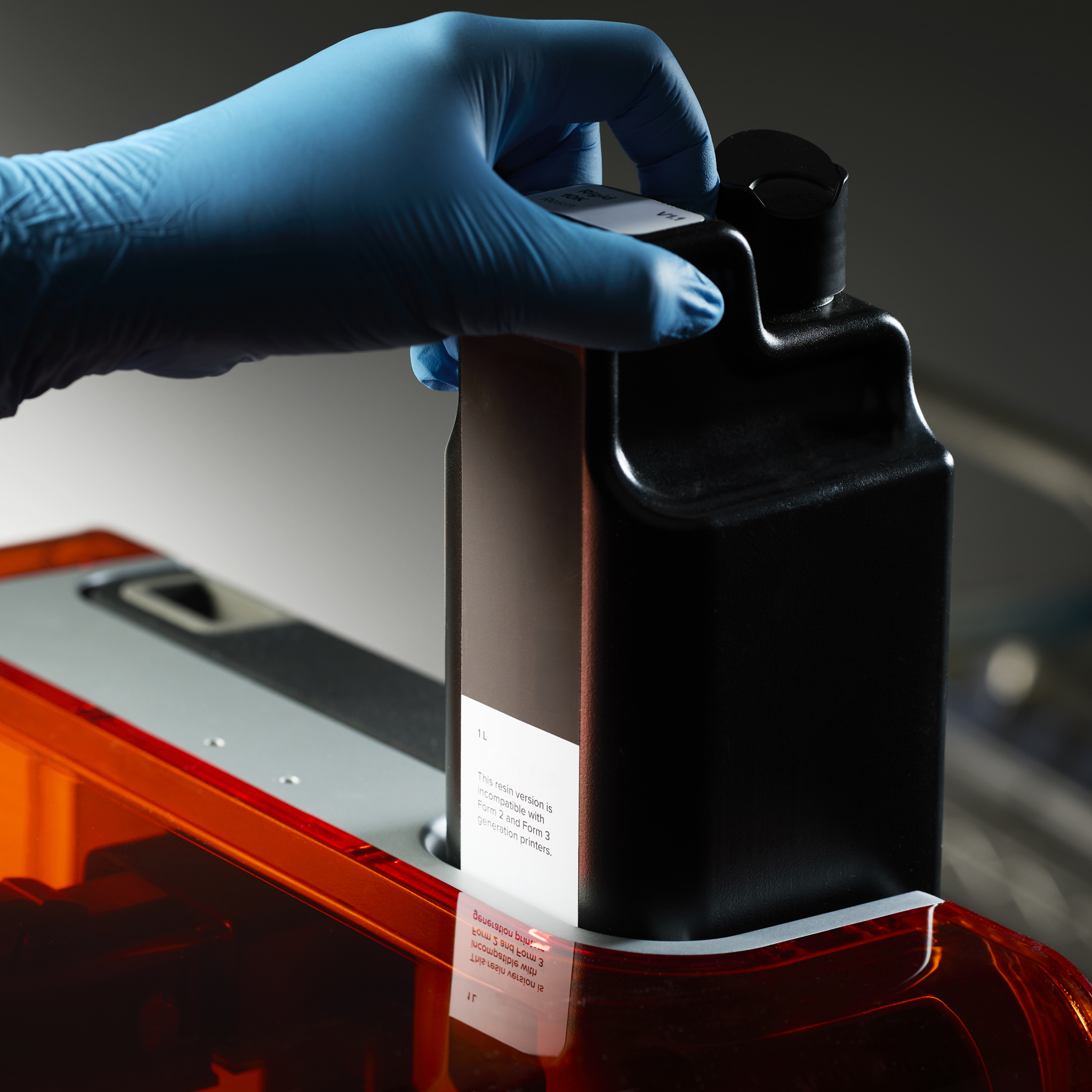

Redesigned Form 4 Resin Cartridge:
- Faster dispensing
- Fill an empty tank in 2-8 minutes with most resins
- Valve system is 5-10x faster to fill than Form 3
- Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
- Redesigned cartridge takes up 30% less shelf space
