Product Description

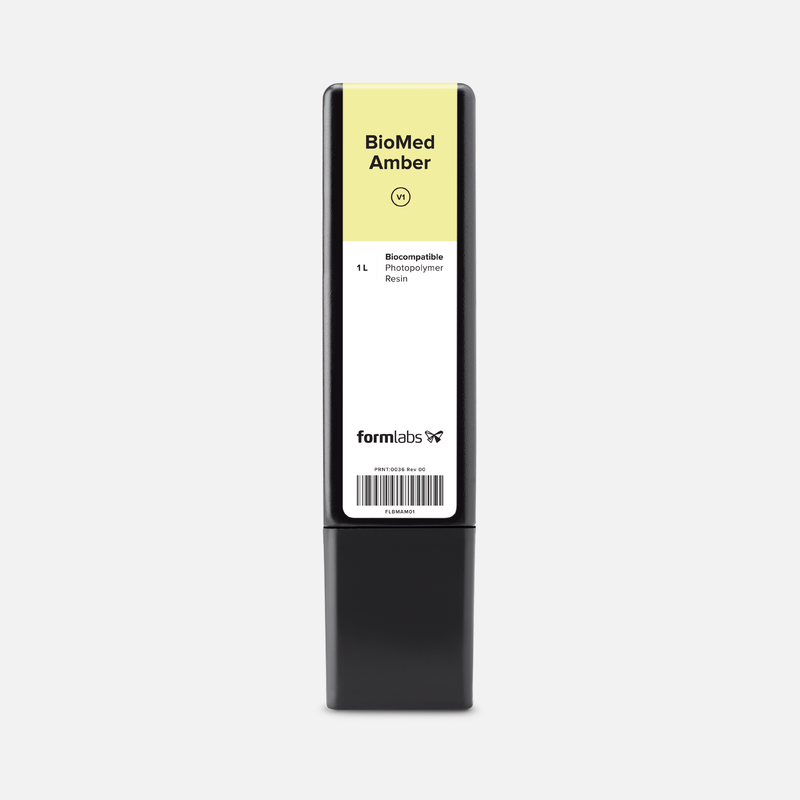

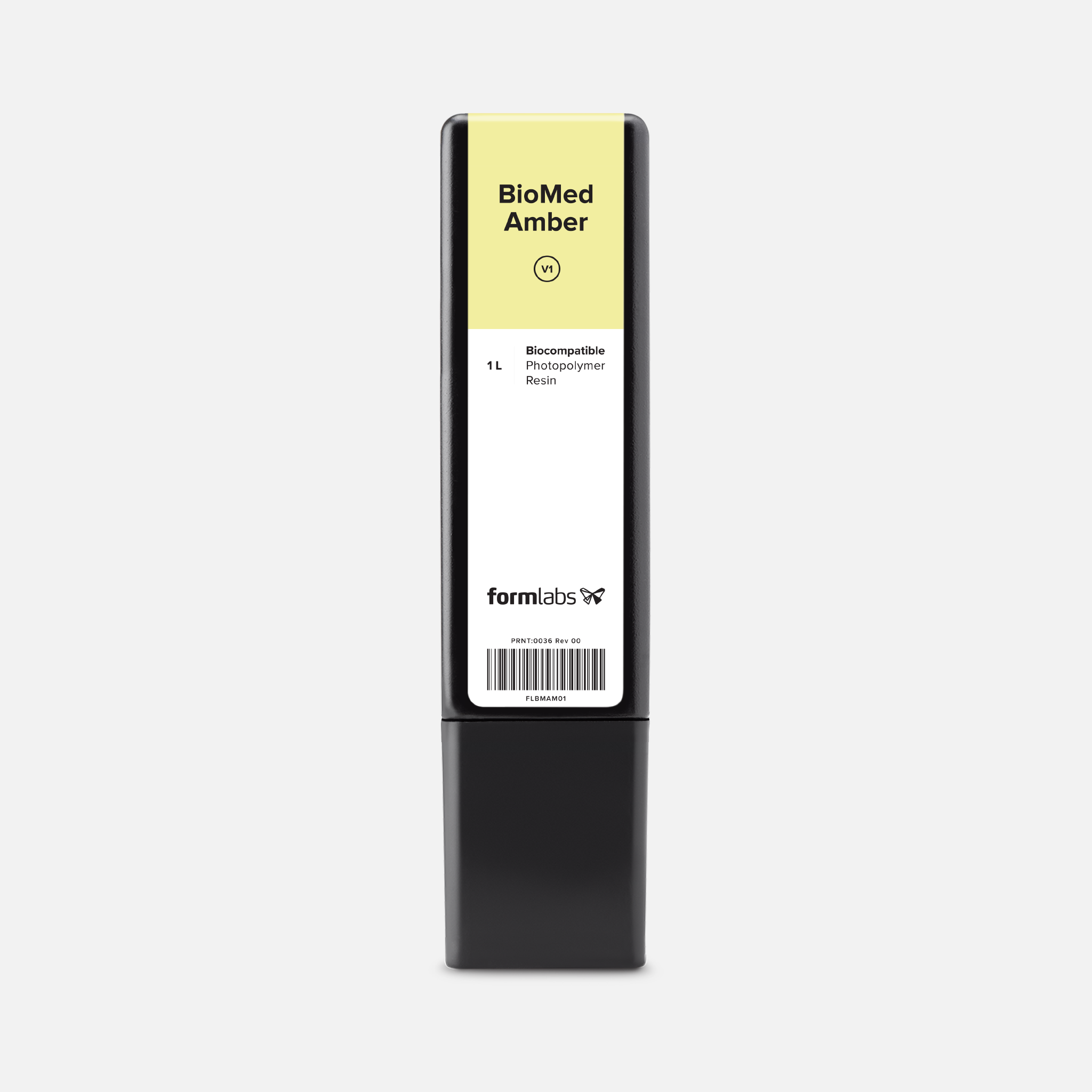

BioMed Amber Resin V1 is a biocompatible, translucent amber material for making medical and dental parts that require contact. It is appropriate for long-term skin contact (more than 30 days), and is also suitable for short-term contact (less than 24 hours) with bone, tissue, mucosal membrane, and dentin.

This 3D printing resin is compatible with common solvent disinfection and sterilization methods. It is available in a 1-liter volume and is compatible with several Formlabs SLA printers, including Form 2, Form 3B, Form 3B+, Form 3BL, Form 4B, and Form 4BL.

This material has passed rigorous biocompatibility testing and is a USP Class VI certified material. BioMed Amber Resin is manufactured in Formlabs' FDA-registered, ISO 13485 certified facility.

Resin Color: Translucent Amber

Mechanical Properties:

• Ultimate Tensile Strength: 72 MPa (11 ksi)
• Tensile Modulus: 2900 MPa (420 ksi)
• Elongation at Break: 12%
• Flexural Strength: 103 MPa (15 ksi)
• Flexural Modulus: 2500 MPa (363 ksi)
• Shore Hardness: 67D
• Notched Izod: 28 J/m (0.53 ft-lbf/in
• Unnotched Izod: 142 J/m (2.6 ft-lbf/in
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 78°C (172°F)
• Heat Deflection Temp. at 1.8 MPa (261.1 psi): 65°C (149°F)
• Coefficient of Thermal Expansion: 66 µm/m/°C (37 µin/in/°F)

Sterilization Compatibility

• E-Beam: 35 kGy E-Beam Radiation
• Ethylene Oxide: 100% Ethylene Oxide at 55°C for 180 Minutes
• Gamma: 29.4 - 31.2 kGy Gamma Radiation
• Steam Sterilization at 134°C (273°F): 20 minutes
• Steam Sterilization at 121°C (250°F): 30 minutes

Possible Applications:

Dental, Medical

• End-use devices
• Specimen collection kits
• Cut and drill guides
• Models for visualization
• Implant sizing

Compatible 3D Printers:

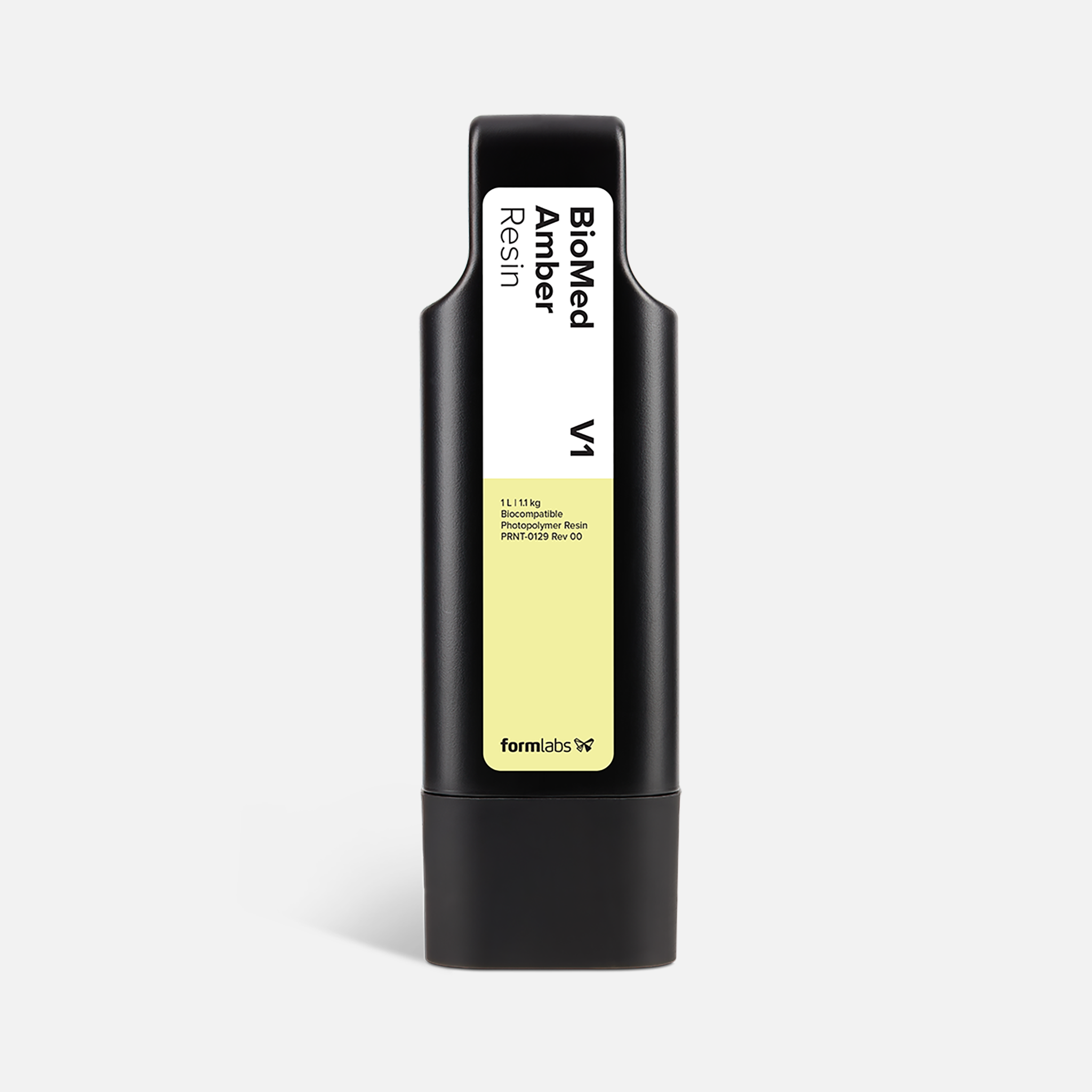

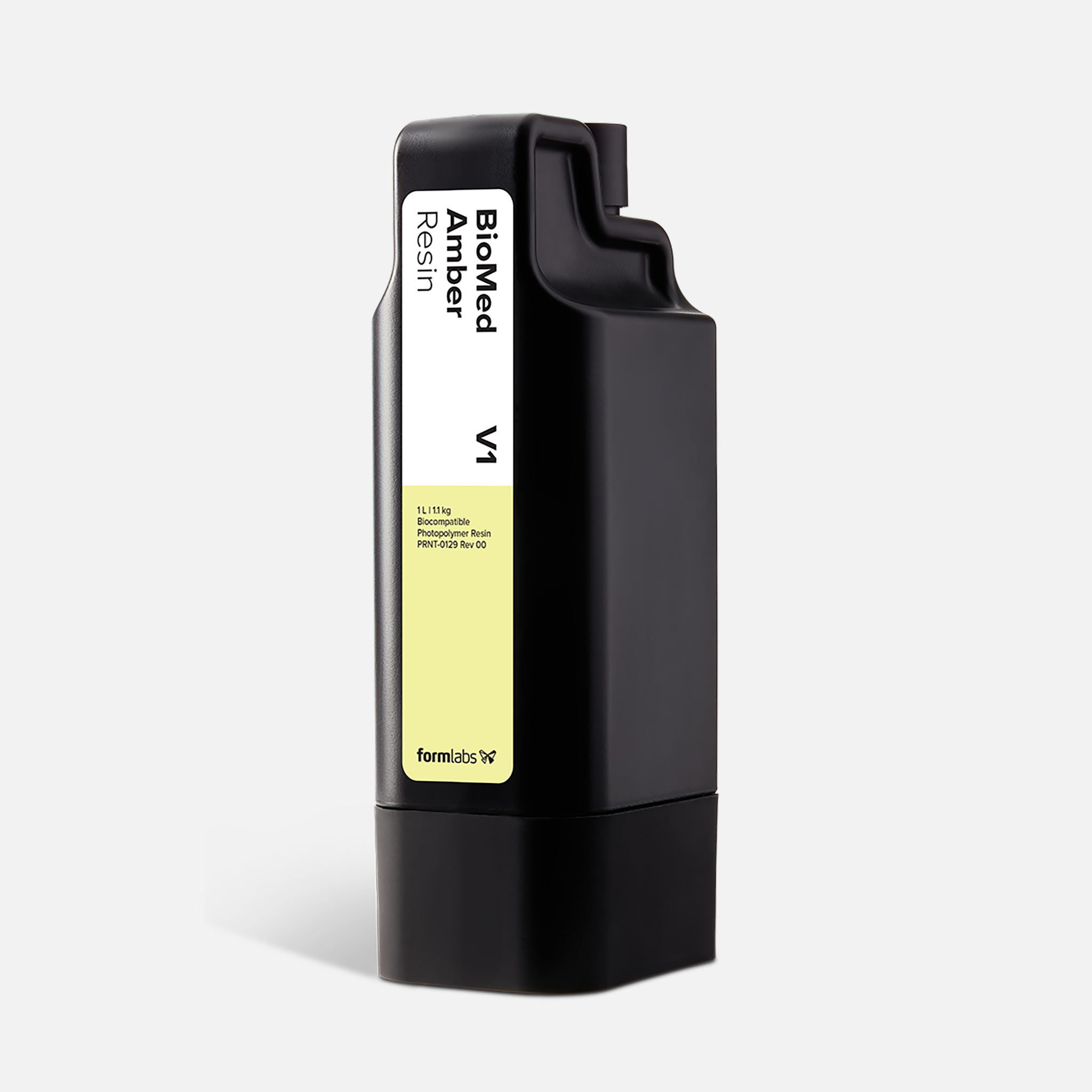

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download BioMed Amber Resin V1 Data Sheet
