Formlabs® BioMed Clear Biocompatible Resin V1 - 1L (Form 4B, 4BL & Form 3B, 3BL)

Product Description

BioMed Clear Resin V1 is a transparent, biocompatible material for building medical and dental parts that require contact. It is appropriate for long-term skin contact (more than 30 days), breathing gas pathways, and mucosal membrane contact (more than 30 hours). This material is also appropriate for short-term contact (less than 24 hours) with bone, tissue, and dentin.

Material Qualities:

• Rigid
• Wear-Resistant
• Low Water Absorption
• Biocompatible

Parts printed with BioMed Clear Resin are compatible with common solvent disinfection and sterilization methods. With wear resistance and low water absorption, BioMed Clear is well-suited for a variety of pharmaceutical and medical applications.

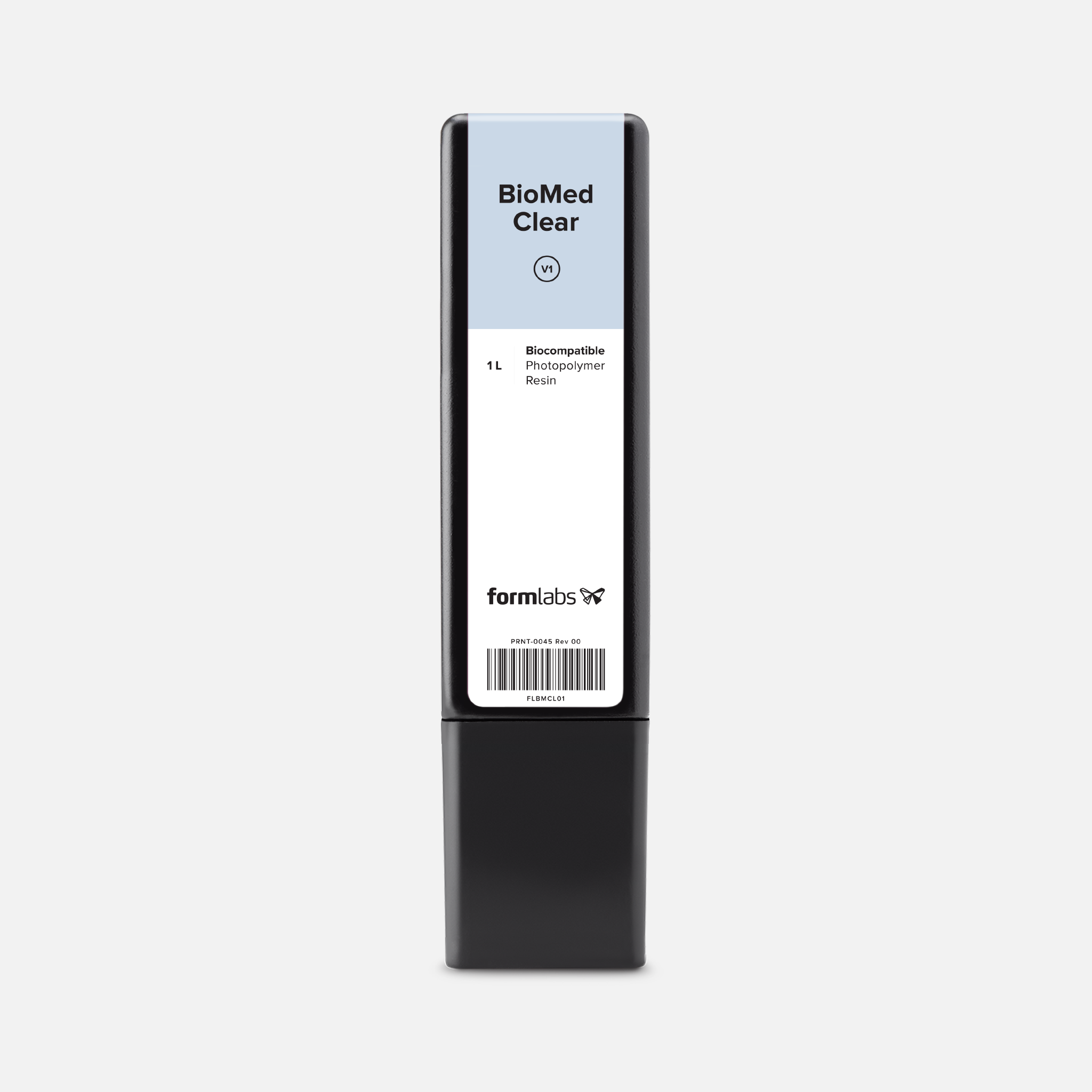

It is available in a 1-liter volume and is compatible with several Formlabs SLA printers, including Form 3B, Form 3BL, Form 4B, and Form 4BL.

This 3D printing resin has passed rigorous biocompatibility testing and is a USP Class VI certified material. BioMed Clear Resin is manufactured in Formlabs' FDA-registered, ISO 13485 certified facility and is supported with an FDA Device Master File.

Resin Color: Clear

Mechanical Properties:

• Ultimate Tensile Strength: 52 MPa (7.5 ksi)
• Tensile Modulus: 2080 MPa (302 ksi)
• Elongation at Break: 12%
• Flexural Strength: 84 MPa (12.2 ksi)
• Flexural Modulus: 2300 MPa (332 ksi)
• Shore Hardness: 78D
• Notched Izod: 35 J/m (0.658 ft-lbf/in)
• Unnotched Izod: 449 J/m (8.41 ft-lbf/in)
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 67°C (152°F)
• Heat Deflection Temp. at 1.8 MPa (261.1 psi): 54°C (129°F)
• Coefficient of Thermal Expansion: 82 microns/m/°C (45 microinches/in/°F)
• Water Absorption: 0.54%

Sterilization Compatibility

• E-Beam: 35 kGy E-Beam Radiation
• Ethylene Oxide: 100% Ethylene Oxide at 55°C for 180 Minutes
• Gamma: 29.4 - 31.2 kGy Gamma Radiation
• Steam Sterilization at 134°C (273°F): 20 minutes
• Steam Sterilization at 121°C (250°F): 30 minutes

Possible Applications:

Dental, Medical

• End-use devices
• Biocompatible molds, jigs, fixtures, and prototypes
• Models for visualization
• Implant sizing
• Gas pathway connectors, adapters, and devices

Compatible 3D Printers:

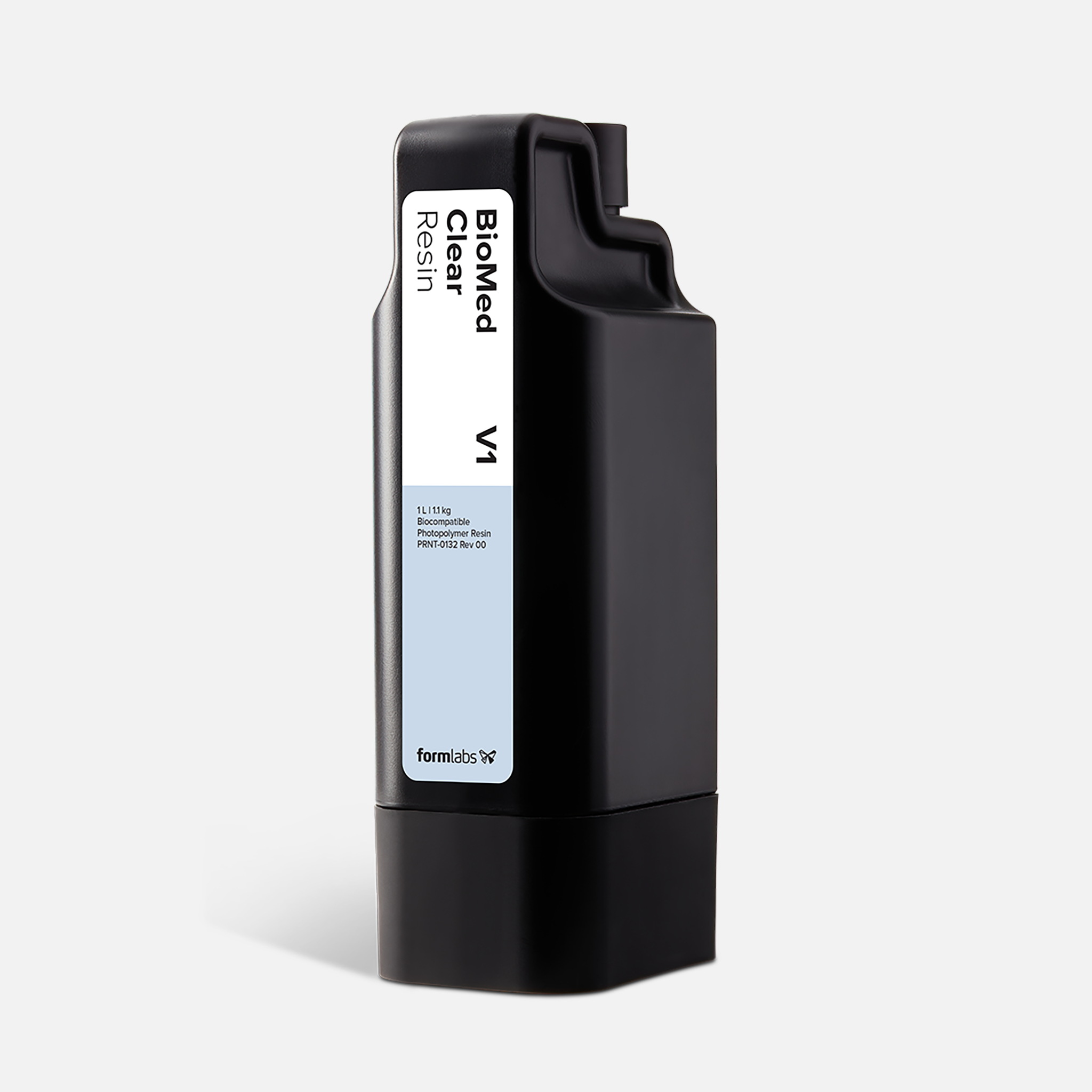

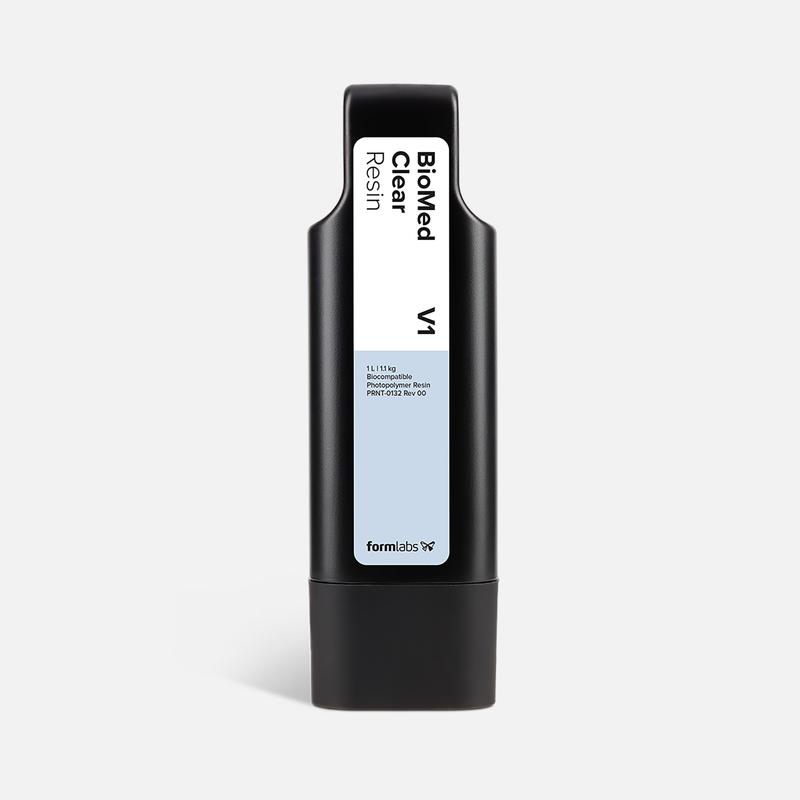

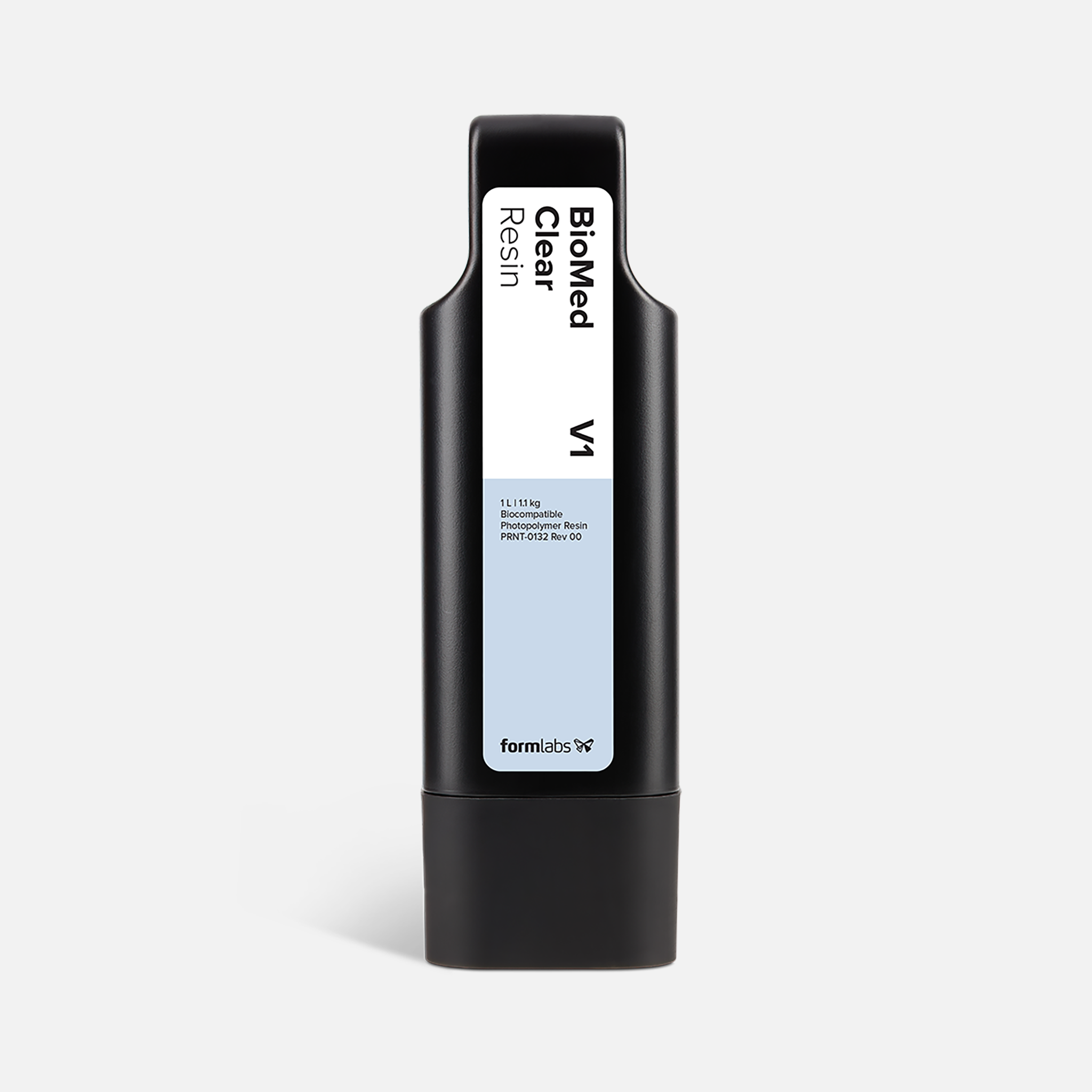

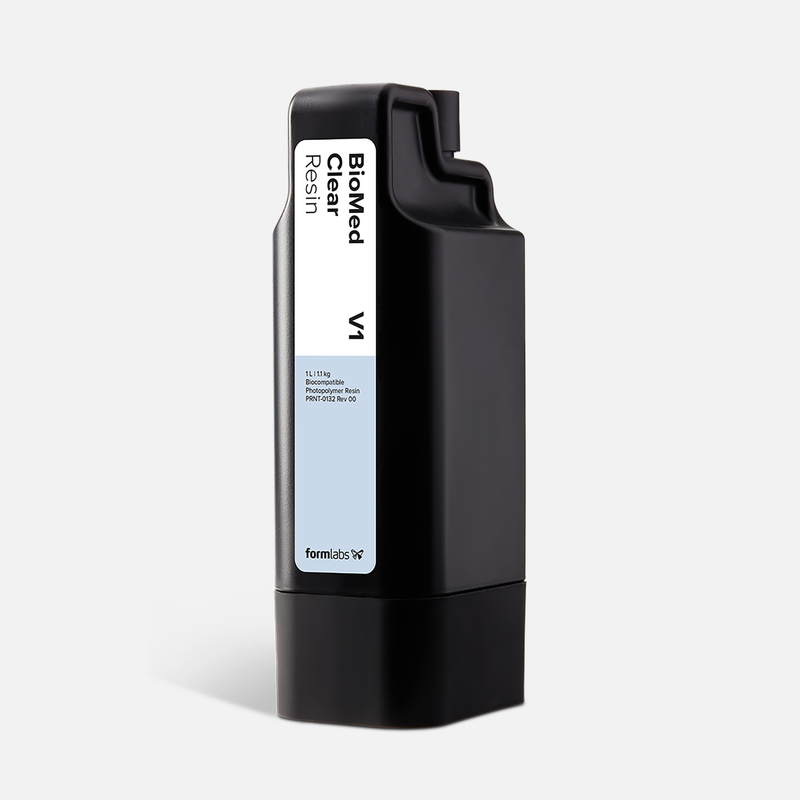

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download BioMed Clear Resin V1 Data Sheet
