Product Description

BioMed Flex 80A V1 is a firm, transparent resin for making flexible medical parts that require contact with the body. It is suitable for long-term skin contact (more than 30 days), and is also appropriate for short-term mucosal membrane contact (less than 24 hours).

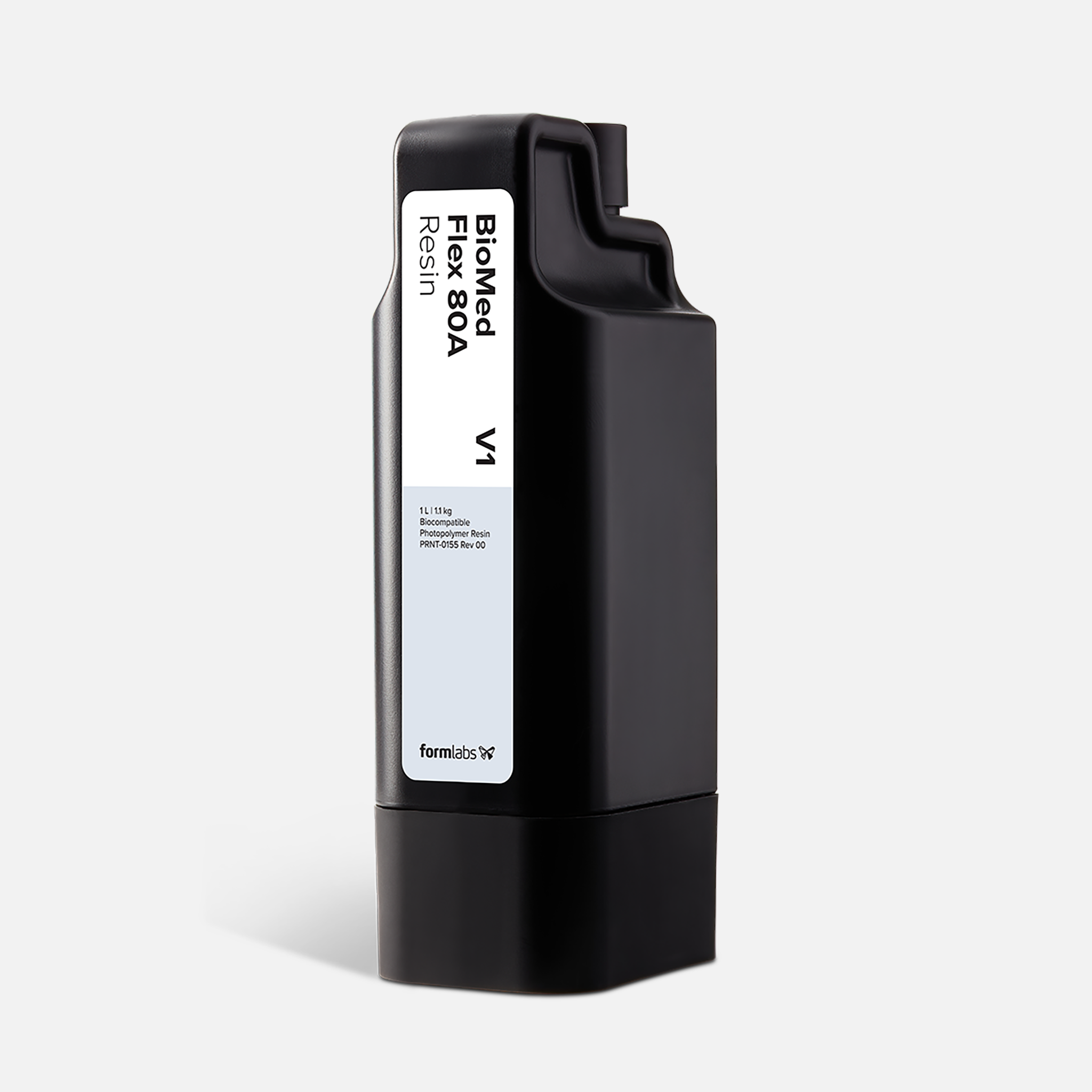

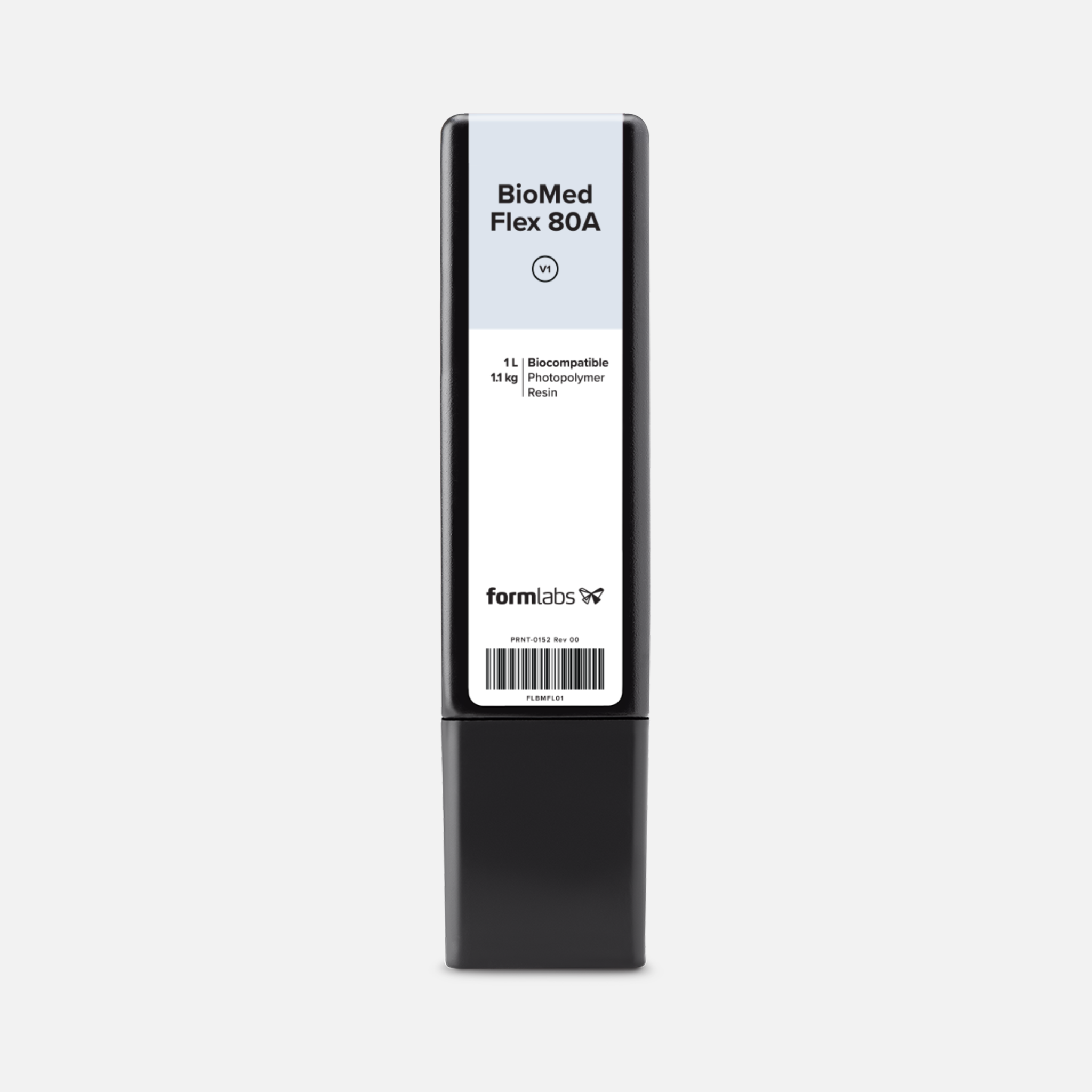

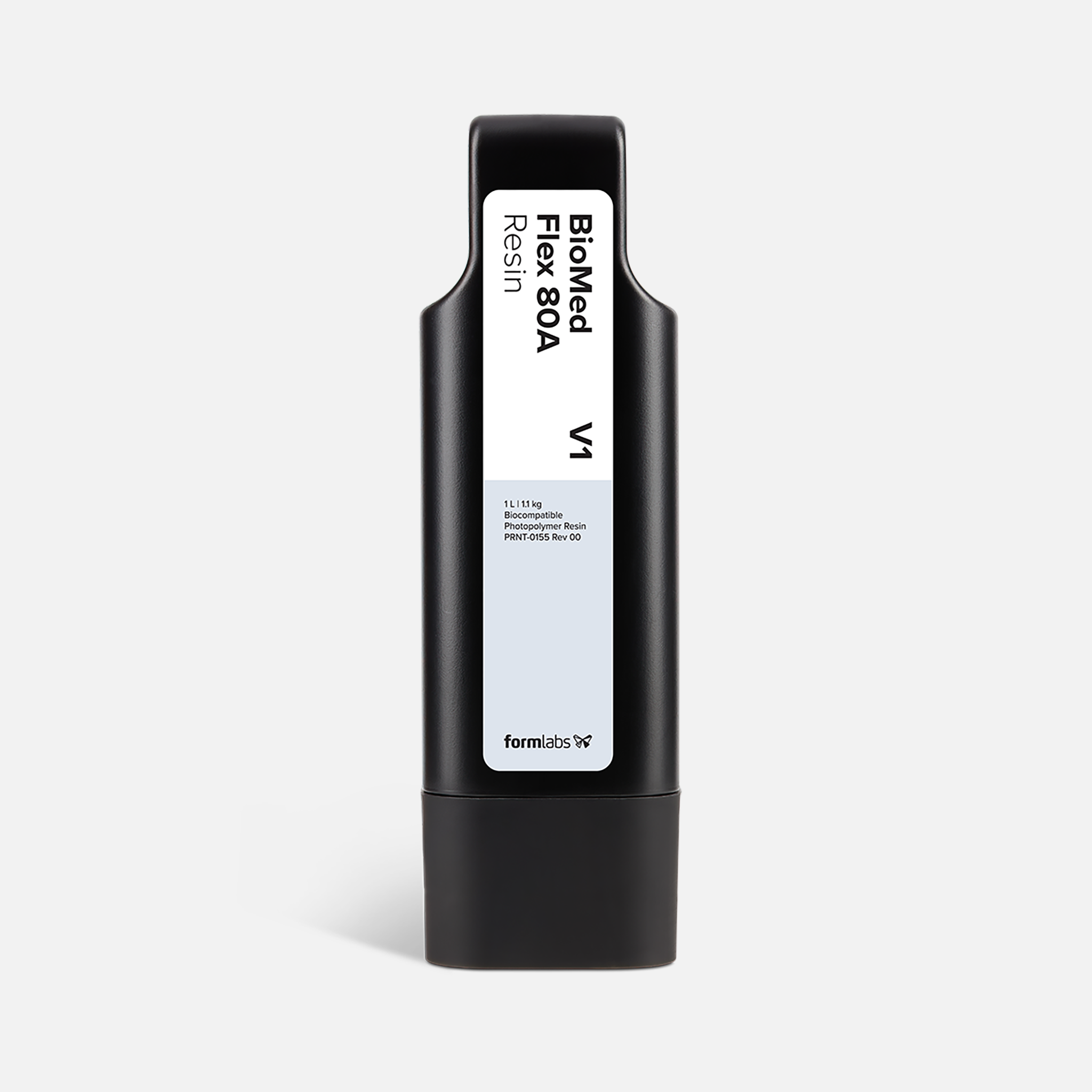

This material is available in a 1-liter volume and is compatible with B Series Formlabs SLA printers, including Form 3B, Form 3B+, Form 3BL, Form 4B, and Form 4BL.

BioMed Flex 80 Resin is manufactured in Formlabs' FDA-registered, ISO 13485 certified facility.

Resin Color: Translucent Light Blue

Mechanical Properties:

• Ultimate Tensile Strength: 7.2 MPa (1040 psi)
• Stress at 50% Elongation: 2.6 MPa (377 psi)
• Stress at 100% Elongation: 4.5 MPa (653 psi)
• Elongation at Break: 135%
• Tear Strength: 22 kN/m 125 lbf/in
• Shore Hardness: 77-80A
• Compression Set 23°C (73°F) for 22 hours: 24.7%
• Compression Set 70°C (158°F) for 22 hours: 5.3%
• Bayshore Resilience: 29%
• Glass Transition Temperature (Tg): -37°C (-35°F)

Disinfection Compatibility

• Chemical Disinfection: 70% Isopropyl Alcohol for 5 Minutes

Possible Applications:

Medical

• Flexible medical devices and components
• Medical devices requiring short-term mucosal membrane contact
• Firm tissue models to assist in surgeries

Compatible 3D Printers:

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download BioMed Flex 80A Resin V1 Data Sheet
