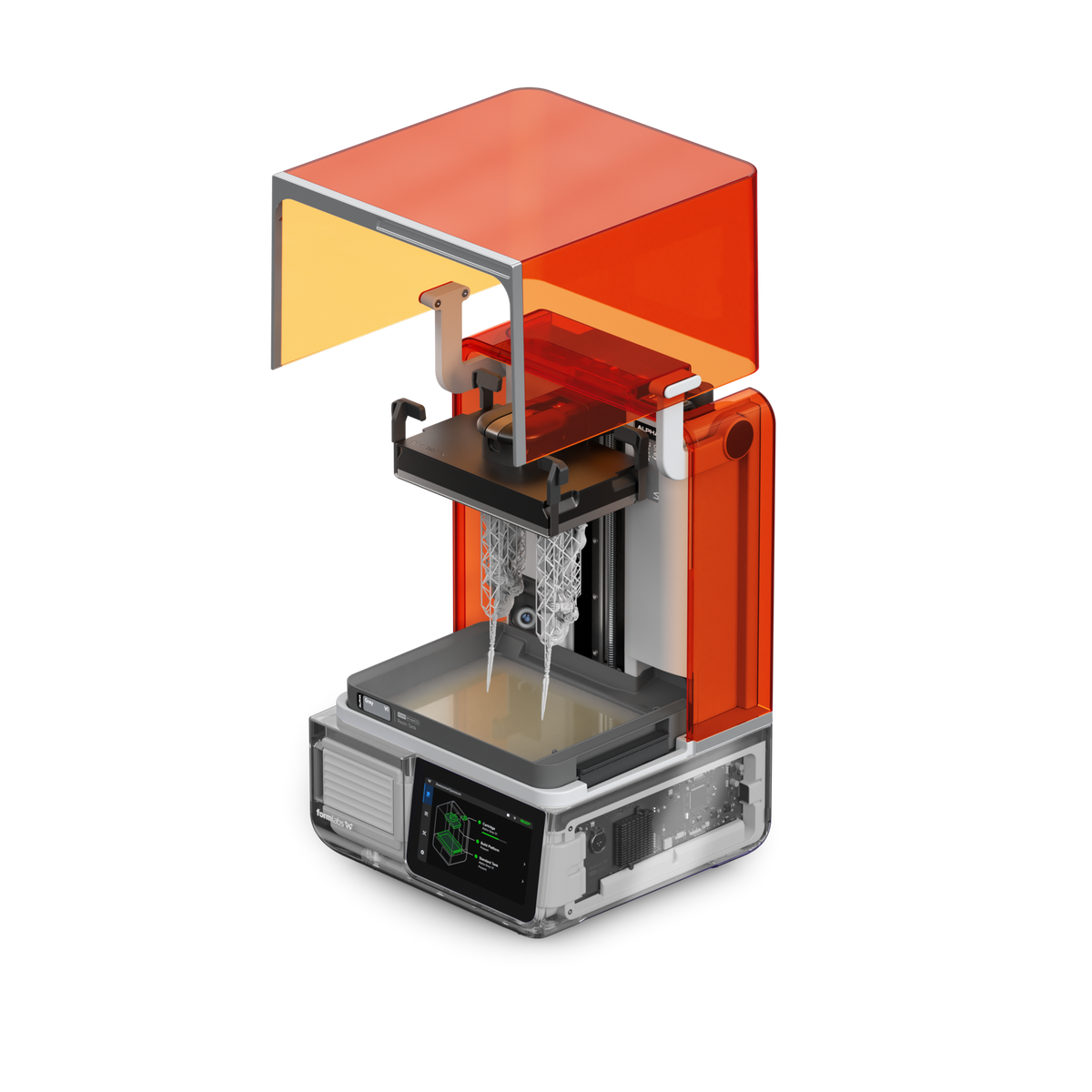

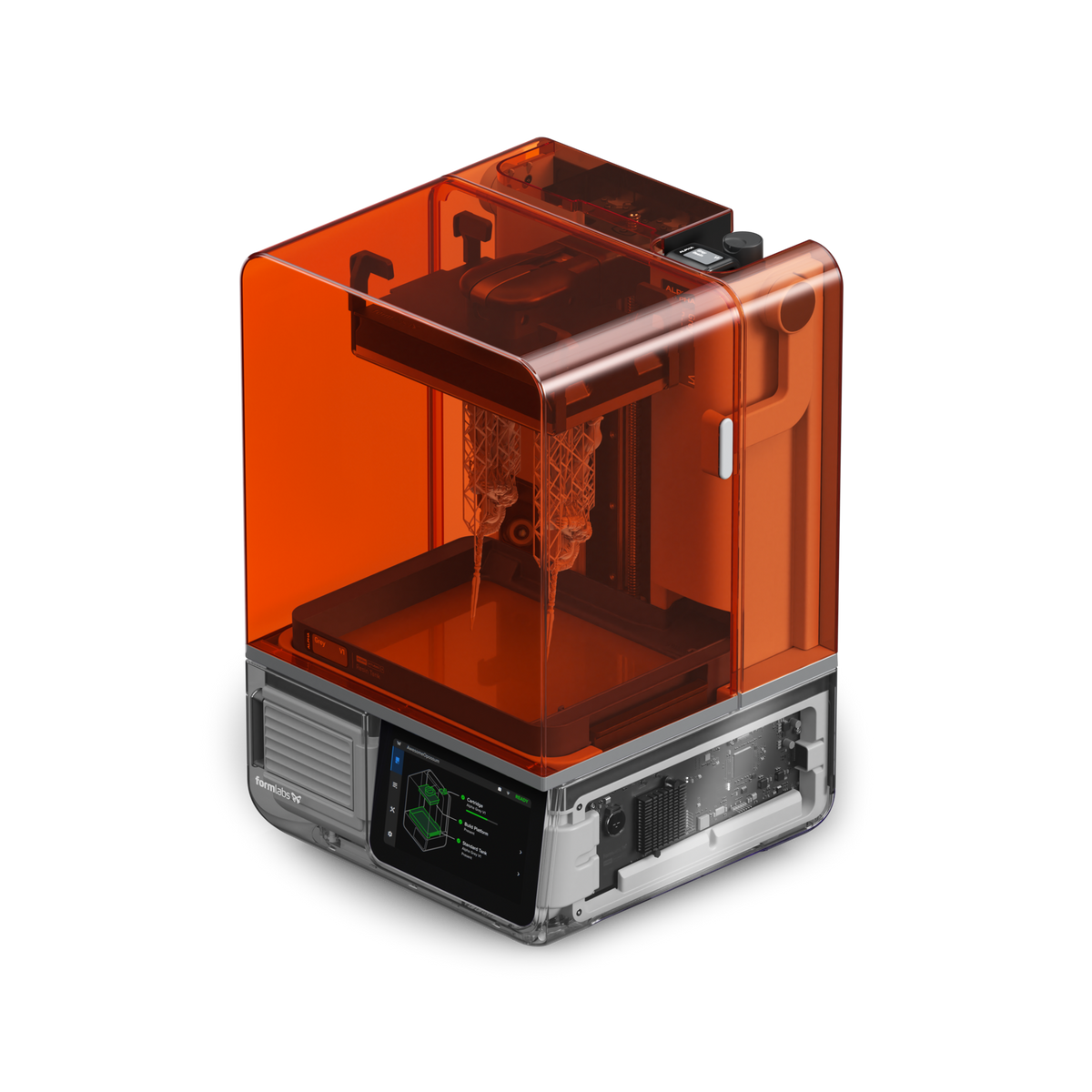

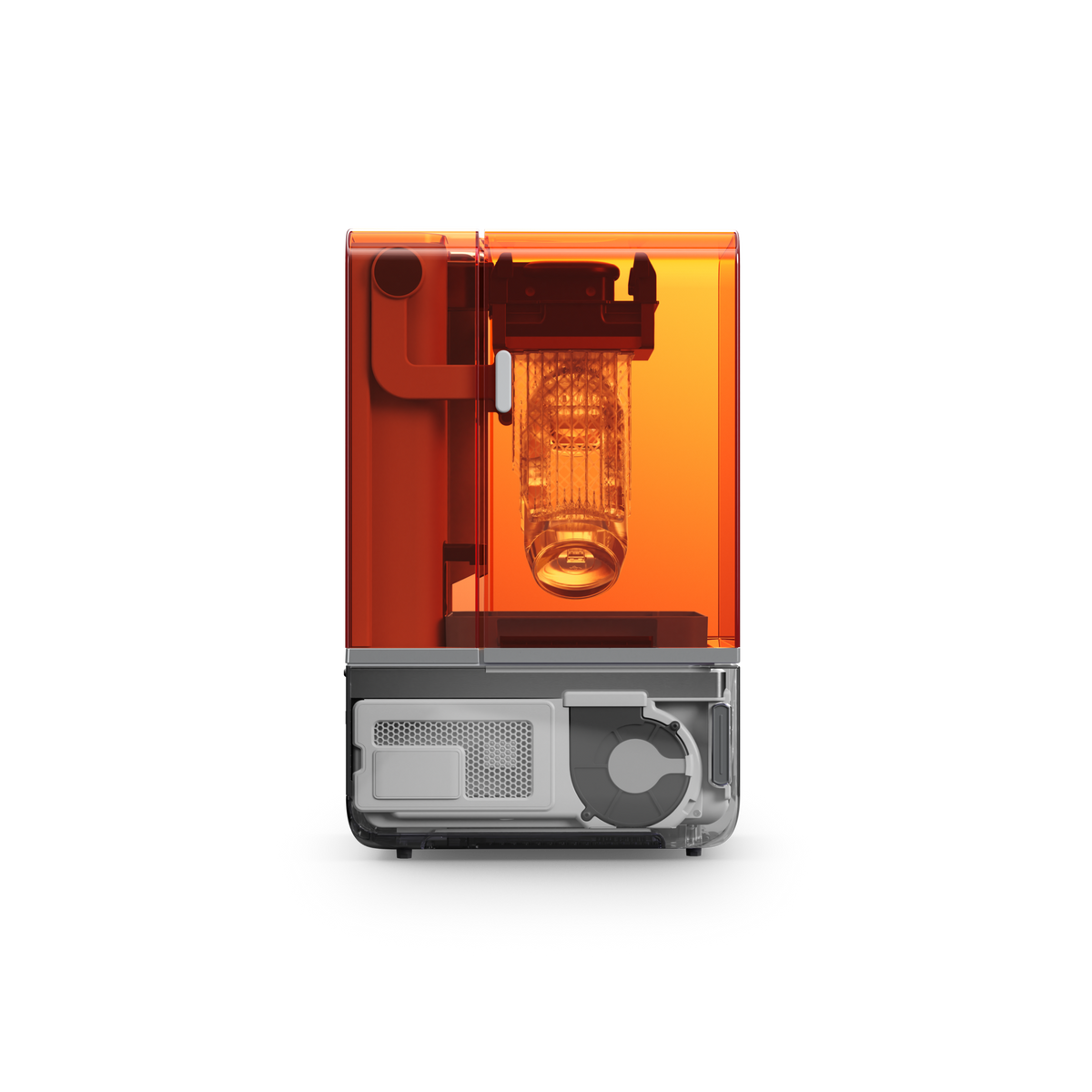

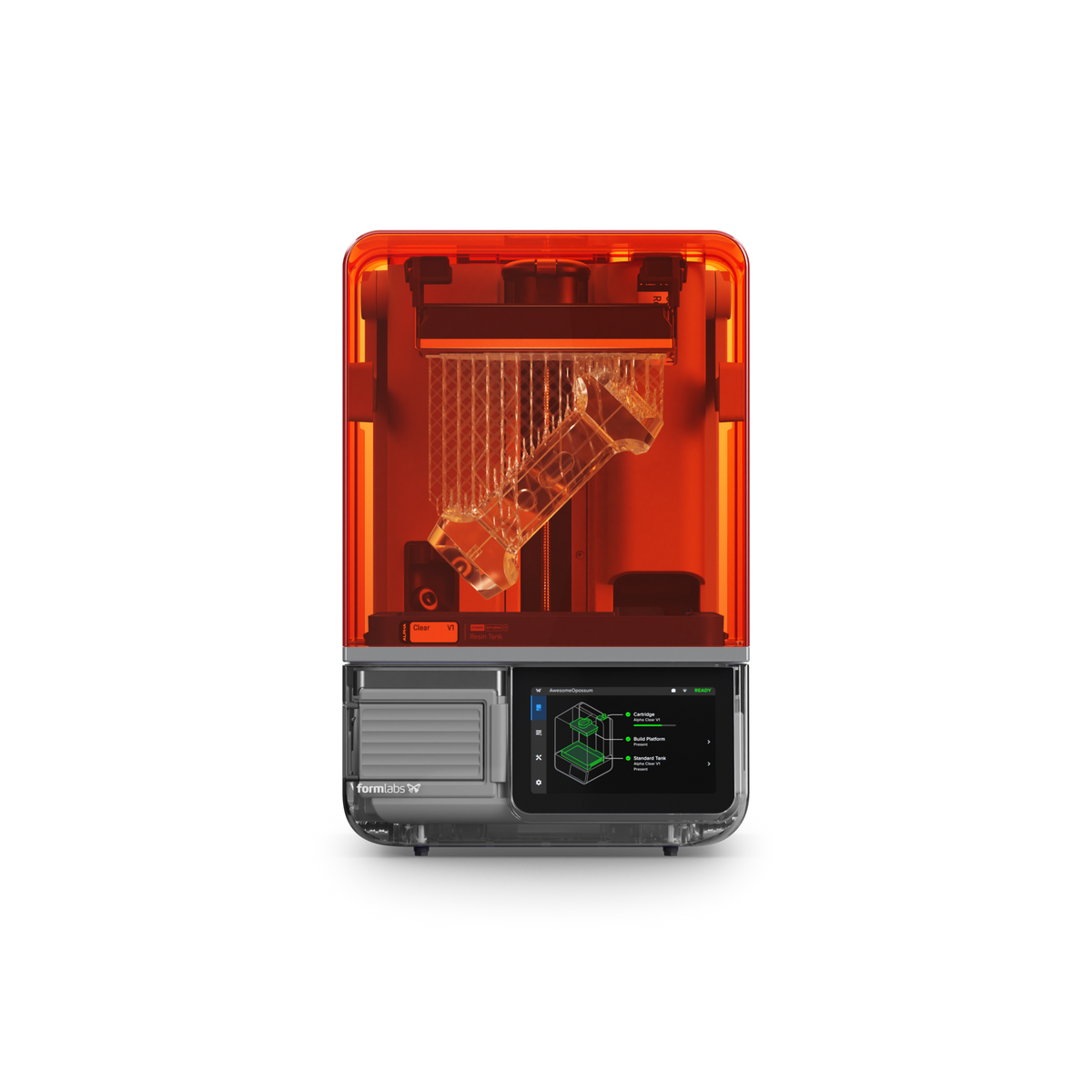

Formlabs® Form Studio 1™ 3D Printer
Formlabs® Form Studio 1™ 3D Printer
Formlabs® Form Studio 1™ 3D Printer
Formlabs® Form Studio 1™ 3D Printer

Formlabs® Form Studio 1™ 3D Printer

Starting at $699.00 USD

Form Studio 1 3D Printer

The Formlabs® Form Studio 1 3D Printer was designed to bring precision resin 3D printing into an accessible, affordable workflow. From detailed concept models to functional prototypes, the Studio 1 provides a platform for transforming digital designs into physical parts. Its integrated printing system and compatible materials support users who need consistent print quality without a complicated process. The Form Studio 1 is powerful, easy to use, and most jobs are completed in less than two hours.

The Form Studio 1 was inspired by traditional Stereolithography (SLA) and further engineered by the Formlabs team. Its supercharged Low Force Display™ (LFD) Print Engine uses a bottom-up printing method with a powerful backlight and high-resolution Light Processing Unit (LPU) to expose light from below the resin tank. The LPU screen features a proprietary texture that allows airflow under the resin tank, preventing suction with the tank and minimizing peel force.

As the build platform rises, resin is cured at the bottom of the tank, one layer at a time. Each new layer is gently released with the help of the resin tank's dual-film technology, which features a stretchy film to reduce peel force. As each layer is released from the tank, liquid resin flows into the area and is ready to be cured immediately.

To optimize the printing process, various sensors monitor resin levels, regulate resin temperature, detect debris, provide accurate print status updates, and enable remote monitoring. With the Formlabs Dashboard software (included) and built-in camera (which can be disabled for security), you can remotely manage your prints from just about anywhere.

The Form Studio 1 has a build volume of 20.0 x 12.5 x 23.5 cm (7.9 x 4.9 x 9.3 in).

Please note that the Form Studio 1 is estimated to start shipping late November - early December 2026.


Compatible Materials

Shop Form Studio 1 Resins


Features


Complete Accuracy
The Form Studio 1 is designed to produce intricate details and smooth surfaces. This printer offers top-tier accuracy and consistency with its 35-micron pixel size, dimensional tolerance ±0.15% XY, subpixel detail capture, and pre-tuned anti-aliasing. With its reduced peel forces and light-touch supports, you'll get a high-quality finish on every print.


Rapid Speed
From prototyping to fast iterations, this printer delivers impressive speed, finishing most prints in under two hours. The Form Studio 1 features a custom lens array delivering uniform optical power for fast curing, Release Texture V2 with flexible film tank technology, and max print speeds up to 130 mm/hr. Integrated sensors and remote monitoring allow you to step away and continue building multiple iterations per day.


High Success Rate
In addition to precision and speed, the Form Studio 1 3D printer features intelligent technologies designed to deliver an impressive 98% success rate. With the Low Force Display™ Print Engine's optical performance, 35 µm resolution, and low peel force, along with integrated sensors and easy-to-use software, the chances of having a failed print are drastically reduced.


Industry-Leading Resins & Open Compatibility
Take on any project with Formlabs' high-performance Alpha Resins or choose from validated general-purpose, clear, and model materials. Form Studio 1 resins offer UL GREENGUARD Gold certification for low VOC emissions (when used with the VOC Extractor) and ISO 10993 compliance for long-term skin contact. Plus, print with any third-party resin with no license fee.


Easy to Use & Safe
The Formlabs interface guarantees an easy-to-use experience every time, learn to print in just 10 minutes. Compatible with Windows and Mac, files can be sent via Wi-Fi, USB, or Ethernet. PreForm® software offers real-time printability checks and 1-click print setup for STL, OBJ, 3MF, STEP, and native CAD files (SOLIDWORKS, Creo, CATIA). Additionally, Alpha liquid resins score as a non-skin irritant under OECD 439 to minimize risks form incidental contact.


Details


Intelligent Control Systems

  • Manage your prints from virtually anywhere
  • Print Force Sensor optimizes print speed and print quality across materials and geometries
  • Resin Level Sensor measures the exact amount of resin in the Resin Tank
  • Resin Temperature Sensor monitors resin temperature
  • Printer Leveling Sensor ensures the printer is flat for accurate measurement and distribution of resin in the tank
  • Camera enables better remote monitoring and troubleshooting, but can be disabled for security


Backlight

  • Delivers uniform, highly collimated 6 mw/cm2 of optical power to the print plane
  • Features 28 LEDs, with a custom bug-eye lens array
  • Sends uniform 405nm light to expose and cure each resin layer


Light Processing Unit (LPU)

  • LPU uses a high-resolution LCD with a 35-micron pixel size, optimal for sharp details, subpixel resolution, smooth surface finishes, and accurate tolerances
  • Surface features Release Texture V2 to provide airflow, prevent suction, and reduce peel forces


Build Platform Flex

  • Quick-Release Technology allows you to bend the steel build plate
  • Instantly detach printed parts with zero scraping and reduced risk of damaged pieces
  • Attaches and detaches quickly with simple latch system


Flexible Film Resin Tank

  • Advanced flexible film construction for low peel force
  • Sturdy frame and reusable lid
  • Easy to use with a stackable design
  • Unmatched lifetime delivers consistent print performance for more than 75,000 layers with any Formlabs resin



Specifications


Compatibility and Software

  • Operating System: Mac OS X 10.12 and up / Windows 10, 64-bit (version 1809) and up
  • Connect to the printer via Wi-Fi, USB, or Ethernet
  • Accepts STL, OBJ, and 3MF file types
  • CAD Files Accepted: STEP, SOLIDWORKS, PTC Creo, JT, CATIA V5
  • Software: PreForm® Print Preparation Software included; Formlabs Dashboard & Form Mobile App for remote management


Equipment Specs

  • 3D Printer Dimensions: 34.2 x 31.5 x 50.2 cm (13.5 x 12.4 x 19.8 in)
  • 3D Printer Weight: 14.3 kg (31.5 lb)
  • Technology: Masked Stereolithography (MSLA)
  • Build Volume (W x D x H): 20.0 x 12.5 x 23.5 cm (7.9 x 4.9 x 9.3 in)
  • Layer Thickness (Z Resolution): 25 - 250 microns
  • Resolution: 35 microns
  • Dimensional Tolerance: ±0.15% XY
  • Average 3D Print Speed: (100 ¬µm layer height) 40 mm/hour
  • Maximum 3D Print Speed: 130 mm/hour
  • Resin Tank Lifetime: 75,000+ layers with any Formlabs material


Warranty and Service

One-year warranty included. Paid service and extended warranty options are available.


Possible Applications

  • Presentation-ready concept models
  • Initial prototypes for shape and feel
  • Rapid design iterations
  • Form and fit prototyping
  • Rapid design iterations
  • Display-ready parts with rich matte finishes
  • Optically clear components and see-through assemblies
  • Miniatures, figurines, and fine-detail artistic models
  • Wearables and skin-contact applications (ISO 10993 compliant)
  • Indoor office, classroom, studio, and desktop production
  • Functional mechanical prototypes and assemblies


Packages

The Basic Package Includes:


The Flex Package Includes:
