Product Description

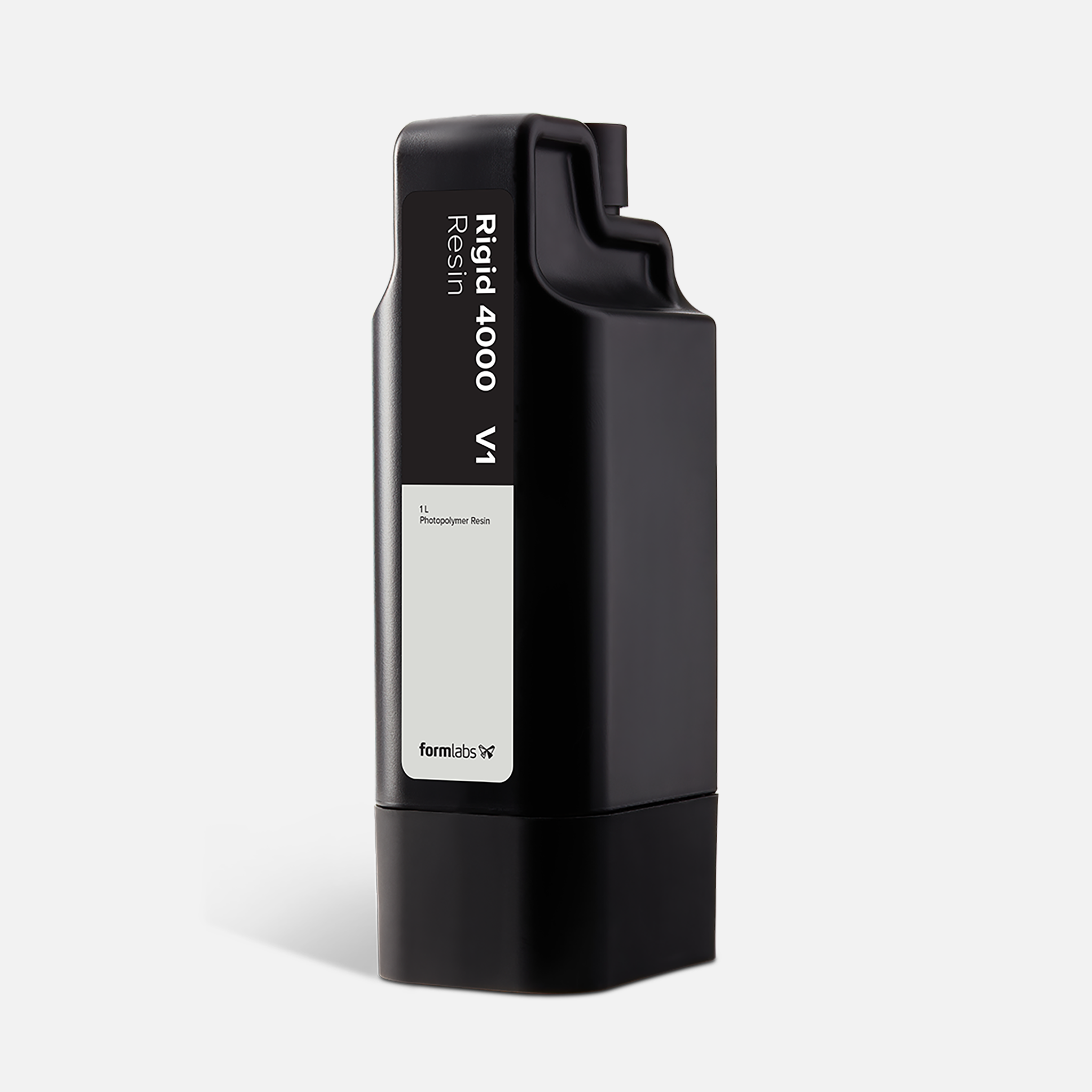

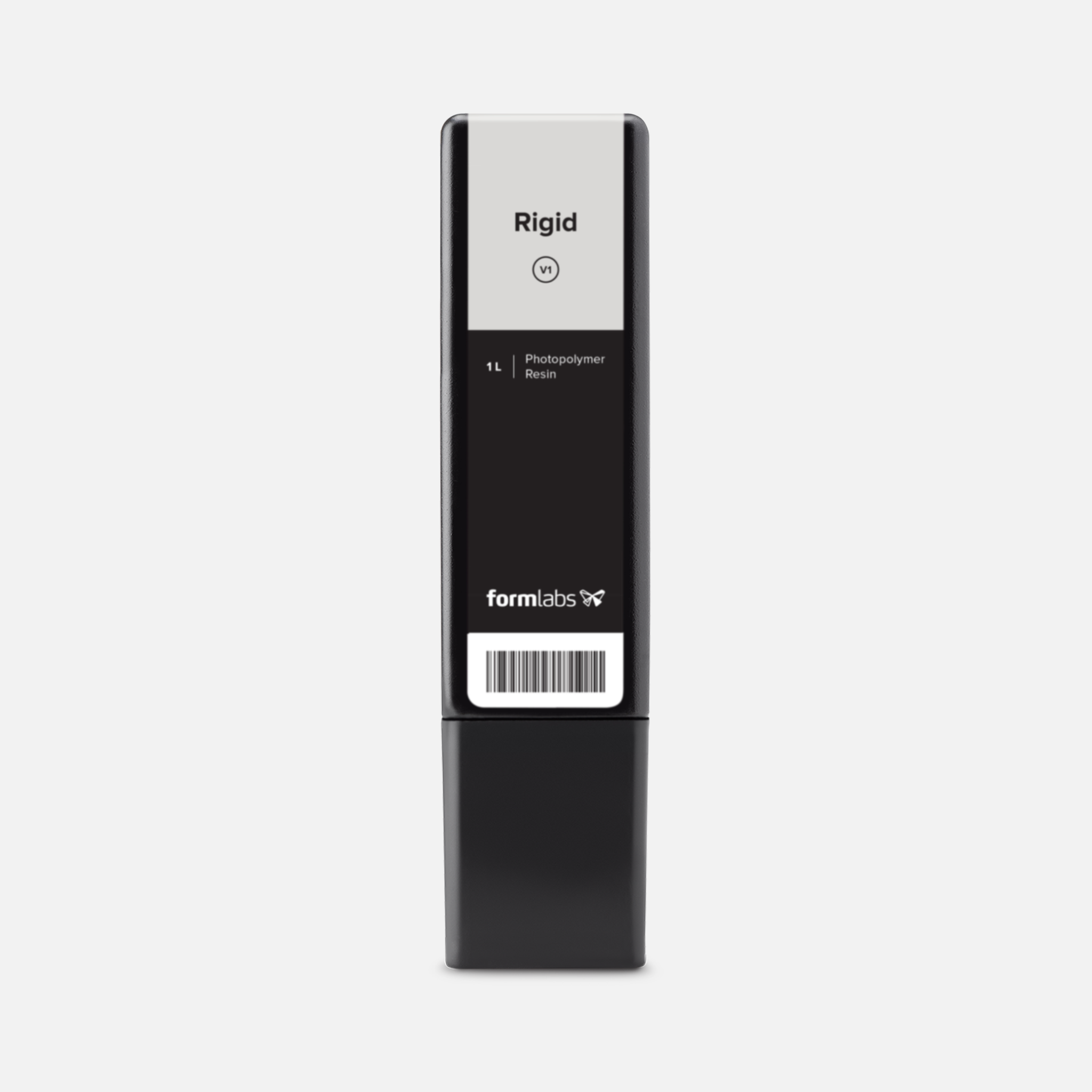

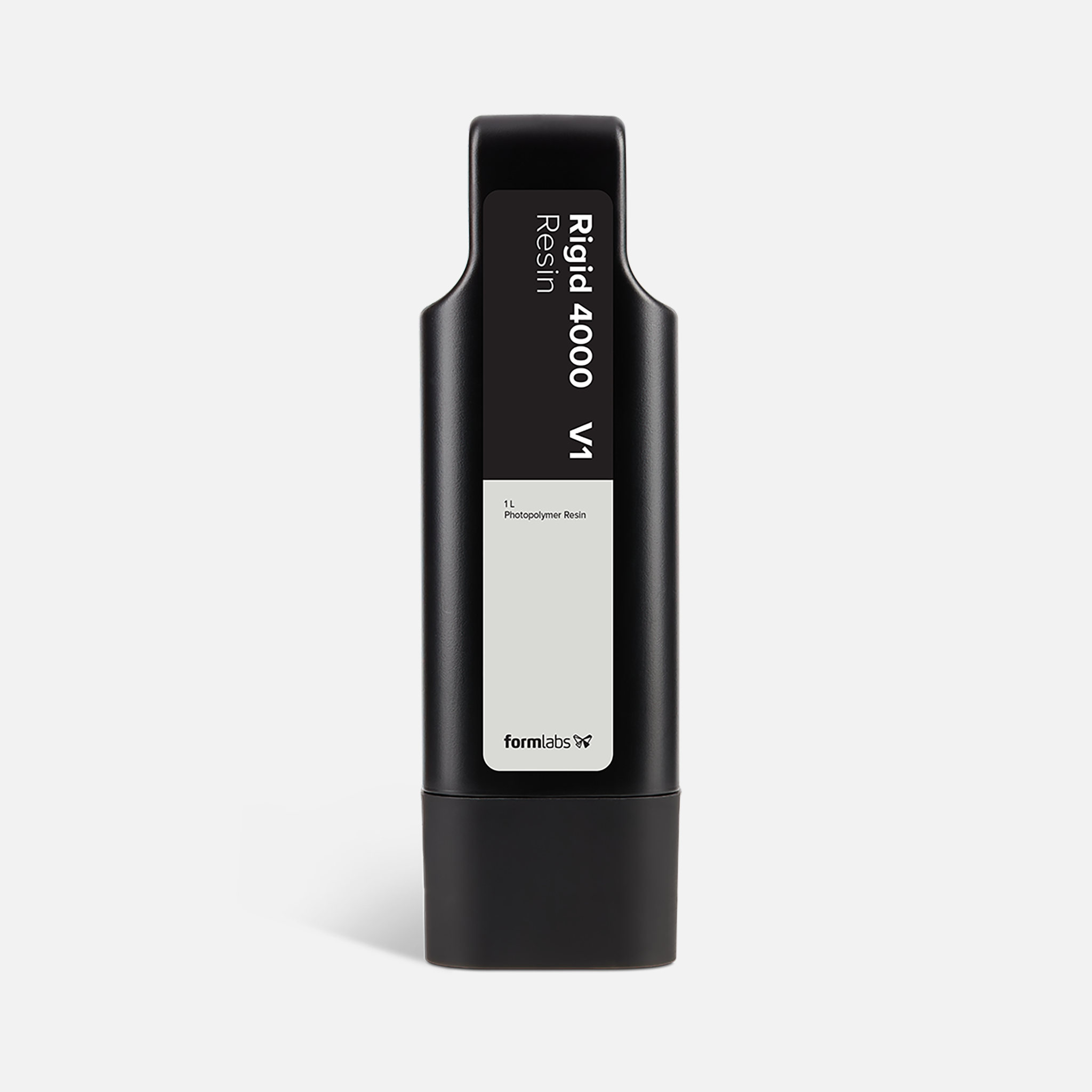

Rigid 4000 Resin V1 is a high-strength industrial resin intended for engineering applications. This resin simulates the stiffness of PEEK with its superior tensile strength and flexural properties. It is available in a 1 liter volume and is compatible with several Formlabs SLA printers, including Form 2, Form 3, Form 3+, Form 3B, Form 3B+, Form 4, Form 4B, Form 4L, and Form 4BL.

Resin Color: White

Mechanical Properties:

• Ultimate Tensile Strength: 69.0 MPa (10007.6 psi)
• Tensile Modulus: 410.0 MPa (59465.5 psi)
• Elongation at Break: 5.3%
• Flexural Strength: 105.0 MPa (15229 psi)
• Flexural Modulus: 340.0 MPa (49312.8 psi)
• Notched Izod: 23.0 J/m (0.431 ft-lb/in)
• Heat Deflection Temp. at 0.45 MPa: 77.0°C (170.6°F)
• Thermal Expansion 0-150°C (32-302°F): 6.3 μm/m/°C (35.0 µin/in-°F)

Possible Applications:

Engineering

• Thin-walled parts
• Mounts and brackets
• Jigs and fixtures

Compatible 3D Printers:

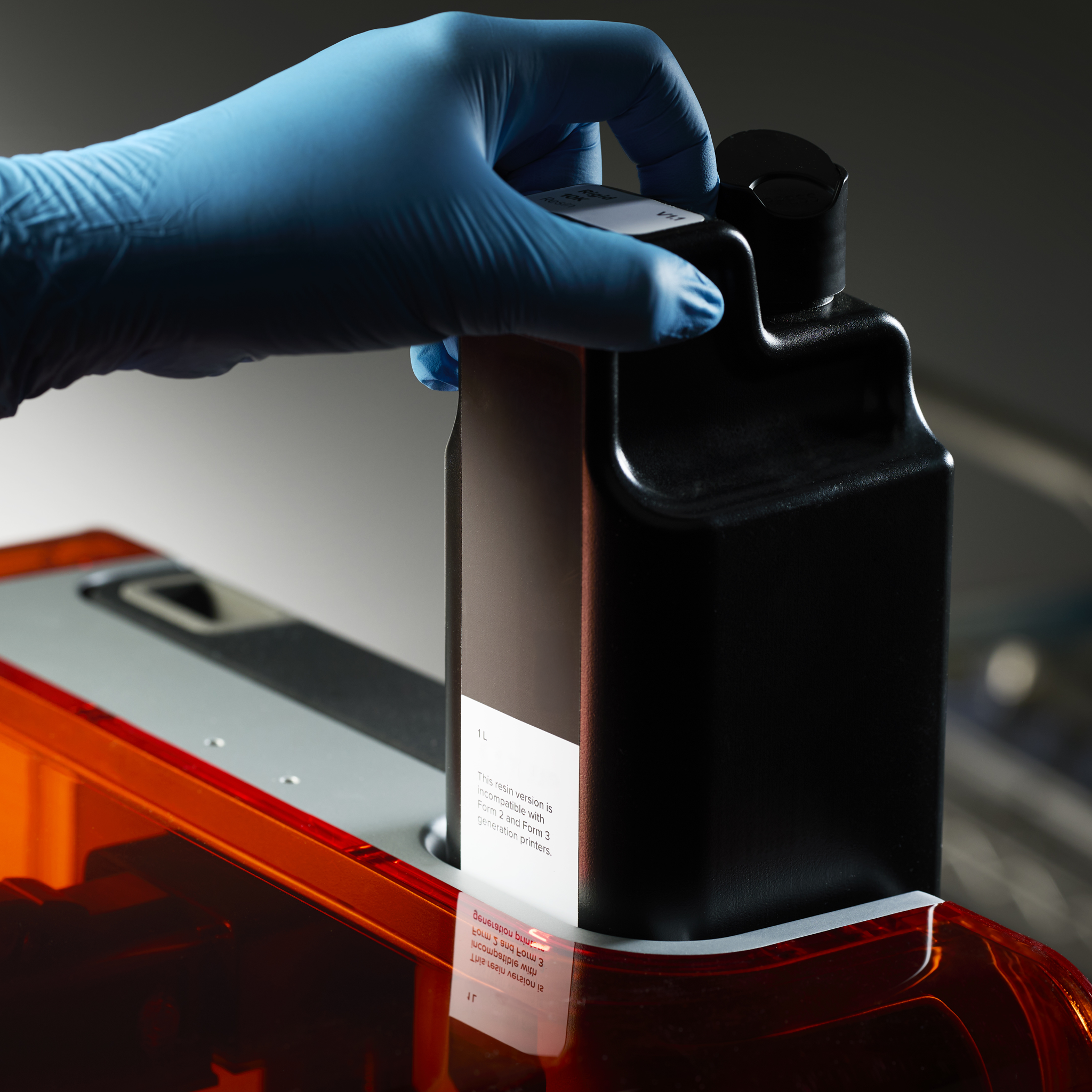

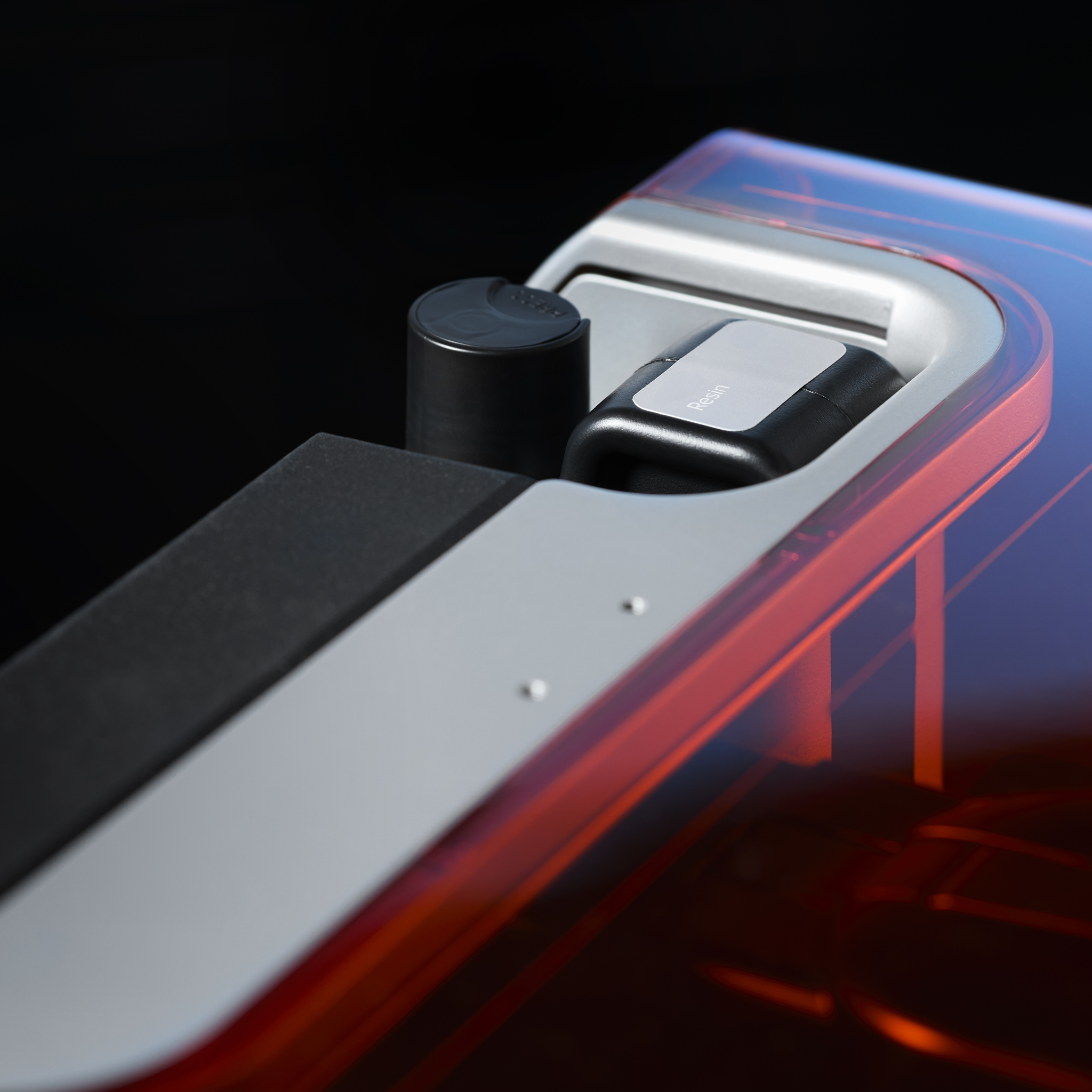

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download Rigid 4000 Resin V1 Data Sheet
