Product Description

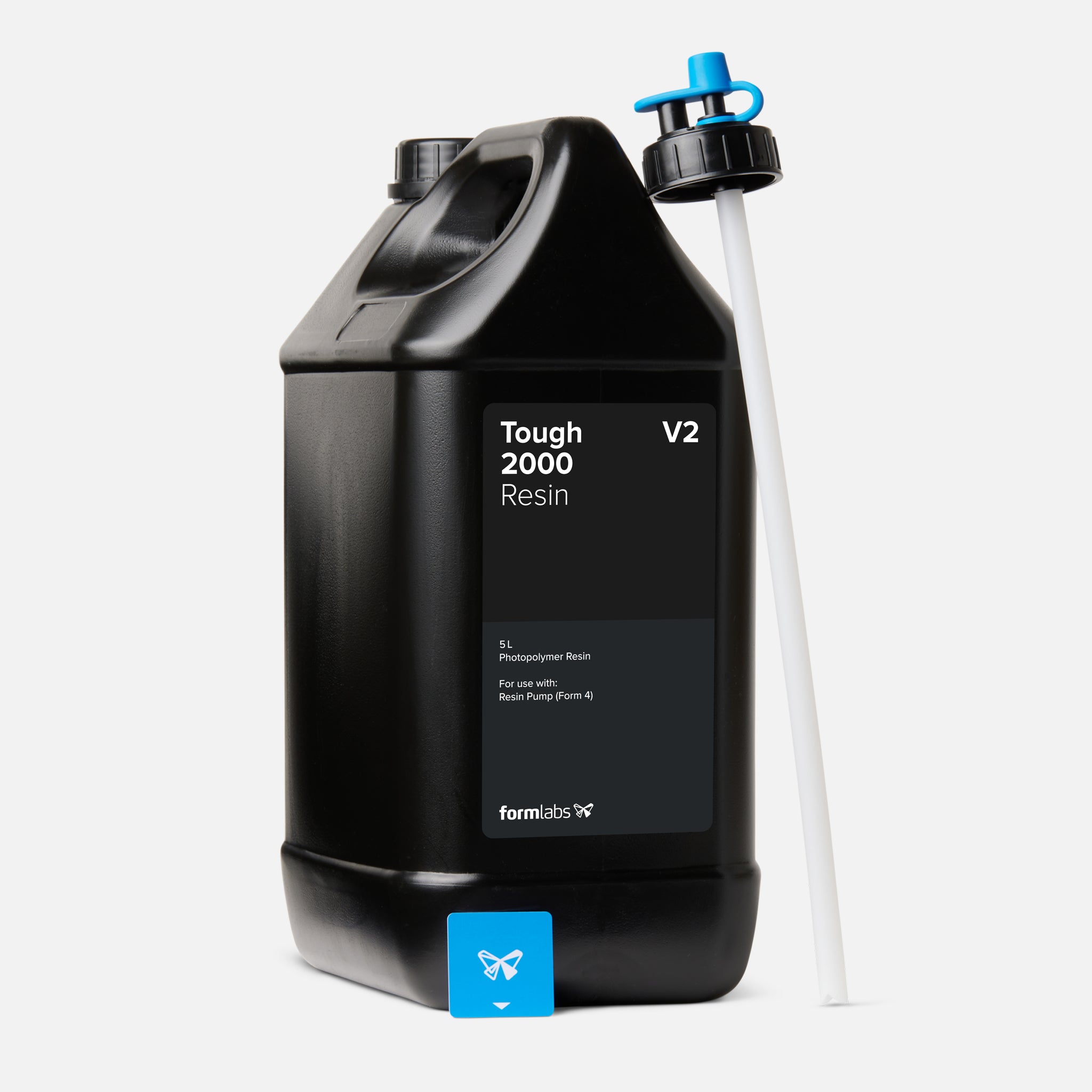

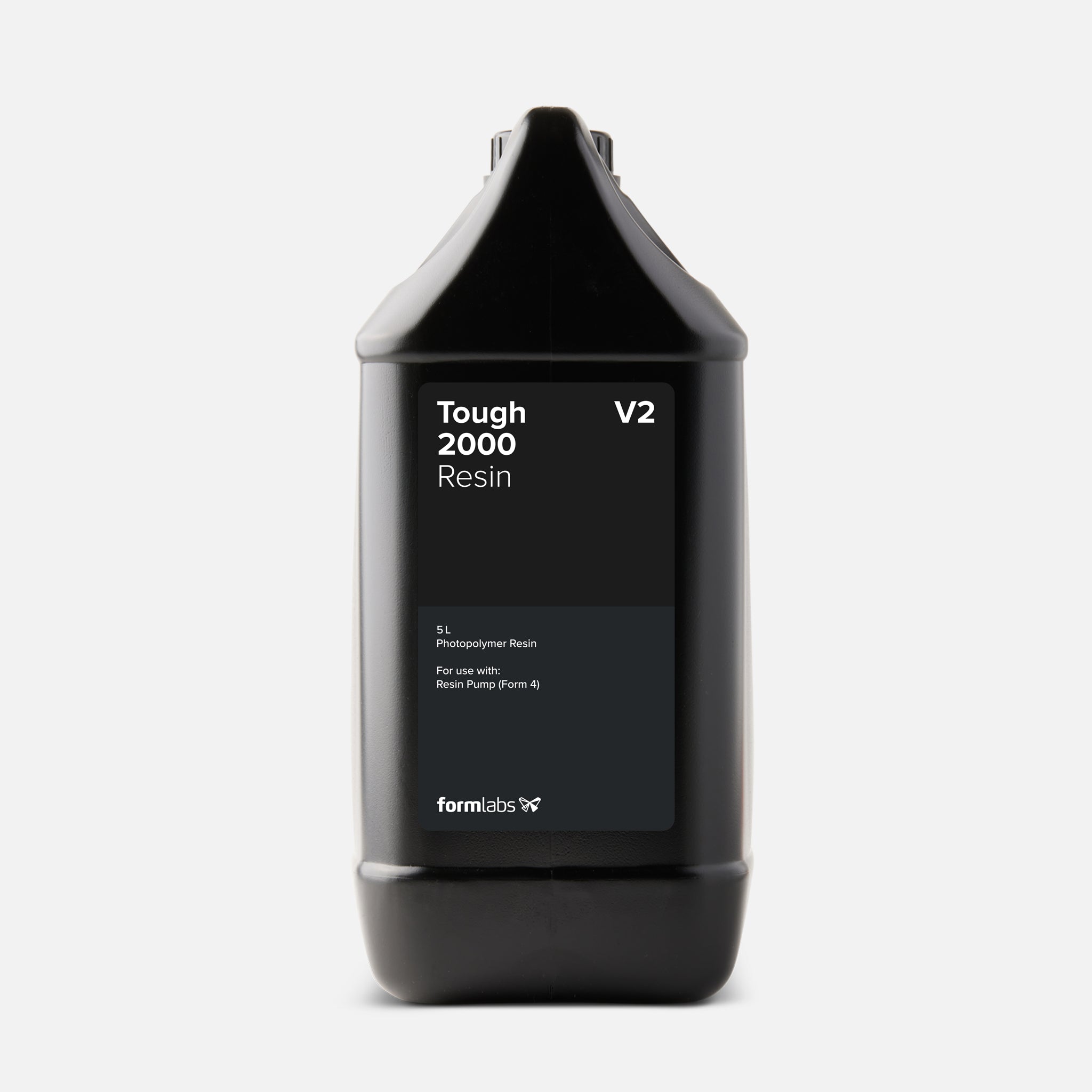

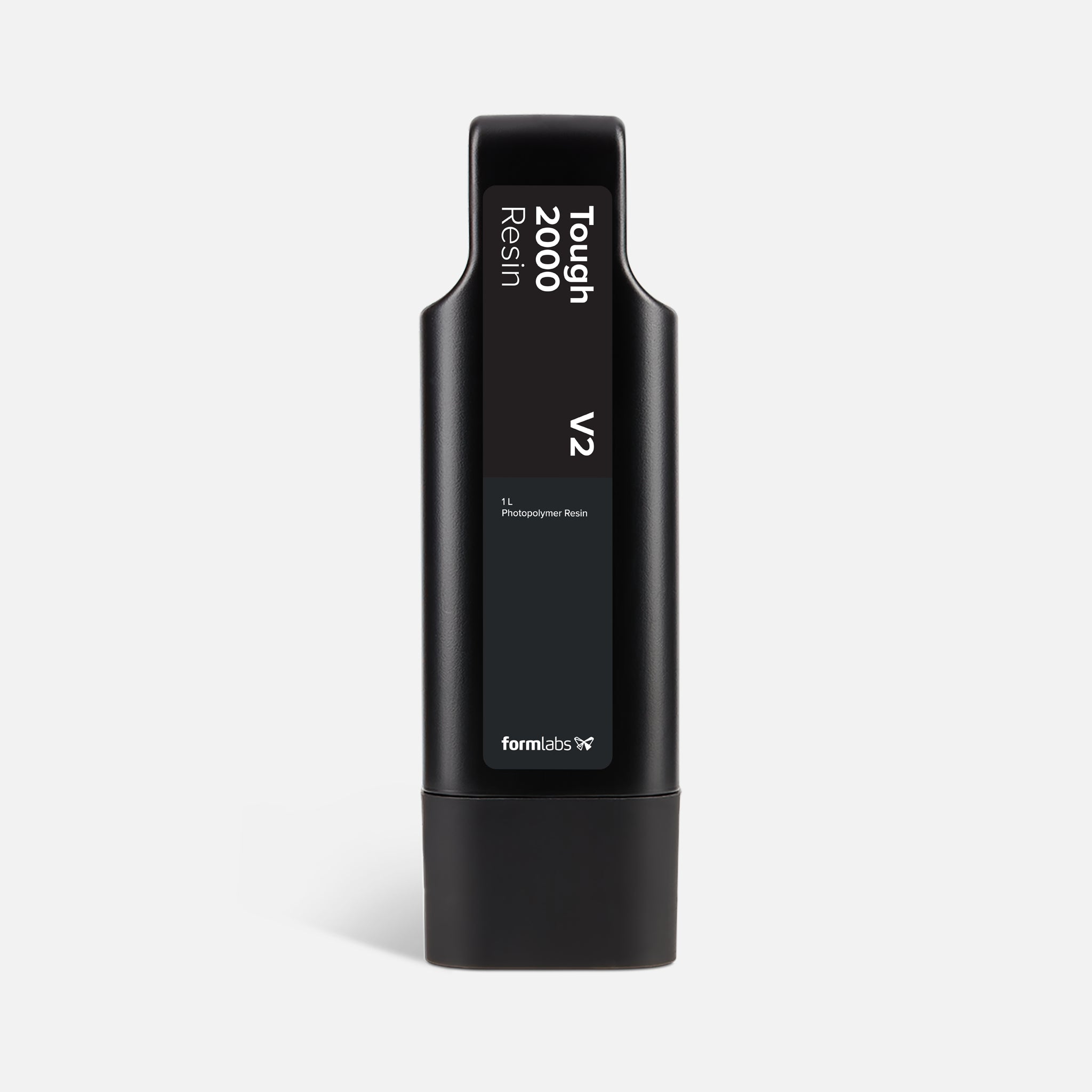

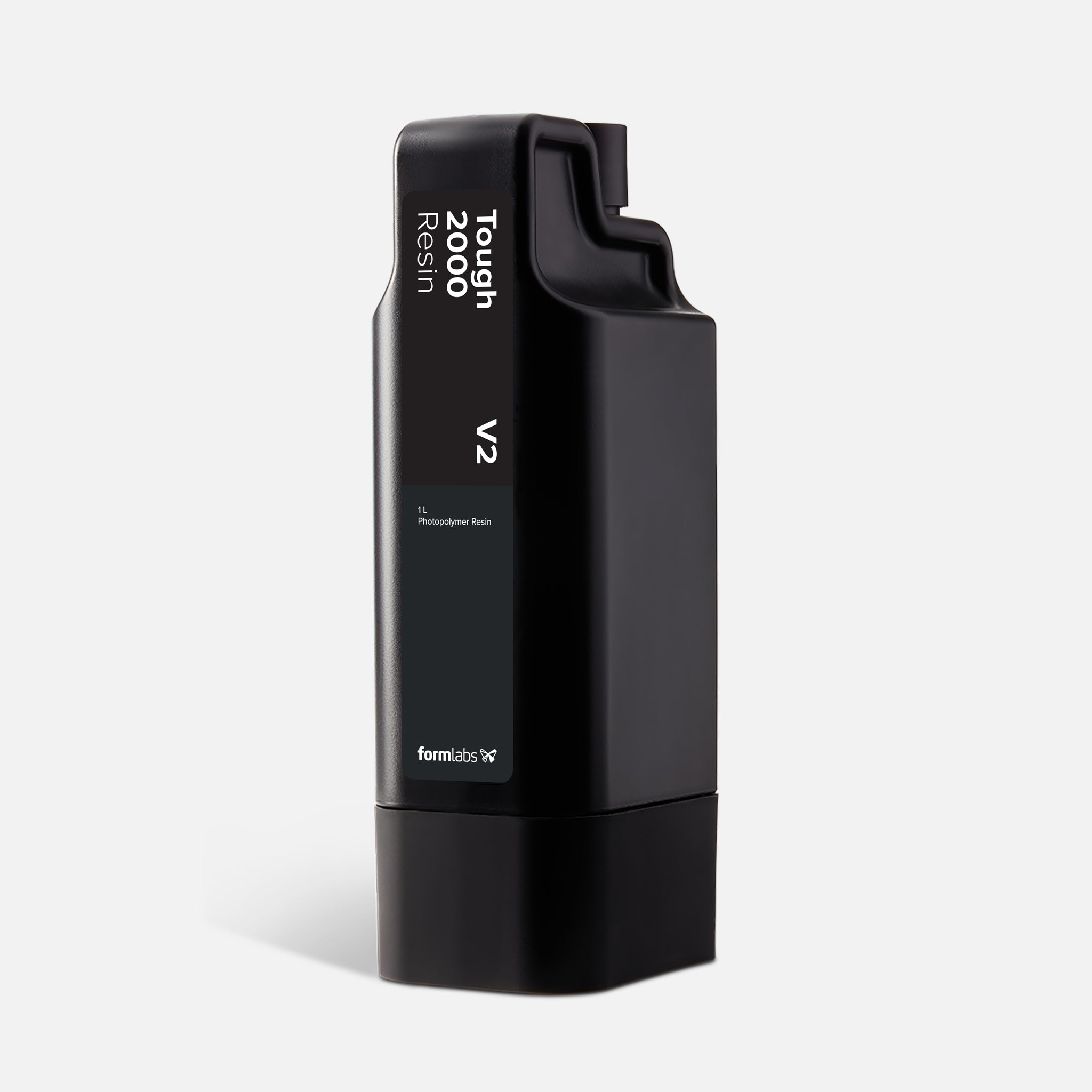

Tough 2000 Resin V2 offers the stiff, sturdy toughness of ABS material with smooth surfaces and crisp edges. It has thermal stability and tensile properties, and is ideal for creating engineering-grade parts that require high performance under stress. This material is available in both 1-liter and 5-liter volumes and is compatible with several Formlabs SLA printers, including Form 4, Form 4B, Form 4L, and Form 4BL.

Tough 2000 Resin V2 is a new Form 4 formulation that delivers 3x higher fracture toughness, material longevity, improved temperature resistance, and aesthetics compared to the previous versions.

Resin Color: Dark Gray

Mechanical Properties:

• Ultimate Tensile Strength: 40.4 MPa (5802.0 psi)
• Tensile Modulus: 1800.0 MPa (261.0 ksi)
• Tensile Strength at Yield: 40.4 MPa (5802.0 psi)
• Elongation at Yield: 4.5%
• Elongation at Break: 79.0%
• Flexural Strength: 67.0 MPa (9718.0 psi)
• Flexural Modulus: 1701.0 MPa (247.0 ksi)
• Notched Izod: 25.0 J/m (0.47 ft-lb/in)
• Unnotched Izod: 325.0 J/m (6.1 ft-lb/in)
• Notched Charpy: 2.4 kJ/m² (1.14 ft-lb/in²)
• Unnotched Charpy: 31.0 kJ/m² (14.75 ft-lb/in²)
• Heat Deflection Temp. at 0.45 MPa (65.2 psi): 70.0°C (158.0°F)
• Heat Deflection Temp. at 1.8 MPa (261.1 psi): 57.0°C (134.6°F)
• Thermal Expansion 0-150°C (32-302°F): 134.2 microns/m/°C (74.6 microinches/in-°F)

Possible Applications:

Engineering

• Prototypes and end-use parts that don't shatter, wear, or deform under stress
• Fixtures, jigs, low bearing parts needed for long-term use
• Housings and enclosures with high temp and creep resistance
• Sturdy snap-fit assemblies

Compatible 3D Printers:

• Form 4
• Form 4B
• Form 4L
• Form 4BL

Redesigned Form 4 Resin Cartridge:

• Faster dispensing
• Fill an empty tank in 2-8 minutes with most resins
• Valve system is 5-10x faster to fill than Form 3
• Cartridge body uses less plastic, resulting in a 63% reduction in plastic waste
• Redesigned cartridge takes up 30% less shelf space

Technical Data Sheet:

Download Tough 2000 Resin V2 Data Sheet
