Compatible 3D Printers

• Origin Series (P3 Technology)
• Origin One
• Origin One Dental
• Origin One Industrial
• Origin One Local Printer
• Origin Two Dental
• Origin Two Industrial
• Origin Two Local Printer
• Origin One+
• Origin One+ Dental
• Origin One+ Industrial
• Origin One+ Local Printer

Product Description

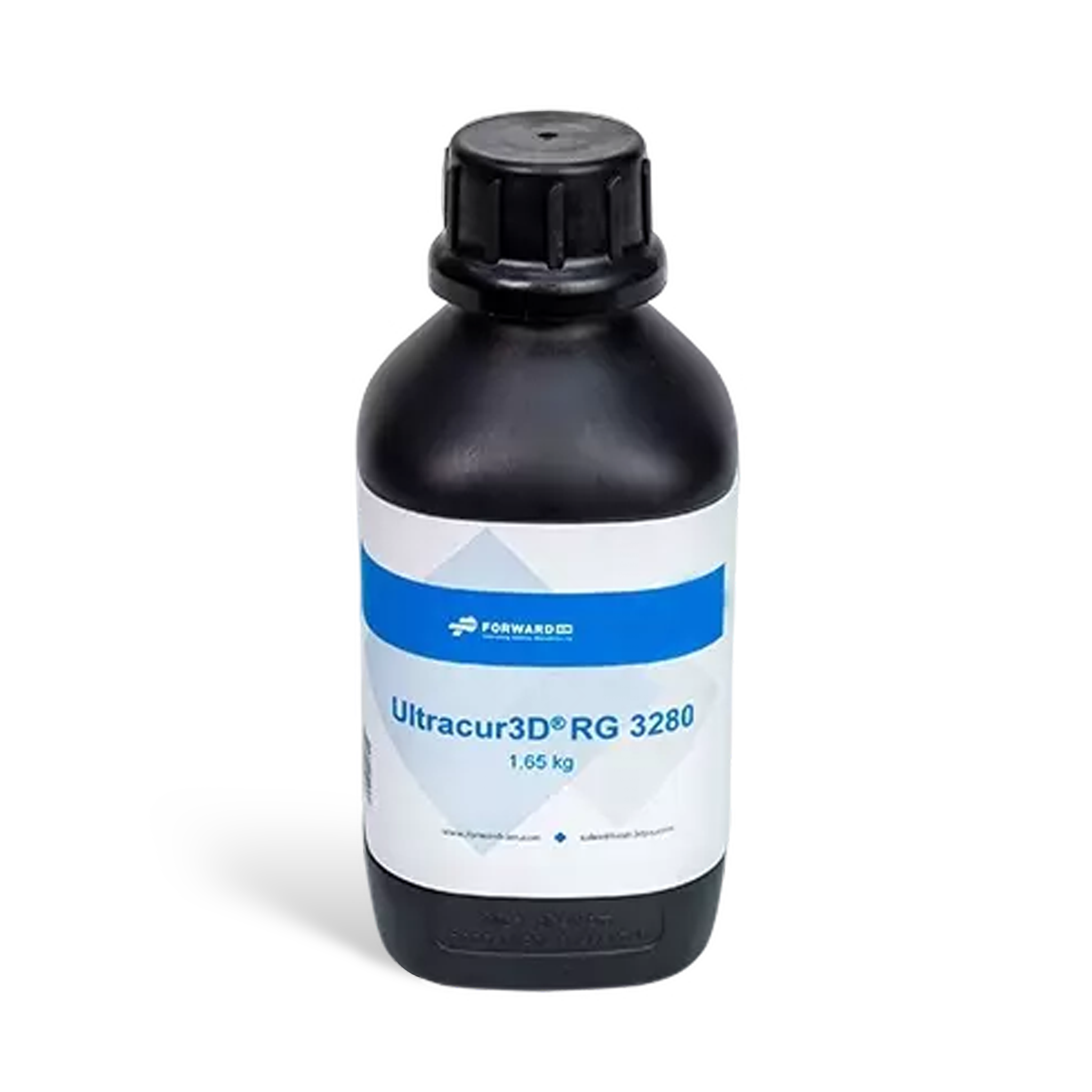

Ultracur3D® RG3280 by Forward AM is a ceramic-filled material that is very stiff and temperature resistant. Even with its high particle loading, it is easy to handle and 3D print. It is a perfect resin for tooling, molding, and wind tunnel testing.

WARNING: This product can expose you to chemicals including Toluene, is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Alternate Product Name: P3 ORIGIN 3280 (1 X 1.65 KG)

Resin Color: White

Mechanical Properties:

• Ceramic Content: ≈ 65 wt% silica
• Viscosity, 25°C (77°F): 300 mPas
• Viscosity, 30°C (86°F): 230 mPas
• Density (Printed Part): 1.73 g/cm³
• Density (Liquid Resin): 1.65 g/cm³
• Ultimate Tensile Strength: 87 MPa (12.63 ksi)
• E Modulus: 10600 MPa (290 ksi)
• Elongation at Break: 1.3%
• Poisson's Ratio: 0.31
• Flexural Modulus: 11200 MPa (1624.4 ksi)
• Flexural Strength: 129 MPa (18.7 ksi)
• Notched Izod (Machined) 23°C (73°F): 24 J/m
• Notched Charpy (Machined) 23°C (73°F): 0.98 kJ/m²
• Glass Transition Temperature: 164°C (372°F)
• Shore Hardness: D
• Water Absorption, Short-Term (24 Hours): 0.29%
• Water Absorption, Long-Term (3000+ Hours): 2.6%

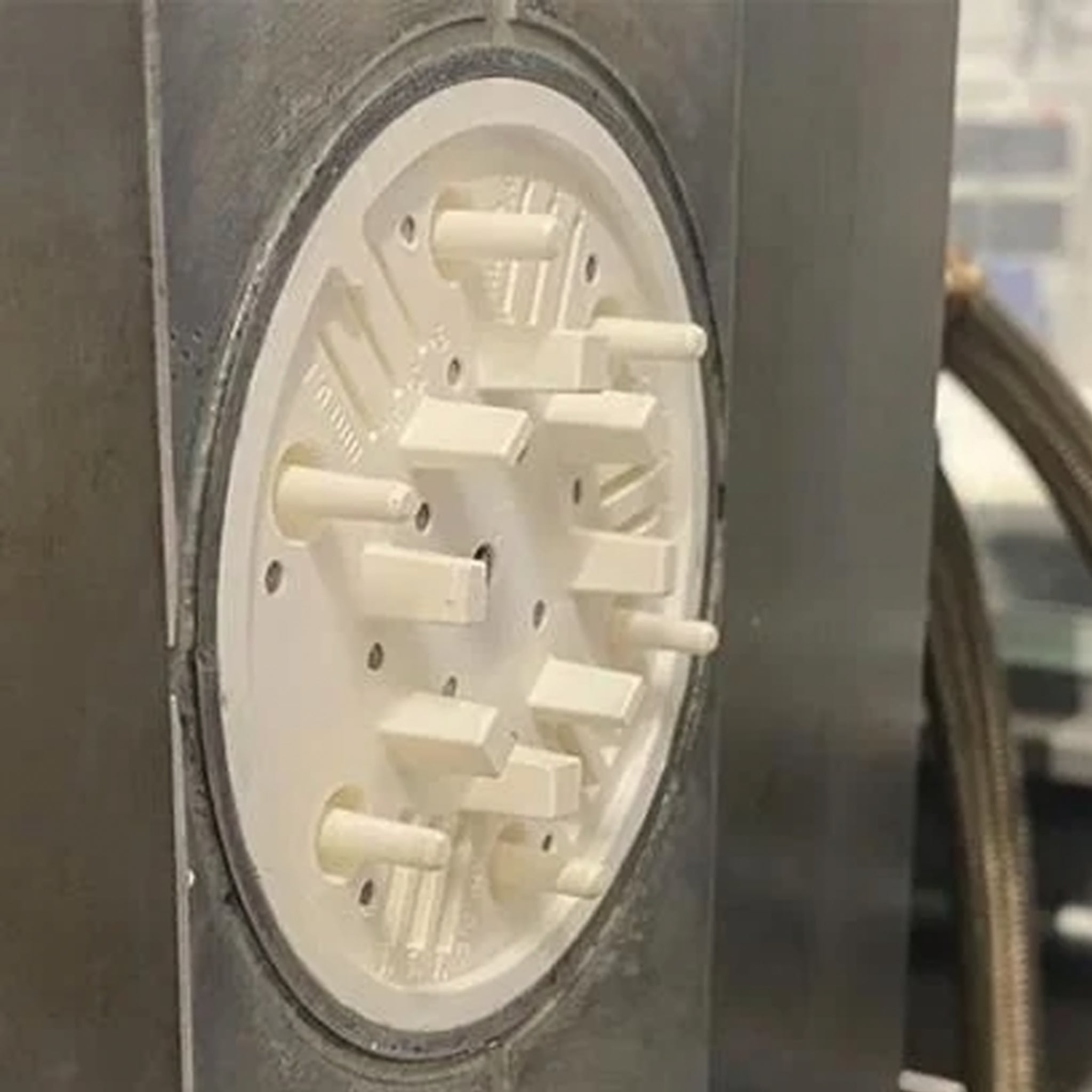

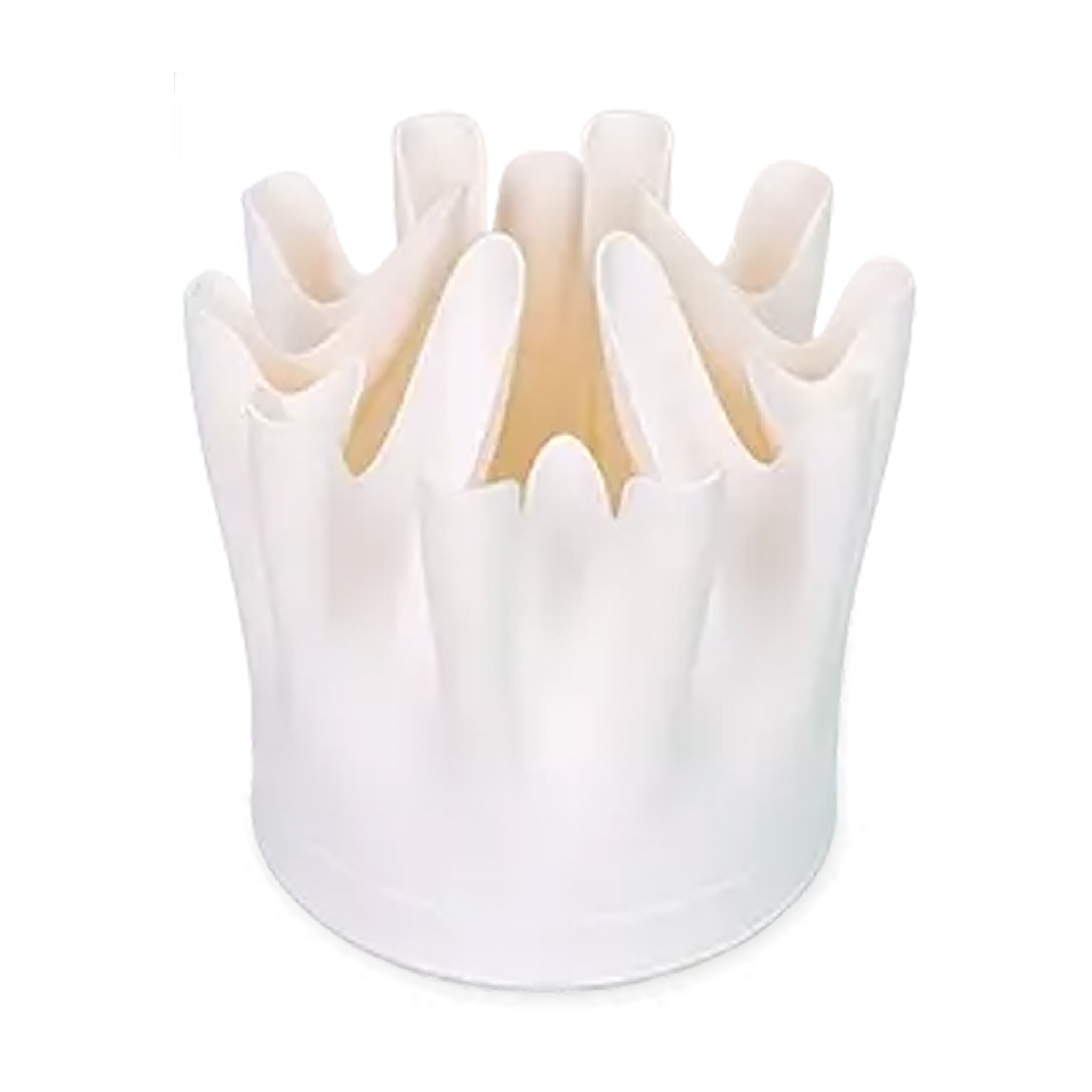

Possible Applications:

Automotive, Transportation, Consumer Products

• Injection Molding Inserts
• Tooling
• Functional Prototypes
• Test Models
