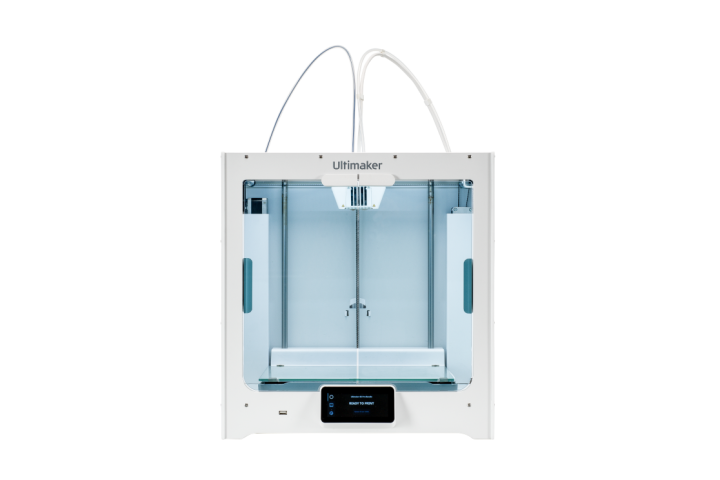

UltiMaker® S5 3D Printer

Product Description

The UltiMaker® S5 3D printer combines reliable performance, versatile material options, and a connected workflow to help your team move from design to finished part. With dual extrusion and a generous build volume, the S5 gives you the flexibility to produce larger prototypes or print multiple components in a single job.

Designed to keep your projects moving, the S5 takes care of the details that make a difference. Advanced active bed leveling helps establish a reliable first layer, while glass doors help control airflow around your print. Dual filament flow sensors pause the job and notify you when material runs out, so you can address the interruption instead of losing progress.

Prepare your model in UltiMaker Cura, start your print using the color touchscreen, and check progress with the internal camera. The open filament system supports a wide range of materials, including composites, while the UltiMaker platform brings together print preparation, printer management, and learning resources. Digital Library tools help you store and share part files, with an IT knowledge base and e-learning courses available to support your team.

The S5 has a build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 in).

Features

Reliable Printing, Less Hands-On Setup
Advanced active leveling helps create consistent first-layer adhesion without manual leveling. Glass doors help control airflow, and dual filament flow sensors pause printing and notify you if material runs out.

Room for Bigger Ideas
Take on larger parts or arrange a batch of smaller components in the 330 x 240 x 300 mm build volume. Whether you're checking a prototype's fit or preparing multiple iterations, the S5 gives you room to work.

Flexible Materials and Dual Extrusion
Choose materials to suit your application with an open filament system that supports a wide range of options, including composites. A dual extrusion print head with automatic nozzle lifting and swappable print cores helps you adapt your setup to different projects.

Simple Setup and Touchscreen Control
Get started with a straightforward first-time setup, NFC material recognition, and an intuitive 4.7-inch color touchscreen. Designed for minimal training, the S5 helps new users get printing after a 30-minute introduction.

Connected Monitoring and Management
Check print progress with the internal camera and manage printers through UltiMaker Digital Factory. Wi-Fi, Ethernet, and USB give your team flexible ways to transfer files.

A Complete UltiMaker Workflow
Bring software, materials, and printers together in one ecosystem. UltiMaker Cura supports print preparation, while Digital Factory and UltiMaker Essentials provide tools for printer management and enterprise workflows. File-sharing resources, e-learning, and IT guidance help your team build confidence as your printing needs grow.

What's Included

• (2) UltiMaker AA 0.4 mm Print Cores
• (1) UltiMaker BB 0.4 mm Print Core
• (1) Spool of UltiMaker Tough PLA, 750 g
• (1) Spool of UltiMaker PVA, 750 g
• (1) Glass build plate
• (1) Glue stick
• (1) NFC-enabled reel holder assembly
• (1) NFC spool holder
• (1) 2 mm hex screwdriver
• (1) Ethernet cable
• (1) USB stick
• (1) Oil and grease for maintenance
• (1) Calibration card
• (1) Power cable

Specifications

Equipment Specs

• Technology: Fused Deposition Modeling (FDM)
• Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
• Assembled Dimensions (W x D x H): 495 x 585 x 780 mm (19.5 x 23 x 30.7 in)
• Weight: 29.1 kg (64.2 lb)
• Compatible Filament Diameter: 2.85 mm
• Maximum Power Output: 500 W

Printer Properties

• Layer Resolution, 0.25 mm Nozzle: 60–150 microns
• Layer Resolution, 0.4 mm Nozzle: 20–200 microns
• Layer Resolution, 0.6 mm Nozzle: 20–300 microns
• Layer Resolution, 0.8 mm Nozzle: 20–600 microns
• XYZ Resolution: 6.9, 6.9, 2.5 microns
• Feeder: Dual-geared feeder, reinforced for composite materials
• Display: 4.7-inch (11.9 cm) color touchscreen
• Print Head: Dual extrusion with automatic nozzle lifting and swappable print cores
• Nozzle Diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Operating Parameters

• Nozzle Temperature: 180–280°C
• Nozzle Heat-Up Time: Less than 2 minutes
• Operating Sound: Less than 51 dBA
• Build Plate Leveling: Advanced active leveling
• Build Plate: Glass
• Build Plate Heat-Up Time: Less than 5 minutes, from 20°C to 60°C
• Operating Ambient Temperature: 15–32°C (59–90°F)
• Non-Operating Temperature: 0–32°C (32–90°F)

Compatibility and Software

• Supplied Software: UltiMaker Cura for print preparation, UltiMaker Digital Factory for printer management, and UltiMaker Essentials for enterprise-grade online tools
• Supported Operating Systems: macOS, Windows, and Linux
• Plugin Integration: SOLIDWORKS, Siemens NX, Autodesk Inventor
• UltiMaker Cura File Types: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
• Printable Formats: G, GCODE, GCODE.gz, UFP
• File Transfer: Wi-Fi (2.4 GHz), Ethernet, USB

Safety and Compliance

• Certifications and Compliance: CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC
• Designed for safe unattended professional use
