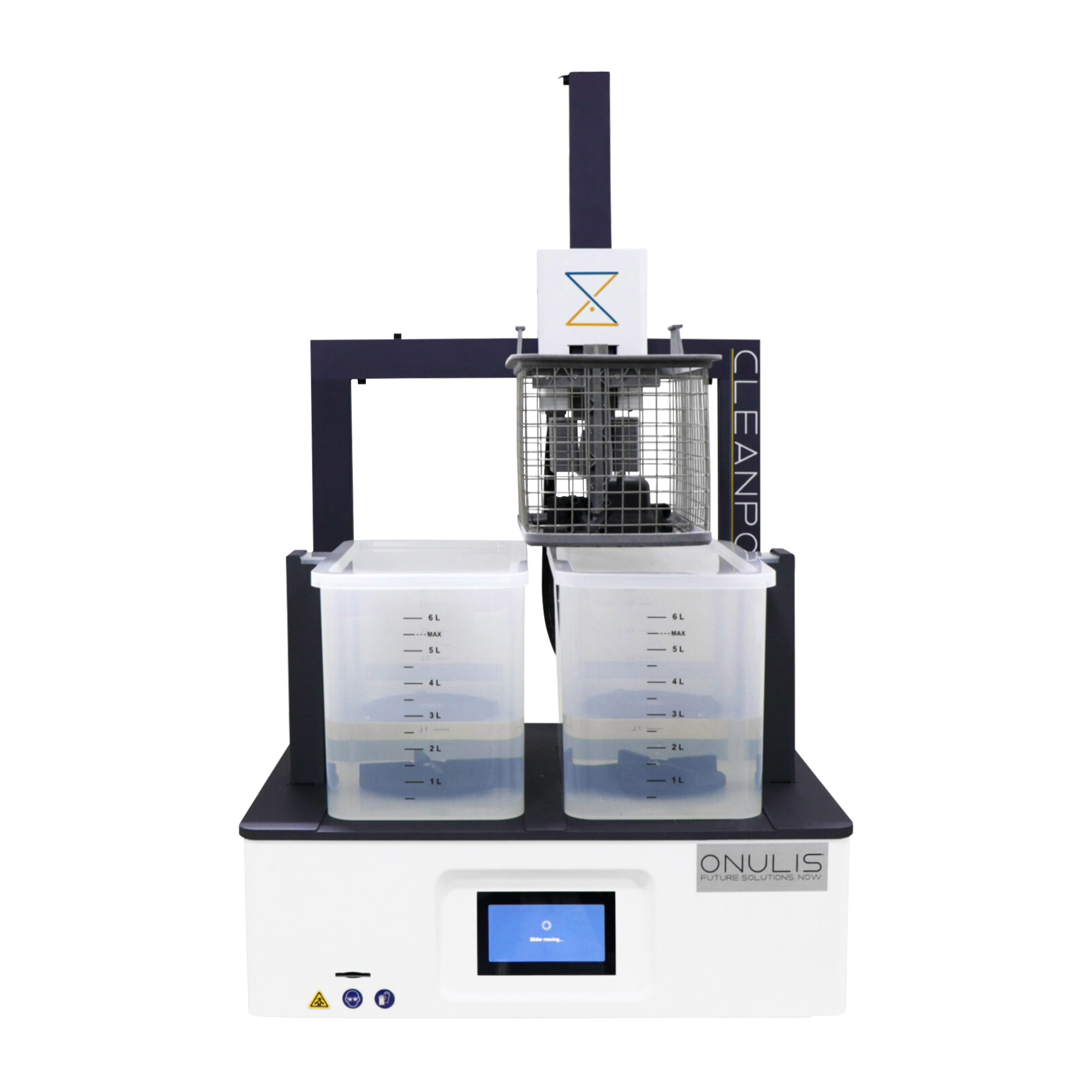

Onulis® CleanPoint™ Automated Wash Station (P3, SLA, DLP, LCD)

Product Description

The Onulis CleanPoint Wash Station makes post-processing 3D printed parts easier than ever with its fully-automated and customizable sequential cleaning features. When 3D printing with P3, SLA, DLP, and LCD technologies, proper washing is essential to cleaning small, delicate details and creating smooth surface finishes. The CleanPoint includes a robotic lift for hands-free operation, pre-programmed and custom wash profiles that provide accurate timing, vortex directional control to switch the direction of solvent flow, tank-specific timing for extra accuracy, and fill level settings that ensure full immersion.

Traditional wash methods for 3D printed resins rely on user-monitored timing and hands-on processes that can lead to inconsistencies and solvent overexposure. If you soak a part too long, it can become can softened, warped, or damaged. If you take it out too soon, a sticky film can develop. CleanPoint users achieve reliable, repeatable results with pre-programmed settings and customizable profiles. Wash times can be adjusted for custom materials or complex parts that require additional cleaning time.

The CleanPoint features a two-tank robotic handling system that keeps everything consistent and hands-free. Simply place your 3D printed parts into the basket, attach the basket to the lift assembly, tap a few buttons, and let the CleanPoint take over. First, the basket is automatically lowered into the primary "dirty" tank, where the majority of uncured resin is stripped away. Next, the basket is transferred to a secondary "clean" tank for a spotless final rinse. When the timing is right, the basket is lifted from the secondary tank, allowing the basket to drain and parts to dry. The CleanPoint is compatible with IPA, TPM, and water-based cleaning detergents and cleans up to a full Origin build size (7.5" × 4.25" × 14.5").

CleanPoint Includes:
• (2) Standard Magnetic Impeller Tanks with Lids
• (2) Parts Cages
• 1 Year of Email Support

Please Note: It is recommended to use a fume hood while operating the CleanPoint.

Features

• Fully-Automated Sequential Cleaning: Simply set the cleaning profile and let the CleanPoint automate the entire wash process.
• Two-Tank Cleaning System: Uses separate “dirty” and “clean” tanks for thorough primary washing and a spotless final rinse.
• Robotic Lift System: Automatically lowers, transfers, and raises the part basket for hands-free operation.
• Pre-Programmed and Custom Wash Profiles: Select recommended settings or create custom profiles for different materials and part geometries.
• Tank-Specific Wash Times: Set individual cleaning times for each tank for more precise processing.
• Vortex Directional Control: Reverses solvent flow direction to improve cleaning around complex features and hard-to-reach areas.
• Adjustable Fill Levels: Helps ensure parts are fully immersed during cleaning.
• Reliable, Repeatable Results: Automated handling and precise timing reduce inconsistencies and the risk of underwashing or solvent overexposure.
• Multiple Solvent Compatibility: Compatible with Isopropyl Alcohol (IPA), TPM, and water-based cleaning detergents.
• Large-Part Capacity: Accommodates parts up to a full Origin build size.
• Broad 3D Printing Compatibility: Designed for parts produced with P3, SLA, DLP, and LCD technologies.

You Also May Need

The Onulis CleanPoint is part of the Onulis workflow, which also includes Thermal Curing, UV Curing, and Resin Recovery machines.

• Try the CrossLink for Thermal Curing.
• Use the WRAP Pro for Resin Recovery and easy waste disposal.
• Upgrade to the WRAP Prime for Resin Recovery plus UV Curing.

Need help deciding what's best for your workflow? Our sales reps are here to assist you. CLICK HERE

Specifications

• Tank Capacity: 6 Liters per tank (Qty 2)
• Tank Size: 6.25 x 10.5 x 7.5 in. (15.9 x 26.7 x 19.1 cm)
• Agitation System: Dual Magnetic Impellers for controlled direction and velocity

• System Dimensions: 18.5 x 14.5 x 36 in. (47 x 36.8 x 91.4 cm)

• System Weight: 40 lbs (18.1 kg)
• Power Requirements: 100-240 V / 50-60 Hz, 0.7 A
• Compatible Solvents: IPA, TPM, Resin Detergents
