Onulis® CrossLink™ Thermal Post-Curing Oven (P3, SLA, DLP, LCD)

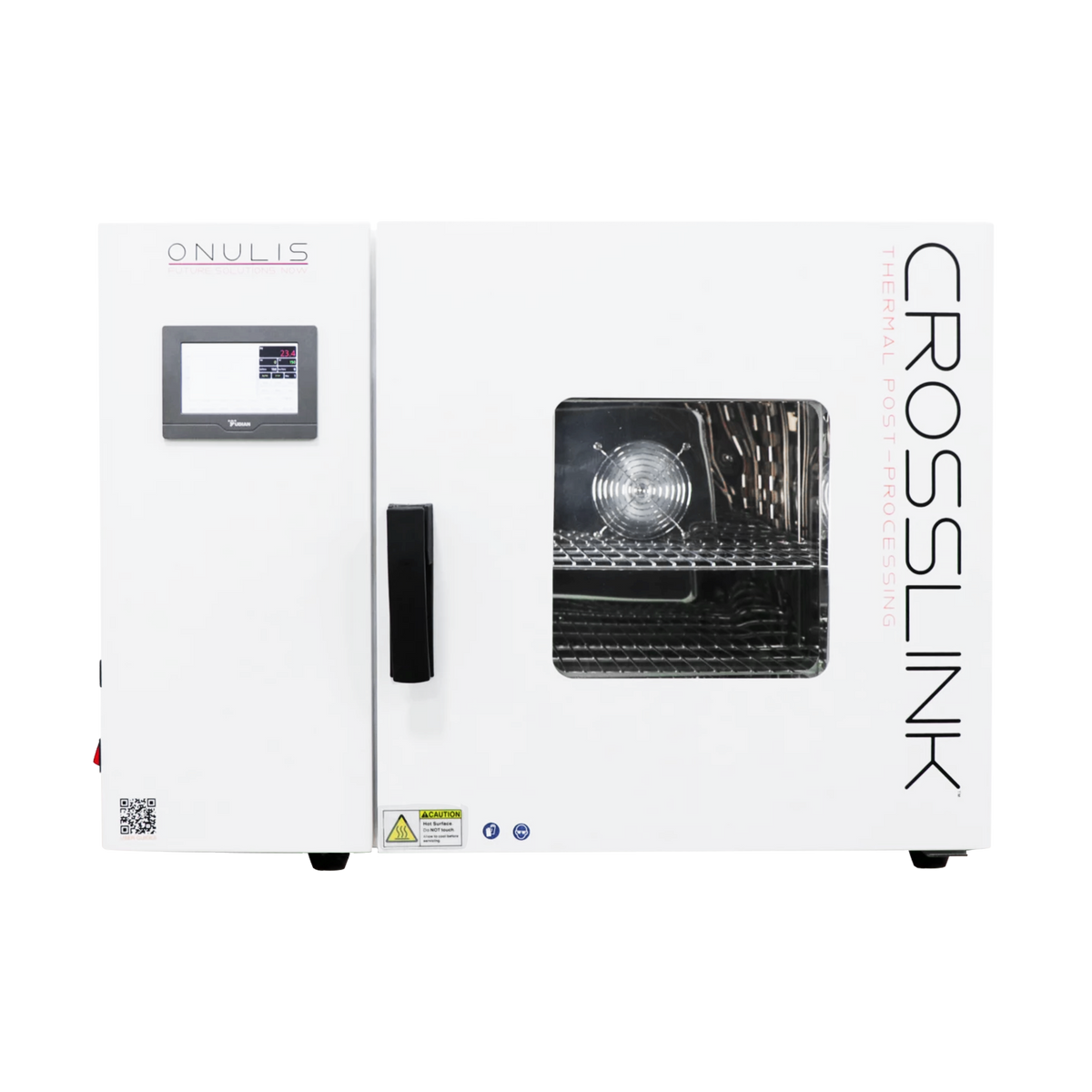

CrossLink Thermal Post-Curing Oven

The Onulis CrossLink is a thermal post-curing station that uses controlled heat to help certain 3D printed photopolymer resins reach their intended mechanical properties. Instead of requiring the operator to calculate temperatures, durations, and thermal ramp times, the system automatically manages the curing cycle, reducing variation across parts and eliminating the need for constant supervision. It lets users create custom settings and includes pre-programmed profiles for validated P3, SLA, DLP, and LCD materials. The CrossLink features built-in carbon air filtration and automatic safety door locks to support cleaner, safer operation.

After washing and UV curing, some 3D printed materials require thermal curing to achieve their true strength, durability, and dimensional stability. The CrossLink operates across a 41°F to 572°F (5°C to 300°C) temperature range and uses forced convection and intelligent PID temperature control to maintain a carefully controlled environment. Instead of curing one part at a time, the 16.5" × 17.7" × 13.8" interior chamber includes two adjustable shelves and the capacity to process several parts within a single cycle.

The CrossLink helps maintain consistent post-processing across operators and production batches. It accommodates multi-step curing profiles, allowing temperature and timing to change at different stages of the curing process rather than using one temperature for a fixed duration. Simply select your material using the Onulis Workflow Guide, choose the corresponding preset program on the touchscreen interface, and start the cycle. Users can also create and save their own custom profiles with temperature setpoints, ramp times, and hold times. The CrossLink provides a clean, hands-off solution for repeatable, engineering-grade results.

CrossLink Features

• Automated Thermal Post-Curing: Automatically manages cure temperatures, durations, and thermal ramp times to reduce manual setup and operator supervision.
• Pre-Programmed Curing Profiles: Includes preset programs for validated 3D printing materials, including P3, SLA, DLP, and LCD resins.
• Custom Curing Profiles: Create and save custom profiles with individual temperature setpoints, ramp times, and hold times.
• Forced Convection Heating: Circulates heated air throughout the chamber to maintain a controlled curing environment.
• Intelligent PID Temperature Control: Continuously regulates chamber temperature for more precise and repeatable thermal processing.
• Built-In Carbon Air Filtration: Helps maintain cleaner operation during thermal post-curing.
• Automatic Safety Door Locks: Keeps the chamber secured during operation for safer processing.

CrossLink Specifications

• Internal Dimensions: 16.5 x 17.7 x 13.8 in. (420 x 450 x 350 mm)
• External Dimensions: 23.6 x 31.1 x 21.5 in. (600 x 790 x 545 mm)
• Interior Volume: 70 L
• Number of Shelves: 2
• Minimum Spacing Between Shelves: 1.9 in. (48 mm)
• Load-Bearing Capacity of Shelves: 33 lb (15 kg)
• Power Requirements: 110 VAC, 11 A, 50–60 Hz
• Weight: 110 lb (50 kg)
• Exterior Housing: Cold-rolled steel plate with electrostatic spray surface
• Insulation Layer: High-quality rock wool board
• Heater: Stainless steel electric heating tube
• Control System: Touch screen, programmable, pre-programmed
• Timer: 0–99 hours or 0–9999 minutes
• Operating Environment (Temperature): (50–86°F) (10–30°C)
• Operating Environment (Humidity): <70%
• Convection Mode: Forced Convection
• Temperature Range: 41-572°F (5-300°C)
• Temperature Fluctuation: ±1 in the range of 122-572°F (50-300°C)
• Temperature Accuracy: 0.18°F (0.1°C)
• Temperature Uniformity: 2%

You Also May Need

The Onulis CrossLink is part of the Onulis workflow, which also includes Washing, UV Curing, and Resin Recovery machines.

• Try the CleanPoint for Automated Washing and Rinsing.
• Use the WRAP Pro for Resin Recovery and easy waste disposal.
• Upgrade to the WRAP Prime for Resin Recovery plus UV Curing.
